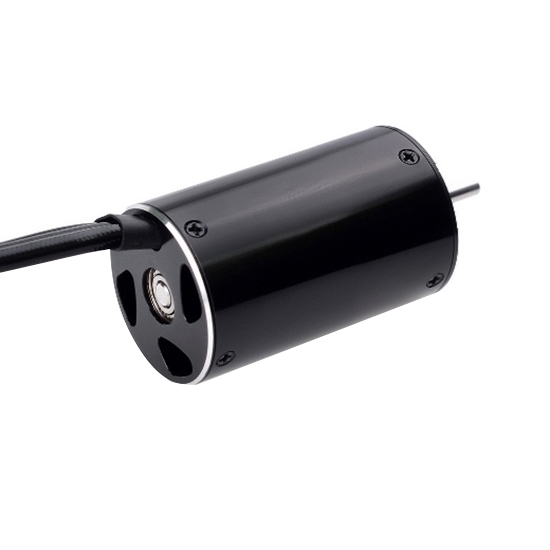

6500KV Brushless RC Boat Motor

Cost-effective 6500KV brushless RC boat motor with 9V Max voltage, Max. power 1400W, Max. current 155A. Waterproof brushless motor for RC boat has advantages of small size, light weight and low noise.

Specifications

• Model: ATO-RB-2958
• Rotational Speed: 6500KV
• Maximum Current: 155A
• Maximum Voltage: 9V
• Maximum Power: 1400W
• Length: 58mm
• Diameter: 29mm
• Winding Method: DELTA
• Number of Turns: 2T
• No-load Current: 4.2A
• Max Seed: 60000KV
• Shaft: 3.175mm
• Number of Rotor Stages: 4
• Weight: 165g

Features

• 4-stage 12-slot high-torque motor design
• CNC machined billet, 6061-T6 aluminum heat sink
• High-purity copper coil for maximum performance
• High-speed ABEC5 oversized bearings
• Highly balanced rotor, high smoothness, accuracy and high speed
• Ultra-thin (0.2mm) stator blades
• Removable/replaceable rotor
• Precision design for maximum energy conversion

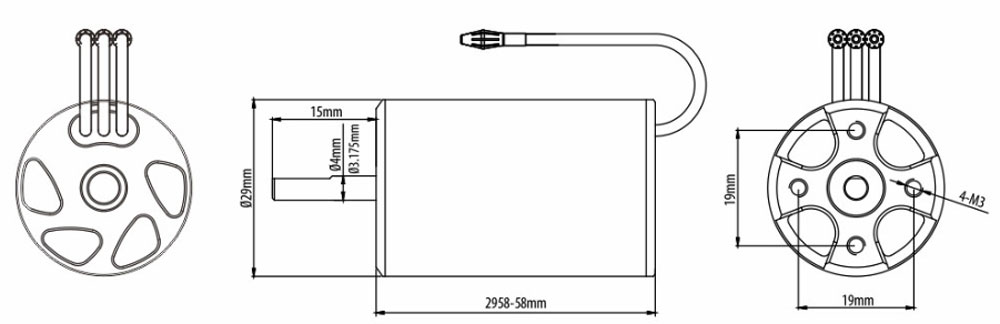

Dimension (Unit: mm)

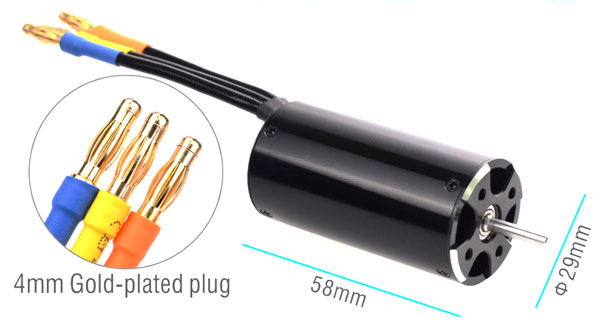

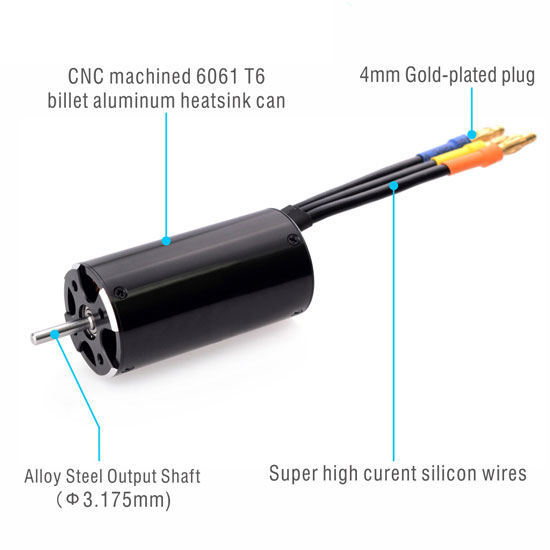

Detail

Tips: How fast do RC boats go?

There are dozens of sleek, well-designed, and powerful RC speed boats that can all hit over 50 mph. And while not strictly true, this does seem to be the upper limit of speed for most RTR (Ready-to-Run) radio control boats.
