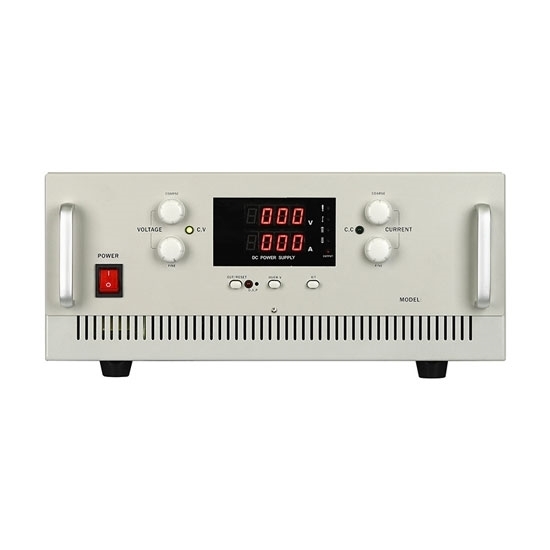

60A 30V 2250W Variable Linear DC Power Supply

5 out of 5 based on 2 reviews | Write a review

$1,796.99

Buy 0 to 30V, 0 to 60A variable linear DC power supply with selectable 110V/220V±10% AC input, 3 digit LED display, 2250W power, CC/CV mode automatic switch, capable of delivering an adjustable output voltage or current. Using a variable DC power supply allows digital or analog control of the power supply output by a control system.

Input Voltage *

SKU: ATO-DCPS3060

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Documents

High precision variable linear DC power supply with adjustable voltage and current slew rate, supplies 0 to 30V DC at up to 60A. It is specially designed for scientific research, product development, laboratories, schools and electronic production lines.

Specification

Model	ATO-JK3060S
Input Voltage	110V or 220V AC (+/- 10%)
Output Voltage Range	0-30V
Output Current Range	0-60A
Output Power	2025W
Frequency	50Hz/60Hz
Output Type	Dual
Display	3 digit
Display Accuracy	≤ ±0.4%＋3d
Voltage Display Resolution	10mV
Current Display Resolution	10mA
Efficiency	>60%
Voltage Regulation
Load Regulation (CV)	1×10^-4+8mV
Line Regulation (CV)	1×10^-4+3mV
Ripple & Noise (P-P)	0.8mV
Temperature Coefficient	300PPｍ/℃
Current Regulation
Load Regulation (CC)	≤5mA
Line Regulation (CC)	2×10^-4+3mV
Temperature Coefficient	500PPｍ/℃
Others
Protection	Over Load and Over Voltage Protection
Operating Ambient	0℃ to + 40℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Certification	CE, RoSH
Warranty	12 Months
Size	530 (W) x 430 (H) x 200 (D) mm
Weight	40kg
Package List	1 x DC Power Supply Host, 1 x Output Power Cord, 1 x User Manual

Details

Details of 60A 30V Adjustable Linear DC Power Supply

Details of 60A 30V Variable Linear DC Power Supply

Tips: Working principle of variable linear DC power supply

The working process of the main circuit of the linear DC power supply is that the input power is first subjected to the preliminary AC voltage stabilization by the pre-regulated circuit, and then converted into the DC power supply through the isolation and rectification of the main working transformer, and then under the intelligent control of the control circuit and the single-chip micro-processing controller finely adjust the linear adjustment element to output a high precision DC voltage source.

Linear DC power supply can be widely used in scientific research, universities, laboratories, industrial and mining enterprises, electrolysis, electroplating and charging equipment.

Linear DC Power Supply User Manual PDF

Existing reviews of 60A 30V 2250W Variable Linear DC Power Supply

60A 30V 2250W Variable Linear DC Power Supply ... Works well!

I highly recommend this power supply. Worked great for the testing performed at the lab. The order shipped on time , packaged very well for shipping overseas and delivered on time.
Highly recommended.

From: Sam | Date: 27/07/2023

Was this review helpful? Yes No (0/0)

60A Linear DC power supply works well.

Purchased this variable linear DC power supply to use for electroforming and it worked great. Love this power supply. Very reliable and high performance. I have been using it for several months now. I highly recommend it.

From: Aaron | Date: 15/04/2022

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for 60A 30V 2250W Variable Linear DC Power Supply

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Customers who bought this item also bought

100A 60V 6000W Variable Linear DC Power Supply

$5,298.99

SKU: ATO-DCPS60100

Variable linear DC power supply uses a large transformer to drop voltage from AC to DC, with selectable 220V/240V±10% AC input, 3 digit LED display, 6000W power, adjustable current 0 to 100A, voltage 0 to 60V. Using a variable DC power supply allows digital or analog control of the power supply output by a control system.

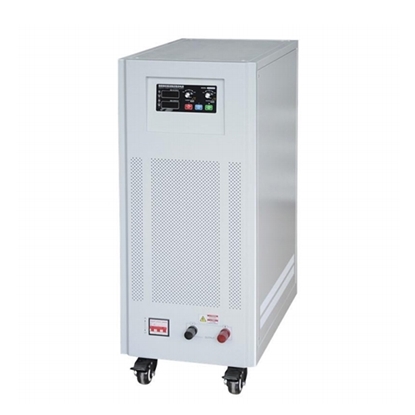

50A 60V 3000W Variable Linear DC Power Supply
