    Red 5V LED Indicator Light
    Picture of Red 5V LED Indicator Light
    Picture of Red 5V LED Indicator Light
    Picture of Red 5V LED Indicator Light
    Picture of Red 5V LED Indicator Light

    Red 5V LED Indicator Light

    5 out of 5 based on 5 reviews | Write a review
    $33.93
    Low cost 5V led indicator light, rated voltage 5V AC/DC, waterproof IP40, solid color high brightness LED chip, protect eyes, color red, yellow, blue, green and white optional, voltage of indicator light can be customized.
    *
    SKU: ATO-IL-5V
    This product has a minimum quantity of 2
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price sale round LED indicator light, red color, 5V AC/DC rated voltage 20mA, easy to use, LED display, a variety of colors are available, other voltages can be customized. It is compact in size and has a simpler connection between the operating parts and switch components, ensuring the product's service life and reliability while making installation more convenient.

    Specification

    Model ATO-AD56-22DS
    Hole Size M22mm
    Voltage 5V AC/DC
    Color Red, green, blue, yellow, white
    Protection Class IP40
    Contact Resistance ≤ 50mΩ
    Insulation Resistance ≥ 2MΩ
    Allow voltage fluctuations ±10%
    Usage frequency AC50-60Hz
    Material Solid color high brightness LED chip
    Operating Temperature -25℃~+55℃
    Working Humidity ≤98% RH
    Class of Pollution Ⅲ
    Continuous working life ≥30000 times
    Weight 25g

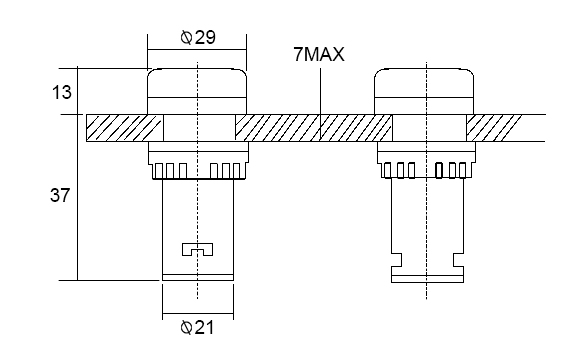

    Red Led Indicator Light Dimension (unit: mm)

    Dimensions of indicater light

    Commodity information

    Commodity information of indicater light

    Tips for using indicator light

    Please use within the electrical rating. If it is used beyond the rated value, it will not only shorten the durability of the switch, but may also cause dangers such as heat generation and burnout, including the instantaneous voltage during opening and closing. Please use the current within the range of rated voltage and rated current.
