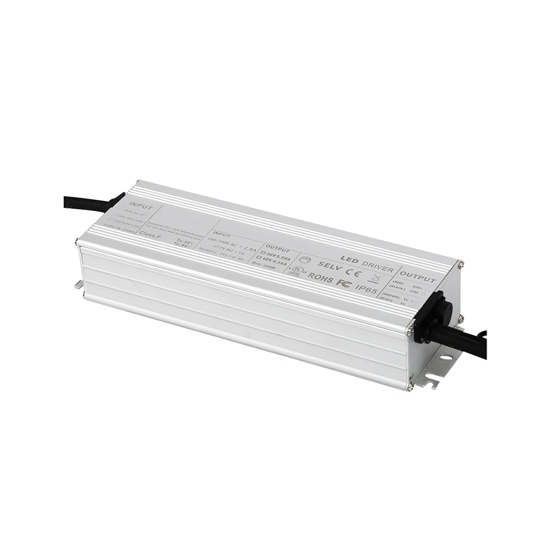

500W 24V/36V/48V Constant Voltage LED Driver

Buy a 500W LED driver at low price. It is a 24V/36V/48V constant voltage LED power supply with 100~277V AC input voltage and 20.83A/13.88A/10.41A output current, which can be used for outdoor lighting such as landscape and road lighting.

Specifications

• Model: ATO-TBW-HYGP500
• Input Voltage: 100~277V AC
• Output Power: 500W
• Output Voltage: 24V/36V/48V
• Output Current: 20.83A/13.88A/10.41A
• Mode: Constant Voltage
• Dimming: Three-in-one Dimming (0-10V Dimming, PWM Dimming, Resistor dimming) and Rotate Dimming (24V without Dimming Function)
• Size: 266mmx89mmx44mm
• Efficiency: 94%
• Power Factor: 0.95
• Waterproof Grade: IP65/IP67
• Applications: Bio-Lighting, Industrial Equipment, Poultry, Led Strip Light, Landscape Lighting

Dimension (Unit: mm)

Applications

24V/36V/48V LED power supplies are commonly used in various scenarios such as commercial and residential lighting installations, architectural lighting designs, outdoor and landscape lighting, signage and display boards, automotive lighting systems, horticultural lighting for indoor farming or plant growth, and LED strip lighting. The constant voltage output ensures consistent brightness, uniform illumination, and proper functioning of the LEDs, enabling energy-efficient and long-lasting lighting solutions in diverse applications.

Tips: Do constant voltage LED drivers support dimming?

Yes, this constant voltage LED driver is designed to support dimming functionalities. Dimmable LED drivers allow users to adjust the brightness of the connected LEDs, offering flexibility in lighting control. Dimmable constant voltage LED power supplies are commonly used in various applications, including residential, commercial, and architectural lighting, where the ability to adjust light levels enhances ambiance, energy efficiency, and overall lighting versatility.
