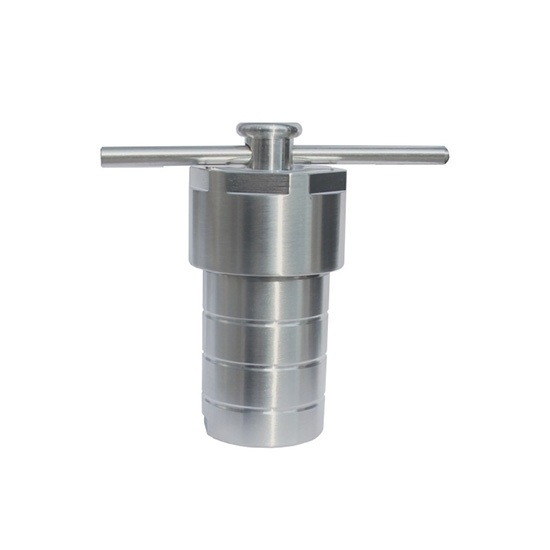

500ml Hydrothermal Synthesis Reactor, Stainless Steel

Hydrothermal synthesis reactor is a kind of closed container which can decompose insoluble substances. It can be used for low dose synthesis reaction.

Features:

• Thickening processing PTFE cover, not easy to soften.
• Beautiful appearance, reasonable structure and easy to operate.
• With PTFE liner, double care, acid and alkali, resistant to high temperature of 200 ℃.

Specification:

• Model: ATO-KH-500
• Capacity: 500ml
• Material: 304 stanless steel, PTFE chamber
• Maximun Pressure: 3 MPa
• Safe Working Temperatue: 200 ℃
• Heating and Cooling Rate: ≤5 ℃/min

Structure:

Application:

Tips: Hydrothermal Synthesis Reactor Troubleshooting

• Leaking. If you notice leaking from the reactor, first check the O-rings or gaskets for damage or wear. Replace them if necessary. Ensure that the reactor is properly sealed and that all connections are tight.
• Temperature control issues. If you are experiencing temperature control problems, check the temperature sensor for accuracy and proper placement. Ensure that the heating and cooling systems are functioning properly and that the temperature controller settings are correctly configured. If the temperature is not reaching the desired level, check for any blockages in the heater or temperature control lines.
• Reactor not sealing properly. If you are having trouble sealing the reactor, check for debris or contaminants on the sealing surfaces.
