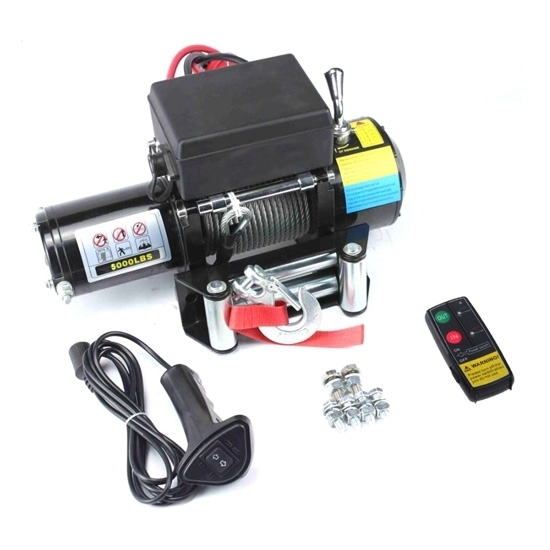

5000 lbs 12V/24V ATV 4x4 Electric Winch Kit includes everything you need to start winching, including a set of wired and wireless remote controller tools, control box, cable steel, hook, and roller fairlead to offer you an excellent working performance. This upgrade winch is the perfect match for the off-roader and trucks in any situation with its high-quality and sturdy structure, powerful motor, and wireless remote control.
Features
- High efficiency permanent magnet 1.9kW/2.6hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
- 5000 lbs pull capacity electric winch for ATV/UTV with compact structure and cheap price.
- Equipped with a gear reduction ratio of 235:1 and 3 stage planetary gear train to born with stronger pulling capacity.
- Dual remote control mode, wired remote control and wireless remote control.
- Free spooling with sliding ring gear, easy to operate.
- Designed to keep dust and water out with an IP67 waterproof rating.
- It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
- 100% testing on winch pulling capacity and function before shipping.
Specifications
Model |
ATO-5000LB |
Single Line Rated Pull |
5000 lbs (2268kgs) |
Voltage |
12V/24V DC (Optional) |
Motor |
Permanent magnet, 1.9kW/2.6hp |
Gear Ratio |
235:1 |
Gear Train |
3 stage planetary |
Control |
Remote switch, 9.8ft (3.0m) lead (Supports wired remote control and wireless remote control) |
Clutch |
Sliding ring gear |
Cable (Dia x L) |
Ø0.25" (6.4mm) × 787.4" (20m) |
Drum Size (Dia x L) |
Ø2.5" (64mm) × 5.3" (133.5mm) |
Fairlead |
4-way roller fairlead |
Braking Action |
Automatic In-The-Drum |
Overall Dimensions (L x W x H) |
16.3" x 6.3" x 8.5" (415mm × 160mm × 217mm) |
Mounting Bolt Pattern |
165mm*114mm, Ø11 |
Protection Grade |
IP67 |
Weight |
33kg |
Packing Size |
610 x 350 x 270mm |
Package Included |
1 x 5000 lbs ATV winch 1 x Clevis hook 1 x Control box 1 x Wired remote controller 1 x Wireless remote controller 1 x 4-way roller fairlead 1 x Universal mounting plate 1 x Winch cable 1 x Set of bolts 1 x User manual |
Parameters of Line Pull, Speed and Current at 12 Volt
Line Pull (lbs) / (kgs) |
Line Speed (ft/min) / (m/min) |
Current (A) |
0 |
9.8 / (3.0) |
30 |
1000 / (454) |
8.9 / (2.7) |
80 |
2000 / (907) |
7.5 / (2.3) |
120 |
3000 / (1361) |
6.2 / (1.9) |
160 |
4000 / (1841) |
4.9 / (1.5) |
210 |
5000 / (2268) |
3.9 / (1.2) |
260 |
Line Pull and Rope Capacity in Layer
Layer |
Rated Line Pull (lbs) / (kgs) |
Total Rope on Drum (ft) / (m) |
1 |
5000 / (2268) |
15 / (4.6) |
2 |
4200 / (1905) |
20 / (8) |
3 |
3700 / (1678) |
43 / (13) |
4 |
3200 / (1451) |
62 / (19) |
5 |
2800 / (1311) |
66 / (20) |
Tips: How to fix the fulcrum before dragging the vehicle?
If you want to pull the car forward, there must be a safe place to fix the fulcrum, and the fulcrum must be able to bear the full weight of the car. The most basic principle is to pull directly in front of the car without angle. In off-road driving, the most commonly used fulcrum is the tree. However, if you use an electric winch to rescue another trapped vehicle, the rescue vehicle can also be used as a fulcrum, but in this case, you must block the wheel so that it cannot roll, that is, ensure that the rescue vehicle will not move.
No matter what type of electric winch is used, its potential cannot be fully realized without a safe fulcrum. That said, fixing the fulcrum is a crucial step when using a winch.
When using a winch, you also need a strap to connect the winch, fulcrum, noose hook and U-shaped lifting ears. If the winch does not have enough power to drag a heavy object with a single wire, it needs to be strengthened with a double wire. At this time, a tight-line pulley is also needed.
It is also important to note that when using a tree as a fulcrum, use the widest part of the strap to prevent the strap from getting into the bark and destroy the tree. Be sure to tie the left and right ends of the strap to the sides of the ears respectively The straps should be the same length.
