    5 hp (3.7 kW) AC Line Reactor, 3 Phase Input

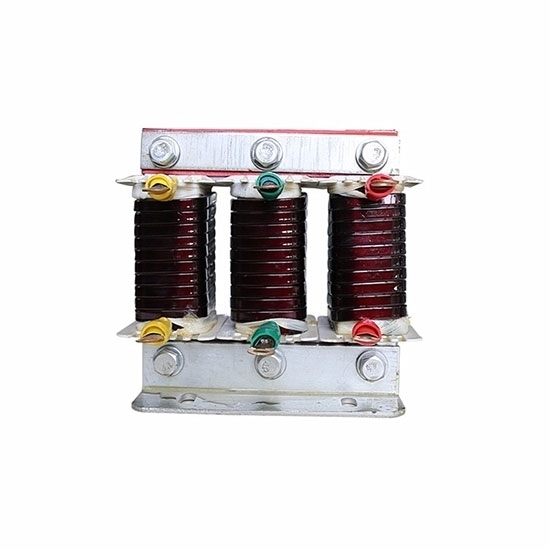

    Picture of 5 hp (3.7 kW) AC Line Reactor, 3 Phase Input
    Picture of 5 hp (3.7 kW) AC Line Reactor, 3 Phase Input

    5 hp (3.7 kW) AC Line Reactor, 3 Phase Input

    5 out of 5 based on 1 reviews | Write a review
    $272.89
    Low price 5 hp AC line reactor for sale, with 10A current, 3 phase input, voltage 380V, 400V, 440V, 460V and 480V for selection, vfd line reactor direct sales by manufacturer, small size and light weight.
    *
    *
    SKU: ATO-ILR-3d7
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    3.7 kW AC line reactor for VFD, 10A rated current, 3 phase input, 50Hz/60Hz operating frequency. This is a high performance and high reliability input reactor with multiple choices, not only full set accessories but also low price.

    5 hp Input Line Reactor Specifications

    Basic Model ATOACR-0010-1M40-0.4SC
    Recommended VFD Model GK3000-4T0037G (5 hp three phase VFD)
    Phase 3 Phase
    Power 5 hp (3.7 kW)
    Weight 2.8 kg
    Technical Parameters Work Valtage 380V (optional: 220V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
    Work Frequency 50Hz/60 Hz
    Rated Current 10 A
    Max Current 1.5 Times the Rated Current, Continued 60s
    Inductance Value 1.4 mH
    Material Aluminium/Copper (Optional)
    Voltage Drop 2%
    Noise ≤65dB
    Insulation Class Class F, H
    Protection Class IP00-IP22
    Insulation Resistor ≥100MΩ
    Working Environment Operation Environment -10℃~+45℃
    Temperature Rise ≤85K
    Humidity ≤90%RH, without condensation
    Running Ambient Temperature -25℃~+45℃
    Altittude ≤2000m

    5 hp Input Line Reactor Size & Circuit Diagram

    ac reactor sizecircuit diagram

    Dimension (±5mm)
    L D W W1 H A×B
    115mm 90mm 95mm 68mm 135mm 6×11

    Tips: What about burnout of line reactor?

    If the concrete column of AC input line reactor and porcelain support insulator crack or some coils of electric reactor burn out, check whether relay protection functions. If relay protection doesn’t function, disconnect the power supply of input line reactor manually, stop faulted input line reactor and start the standby input line reactor.

    Existing reviews of 5 hp (3.7 kW) AC Line Reactor, 3 Phase Input
    Does this VFD have PID control capability?
    I ordered 'ATO 5 hp 3.7 kW VFD, 3 Phase 480V High Performance Vector Variable Frequency Drive, IP20 Enclosure, RS485 Enabled' from Amazon. Does this VFD have PID control capability?
    From: Leila | Date: 05/09/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our VFD supports PID control function, you can refer to this demo video:
    https://www.youtube.com/watch?v=OKR4tX4x0qQ&list=PLlo8RulDRnthBFbP4ydheukDSKw2hAfDn&index=5
    Load more reviews...
    Write your review for 5 hp (3.7 kW) AC Line Reactor, 3 Phase Input
    • Only registered users can write reviews
    • Bad
    • Excellent
