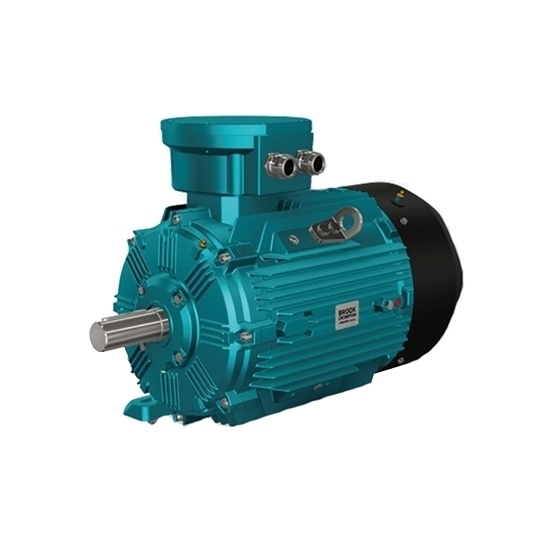

5.5hp (4kW) Explosion Proof Motor, 380V, 2P/ 3P/ 4P

Write a review

$1,269.68

Competitive flameproof motor online for sale. 4kW explosion proof motor 380V rated voltage (380V-660V can be customized), 2P/ 3P/ 4P can be chosen. This type of induction motor is widely used in sectors such as textiles, metallurgy, city gas, transportation, grain and oil processing, papermaking, and medicine.

Number of Poles *
Installing Form *

SKU: ATO-WEX3-112M

Qty:

30-day Returns

Free Shipping

Delivery date: 10-12 days

Overview
Related Video

5.5hp three phase explosion proof motor with B3/ B5/ B35 three mounting types for selection. Three phase explosion proof motor with 50Hz rated frequency, IP55 enclosure, ≤1000m altitude, "Δ" connection.

Specification

Model	ATO-WEX3-112M
Numbers of poles	2P/ 4P/ 6P
Synchronous speed	3000r/min/ 1500r/min/ 1000r/min
Mounting types	B3/ B5/ B35
Rated power	5.5hp (4kW)
Rated voltage	380V (380V-660V can be customized)
Frequency	50Hz
Duty	S1
Ambient temperature	-20℃~40℃
Altitude	≤1000m
Humidity	≤90%
Terminal box position	Top
Type of cable entry	Cable grand
Enclosure	IP55
Inverter operation	Inverter use ready up to 500V acc
Insulation	Class F
Cooling type	IC411
Shaft key	Type A
Lubrication	Sealed
Connectiom	"Y" connection
Fan material	Engineered plastic
Rotation direction	Clockwise rotation at drive end
Winding temperature measurement	Thermistors (PTC)
Anti-corrosion grade	C3
Certificates	IEC, EX, ATEX
Explosion-proof mark	Ex d I Mb, Ex d ⅡB T4 Gb, Ex d ⅡC T4 Gb
Warranty	12 months

Dimensions (mm)

Mounting type	Frame size	Mounting dimensions(mm)													Outline dimensions (mm)
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	HD		L
		A	A/2	B	C	H	n	K	M	N	P	R	S	T	AA		EV		LA	AB		BB		HA		AC	Ex db eb	Ex db	L
B3	112M	190	95	140	70	112	4	12	-	-	-	-	-	-	45	47	17	17.5	-	228	235	210	175	15	17	225	323	329	485
B35		190	95	140	70	112	4	12	215	180	250	0	14.5	4	45	47	17	17.5	13	228	235	210	175	15	17	225	323	329	485
B5		-	-	-	-	112	-	-	215	180	250	0	14.5	4	-	-	-	-	13	-	-	-	-	-	-	225	336	342	485

Frame size	Shaft (mm)
Frame size	D	E	F	GA	DB
112M	28	60	8	31	M10*22

Details

Tips: Types of Explosion Proof Motor.

Dust explosion-proof motor: refers to its shell is designed and manufactured according to the specified conditions, which can prevent dust from entering the motor shell or although it cannot completely prevent the dust from entering, the amount of entry does not hinder the safe operation of the motor, and the accumulation of internal dust is not easy to cause an ignition hazard. It will not cause the surrounding explosive dust mixture to explode the motor.
Features:
1. The enclosure has a high degree of airtightness to reduce or prevent dust from entering the enclosure. Even if it enters, the amount of entry will not cause an ignition hazard.
2. Control the allowable temperature of the highest surface of the enclosure not to exceed the specified temperature group.
