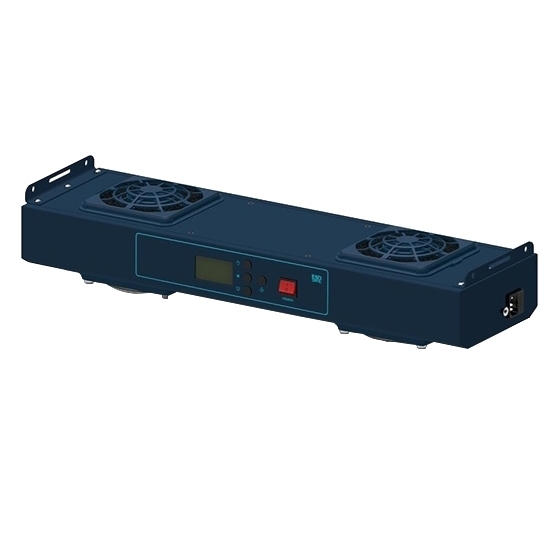

45W Static Eliminator, AC 110 ~ 230V / 50Hz

45W static eliminator with 70 × 90cm² capacity, operating temp with -5~ 45℃. External dimension of 700 (L) × 210 (W) ×180 (H)mm. The DC ion fan has several advantages: high power efficiency and stable voltage balance.

Application:

ATO static eliminator is used to eliminate the static electricity generated by human body, instrument equipment, sensitive electronic components, etc. it is designed and manufactured for effective electrostatic elimination and electrostatic protection, and is suitable for other electrostatic protection places such as anti-static dust-free workshop, electronic warehouse, laboratory and so on.

Features:

1. Low power consumption and high efficiency: The DC ion fan has a full load working efficiency of 20W, only equivalent to the power of a small energy-saving lamp.
2. Stable voltage balance performance: At the test distance (30m), the antistatic ion balance of the DC fan can reach within 0+5V (grade A), which is the highest level of antistatic ability.
3. This ion fan has a strong antistatic ability, which can eliminate 1kV static electricity to less than 100V within 1 second.
4. This ion fan is used to eliminate static electricity generated by the human body, equipment, sensitive electronic components, etc.

Specification:

Static Test Result:

Note: The test results will vary due to the humidity and cleanliness of the test environment time to eliminate static electricity ( without dust-proof net ).

Tips: What is 45W static eliminator structural design like?

• The front cover of the product body adopts a double-layer detection and isolation design, which can truly andstably detect unbalanced voltage and isolate external interference source signals
• The internal design of the machine adopts the front-mounted DC fan and layout of the rear-mounted high-voltage launcher.This design allows the positive and negative ions of high-voltage ionization to be fullymixed by the fan to have a better effect of eliminating static electricity.
• The rear cover of the fuselage adopts a spring buckle protection design, which can easily disassemble the protective cover and instantly clean the high-pressure launch needle and fan blades.
