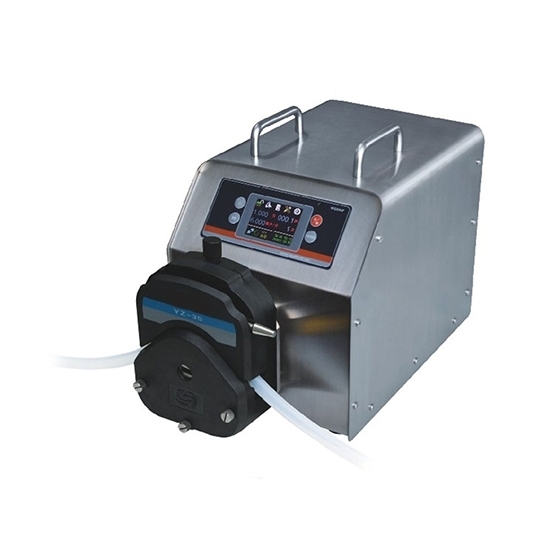

    400W 4900 GPD Industrial Peristaltic Pump

    $4,242.92
    Buy 4900 GPD industrial peristaltic pump from reliable manufacturer. Flow rate range 100~13000 mL/min, maximum speed 600 rpm, rated voltage 110V/220V, motor power 400W, hose inner diameter 9.6mm/12.7mm for selection, pump head 1 or 2. Affordable price industrial peristaltic pump transmits large volume or split-charging liquid.
    *
    *
    *
    *
    *
    SKU: ATO-IPP-49004
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Industrial peristaltic dosing pump for sale, which is driven by 400W brushless DC motor, optional voltage 220V/110V. Maximum flow rate 4900 GPD (13000 mL/min). Supports RS485 communication interface and MODBUS protocol, easy to connect with other control equipment such as computer, man-machine interface, PLC, etc. The industrial metering pump is suitable for precise high-flow transmission and split-charging liquids in industrial sites.

    Specification

    Model ATO-WG600F
    Water Flow Rate mL/min 100~13000
    GPD (gallon/day) 38~4900
    Speed Range 0.1~600 rpm
    Speed Resolution 0.1 rpm
    Speed Accuracy Error <±0.2%
    Working Mode Flow mode, liquid volume distribution, time distribution, copy distribution
    Volume Distribution Range 100mL~9999L
    Number of Distribution 1-999 times, 0 is infinite loop
    Distribution Interval 0.1-999 seconds/minute/hour
    Power Supply AC 220V ±10%, 50Hz/60Hz
    AC 110V ±10%, 50Hz/60Hz
    Motor Power <400W
    External Control Interface External control input level 5V/12V/24V
    External control analog quantity 0-5V/0-10V/4-20mA
    External Control Digital Communication Interface RS485 communication, supports MODBUS protocol
    Working Environment Ambient temperature 0~40℃, relative humidity <80%
    Protection Grade IP31
    Weight 15kg

    Features

    1. Industrial peristaltic pump is driven by brushless servo motor, with strong power, precise control, and maintenance-free.
    2. Industrial peristaltic pump uses LF-Touch-OS software system. Color LCD display, touch screen plus key operation. Flow display, flow adjustment, cumulative liquid volume display.
    3. Industrial peristaltic pump has 3 working modes: liquid distribution, time distribution, and copy distribution. 5 groups of distribution specifications can be pre-stored in the 3 distribution modes.
    4. Guided flow correction function and infrared remote control function.
    5. Industrial peristaltic pump has super anti-interference characteristics and is suitable for complex power supply environment.
    6. 5V, 12V, 24V level input is optional. The external analog quantity controls the flow.

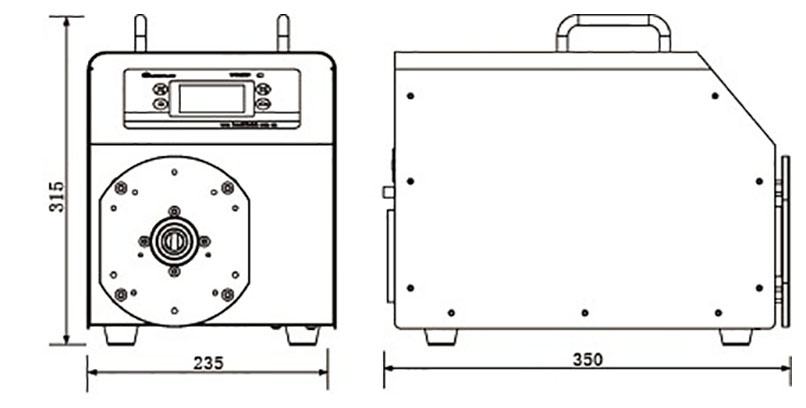

    4900 GPD Industrial Peristaltic Pump Dimensions Drawing (Unit: mm)

    Dimensions of 400W 4900 GPD Industrial Peristaltic Pump

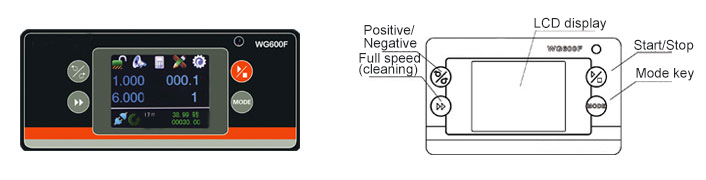

    4900 GPD Industrial Peristaltic Pump Panel Details

    Panel of 400W 4900 GPD Industrial Peristaltic Pump

    4900 GPD Industrial Peristaltic Pump Hose Specification (Unit: mm)

    Model Inner Diameter Outer Diameter Wall Thickness
    73# 9.6 16.2 3.3
    82# 12.7 19.3 3.3

    Tips: How to determine the flow of industrial peristaltic pump?

    1. Flow rate of the industrial peristaltic pump is usually determined according to the process required by the application. In the case of meeting the process requirements, the median value of requirements is taken. The demand flow value should not be selected too high. Although a high flow can increase the speed of liquid, it is likely to require a larger industrial peristaltic pump to meet it. As a result, the volume of peristaltic pump will increase, the power will increase, and the cost will increase. If the demand flow value is too low, it may take longer to complete the liquid injection, and the efficiency cannot be satisfied.
    2. The demand flow rate shall be affected by related parameters. Such as the loss of flow when the viscosity and specific gravity of liquid are large. Also consider the flow loss caused by the increase in lift, suction and decrease in temperature. According to the amount of loss, an industrial peristaltic pump with a larger flow is appropriately selected. If the relevant specifications are too different from the clean water, it is needs to test them through experiments to get an accurate reference flow rate.

    Explained the working principle

    This video tells us what a peristaltic pump is and its working principle, and you will have a rough understanding of it.

    Enhancing peristaltic pump efficiency

    This video is about how to improve the efficiency of peristaltic pumps.

    Functions and selection methods

    This video introduces the functions and selection methods of peristaltic pumps, allowing you to choose different types of peristaltic pumps according to your own needs.
