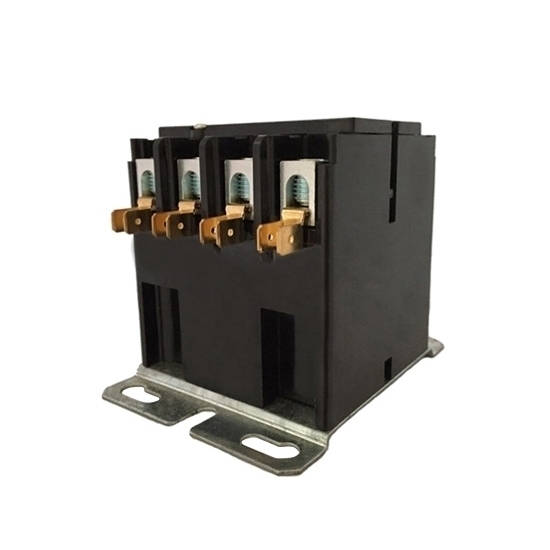

4 Pole Definite Purpose Contactor, 20 amp ~ 40 amp

5 out of 5 based on 9 reviews | Write a review

$69.30

Get a high performance 4 pole definite purpose contactor at low price. It has 24V, 110V/120V, 208V/240V, 277V coil voltage. 20 amp / 25 amp / 30 amp / 40 amp air conditioner contactor is an electronically controlled switch that is used for switching a power circuit. AC contactor works at 50/60Hz, designed for the heating, ventilation, air conditioning and refrigeration (HVAC) industry.

Current *
Coil Voltage(V) *

SKU: ATO-DPC-4P

This product has a minimum quantity of 100

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview
Related Video

4 pole definite purpose contactor is ac contactor that has 24V, 110V/120V, 208V/240V, 277V coil voltage and wide current range 20 amp ~ 40 amp. HVAC contactor provides compact load control and is ideal for motors and compressors in resistance heating, air conditioning and refrigeration, and food service equipment.

Features

DP contactor has a wide current range (from 25 A to 40 A)
Standard AC operating coil ranges for control circuit applications: 24V, 120V, 208-240V, and 277V.
1 pole, 2 pole, 3 pole and 4 pole definite purpose contactors are available.
Various contact configurations from 1 pole to 4 pole.
UL certification, CSA certification.

Specifications

Model	ATO-XKJL1-4P
Pole	4
Coil Voltage	24V, 110V/120V, 208V/240V, 277V AC
Hertz	50/60 Hz
Temperature Range:	- 40°F to + 150° F / - 40°C to + 65° C
Mechanical Life	1, 000, 000 times
Electrical Life	250, 000 times
Certificate	UL/CSA/Ce/S Mark/CCC

Technical Parameter

Model	FLA (A)	LRA (A)	LRA (A)	LRA (A)	LRA (A)	Phase	Resistive Amps Rating
Model	FLA (A)	480V AC	600V AC	277V AC	240V AC	Phase	270V AC
ATO-XKJL1-4P	20	100	80	120	120	3	30
	25	125	100	150	150	3	35
	30	150	120	180	180	3	40
	40	200	160	240	240	3	50

4 Pole FLA Definite Purpose Contactor Dimension (Unit: mm)

Tips: A brief introduction to AC contactors

The contactor is an electromagnetic automatic switch. It is used for frequent motor starting and remote control, making the operation safer and more convenient. The contactor is one of the main low-voltage electrical appliances with more applications. According to the operating power, it can be divided into two categories: DC and AC. The two types of structures are roughly the same.

The AC contactor is a fully automatic control electrical appliance. Its main control object is the motor, and it is also widely used to control other electrical loads, such as electric welding machines, capacitors, electric heaters, lighting units, etc. Definite purpose contactor is a popular ac contactor.

Existing reviews of 4 Pole Definite Purpose Contactor, 20 amp ~ 40 amp

Reasonable price

This 4-pole DP contactor is a good replacement for most A/C contactors. Be sure to turn off the main circuit breaker before installation.

From: Aaron | Date: 30/10/2022
