4" Electric Wafer Butterfly Valve

Write a review

$716.89

Cost-effective price 4 inch (DN100) electric butterfly valve comes with a double acting electric actuator to work, selectable 110V AC, 220V AC, 380V AC, 24V DC power supply. Cast iron or PVC body, stainless steel or UPVC disc and EPDM seat, working at -10 °C to 120 °C. This electrically operated butterfly valve is a reliable device for air and flow control.

Butterfly Valve Type *
Power Supply *

SKU: ATO-EBV-100WF

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

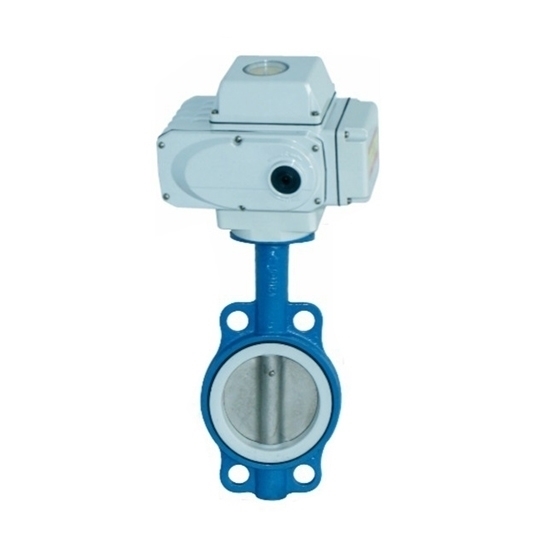

Factory price 4 inch electric butterfly valve is equipped with an aluminum alloy electric actuator to work. Our electric actuated butterfly valve can work at high temperature below 120 °C, which is a reliable device for flow control.

Specification

Butterfly Valve	Model	ATO-EBV-100WF
	Media	Water, Air, Gas, Oil, Liquid, etc.
	Butterfly Valve Type	Wafer Type	PVC Type
	Port Size	4 inch (DN100, 100mm)
	Body Material	Cast Iron	PVC
	Disc Material	Stainless Steel (SS)	UPVC
	Seat Material	EPDM
	Working Temperature	-10 °C to 120 °C
Electric Actuator	Model	ATO-KLST-10
	Frequency	50/ 60Hz
	Power Supply (Optional)	110V AC, 220V AC, 380V AC, 24V DC
	Actuator Input	4-20mA DC
	Actuator Type	Double Acting
	Output Torque & Response Time	50N.m, 13s/ 15s 60N.m, 20s 100N.m, 30s
	Actuator Material	Aluminum Alloy

Wafer Butterfly Valve Body Dimension (Unit: mm)

Electric wafer style butterfly valve dimension

DN	L	H1	H2	A	D	D1	N-φd
100	52	114	344	198	185	156	4-24.5

PVC Butterfly Valve Body Dimension (Unit: mm)

Electric PVC butterfly valve dimension

JIS		ANSI		DIN		D	D2	D3	H2	H3	W1	W2	d1	D4	S	H1	L
D1	n-φe	D1	n-φe	D1	n-φe
175	8-19	190.5	8-19	180	8-18	228	102.5	135	135.5	13	54	40	8.5	70	17	295	198

Details

Tips: What are the components of electric actuated butterfly valve?

Electric actuated butterfly valve is mainly composed of valve body, sleeve, valve disc, valve stem and other parts. There are orifices on the sleeve and the valve disc, and the flow and flow can be adjusted through the valve disc on the valve seat. Equipped with electric angle travel actuator, it can be realized and controlled automatically. Electric butterfly valves are widely used to regulate the flow of water supply pipelines and oil pipelines.

The internal heat generated by the motor operation of the electric butterfly valve will provide thermal protection and stop the operation of the electric butterfly valve; since the motor can only output torque after multi-stage deceleration, the operation speed is not very fast, and it is not suitable for some fast switching. The contradiction between high torque and high speed is difficult to resolve.
