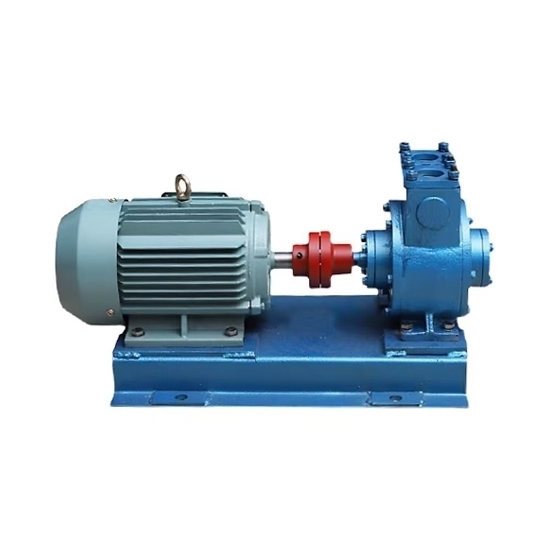

4 HP (3 kW) Sliding Vane Pump, 380V

The 4 hp sliding vane pump consists of a cylindrical casing with an eccentrically mounted rotor inside. The rotor has slots that house vanes, which are free to slide in and out of the rotor. Vane type pump is commonly used in applications requiring reliable and efficient fluid transfer, such as fuel delivery, lubrication systems, and chemical processing.

Features:

• Slide pump has a strong self-priming capacity.
• Mechanical seal with special structure is safe, durable and reliable.
• Pump vane by centrifugal force, mechanical thrust, hydraulic pressure combined action, so that the pump has a unique high efficiency.

Specification:

• Model: ATO-50YPB-12
• Voltage: 380V
• Power: 4 HP (3 kW)
• Capacity: 12 m³/h
• Pressure: 0.4 MPa
• Rotate Speed: 1450 r/min
• Self-priming Height: 6.5m

Structure:

Application:

Tips: How to Maintain Sliding Vane Pump?

• Inspect and clean the pump regularly. Regularly inspect the pump for any signs of wear, damage, or debris. Clean the pump and its components, including the vanes, rotor, and pump housing, as needed.
• Check and replace worn parts. Pay attention to the vanes, which are critical components of a sliding vane pump. Inspect them regularly for wear and replace them when necessary. Replace any other worn or damaged parts, such as seals, bearings, and gaskets, to prevent leakage and maintain optimal performance.
• Monitor pump performance. Regularly monitor the pump's performance, including flow rate, pressure, and temperature, to ensure it is operating within its design parameters.
