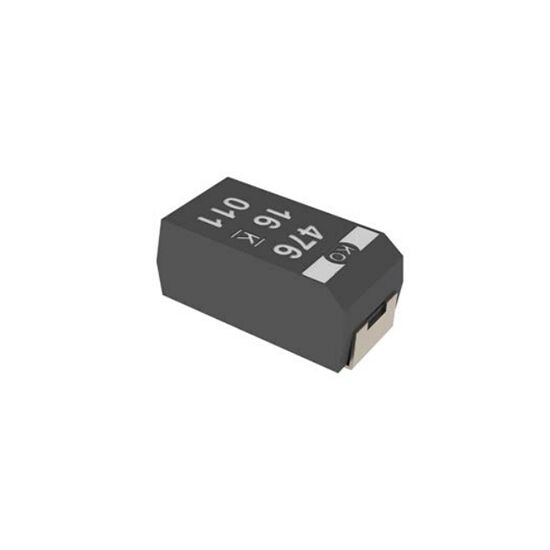

330μF 2.5V SMD Tantalum Capacitor

Chip tantalum capacitor with small size. Most often in the form of surface mounted devices (SMD). 330μF tantalum capacitor applies in mobile phone, printer and electric tool.

Features:

• No aging effects
• High ripple handling
• Volumetrically efficient
• 100% surge current tested
• 100% accelerated steady state aging
• High frequency capacitance retention
• Stable capacitance across temperature and voltage

Specification:

• Model: ATO-TC-330UF025SMD
• Capacitance: 330μF
• Rated Voltage: 2.5V
• Type: B-SMD
• Net Size: 2 mm
• Height Mounting (Maximum): 1.25 mm
• Equivalent Series Resistance: 1
• Tolerance: 5%
• Leading Spacing: 2 mm
• Working Temperature: -55 ℃— +125 ℃

SMD Tantalum Capacitor Dimension: (Unit: mm)

Tips: Roles of Capacitance

• Bypass. The bypass capacitor is an energy storage device that provides energy to the local device. It can homogenize the output of the voltage regulator and reduce the load requirement. Like a small rechargeable battery, the bypass capacitor can be charged and discharged to the device. To minimize impedance, the bypass capacitor should be close to the power supply pin and ground pin of the load device. This can well prevent the input value is too large and lead to ground potential elevation and noise.
• Storage. Energy storage capacitors collect charge through the rectifier and transfer the stored energy to the output end of the power supply through the converter lead. Aluminum electrolytic capacitors with voltage ratings from 40 to 450V DC and capacitance values from 220 to 150000μF are commonly used. Depending on the power requirements, the devices are sometimes in series, parallel, or a combination of them.
