30W Electric Desoldering Pump, 32mm

The desoldering vacuum pump has a powerful suction force to ensure fast and clean desoldering operations. 30W electric desoldering pump features an ergonomic, lightweight design for excellent maneuverability and comfortable operation.

Specification

• Model: ATO-DS-311
• Tin Storage Cylinder: 32mm diameter
• Heating Power: 30W
• Electromagnetic Power: 350W (instant)
• Working Voltage: 220V 50Hz
• Dimension: 245mm
• Gross Weight: 391g

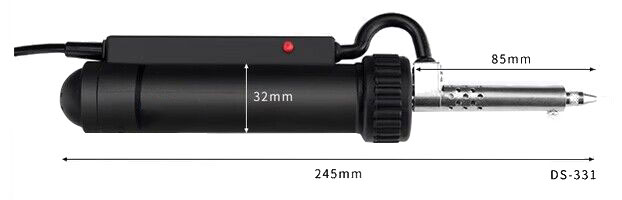

Dimension (unit: mm)

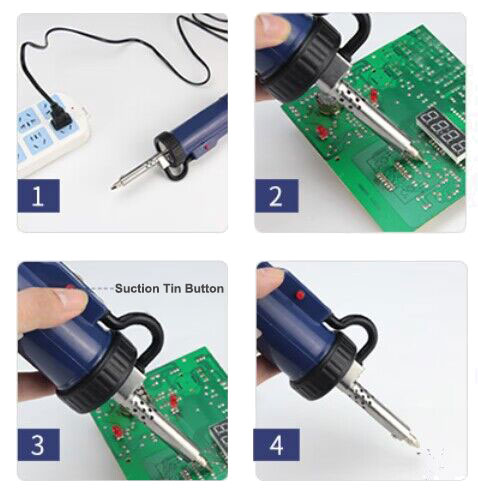

Usage

• Connect the power supply, preheat for about 3~5 minutes and you are ready to use.
• Align the front of the nozzle with the solder joint to be removed and melt the solder.
• Press and hold the suction button to suck the solder into the storage cylinder.
• Move the suction nozzle away from the solder joint and release the suction button to eject the solder dross.

Applications

The desoldering pump is commonly used in the field of electronics for removing solder from electronic components and circuit boards, facilitating repairs, and allowing for the replacement of faulty or damaged parts. Its efficient vacuum suction mechanism aids in the precise and clean removal of solder, making it a valuable tool in the electronics industry.

Tips: What is a desoldering pump?

A desoldering pump, also known as a solder sucker or solder vacuum, is a tool used for removing solder from electronic components or circuit boards. It is primarily used in the process of desoldering, which involves the removal of solder joints to replace or repair electronic components.

The desoldering pump typically consists of a cylindrical tube with a plunger mechanism inside. The tube is made of a heat-resistant material, such as plastic or metal, and one end of the tube has a nozzle or tip designed to be placed over the solder joint.
