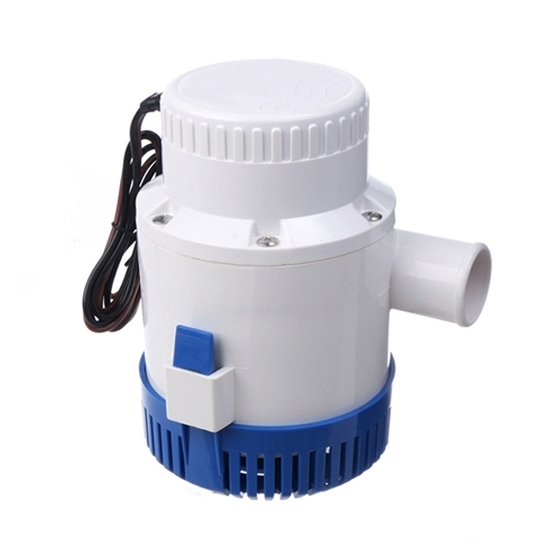

3000 GPH Bilge Pump, 12V/24V

The bilge is the lowest compartment on a ship that holds water due to leaks, rainwater, or other sources. ATO electric bilge pumps are critical to maintaining the safety and buoyancy of your vessel by preventing it from taking in too much water.

Features

• Bilge pump adopts special materials for waterproof sealing, super insulation, and high safety in use.
• The small bilge pump is driven by a permanent magnet motor, which has a small size and ultra-low noise.
• Electric bilge pump uses 12V/24V DC regulated power supply, which is efficient and energy-saving. Intermittent operation is more conducive to extending the service life of the pump.
• It comes with a grid filter that automatically filters larger objects, protects the normal operation of the pump, and extends the service life of the pump.
• It can extract finer particles, less oil and other impurities.
• Stainless steel pump shaft and thermoplastic pump body are durable and non-corrosive, and can be used in both fresh water and sea water.
• The filter device is easy to install and remove, ensuring the bilge pump can run freely without vibration.

Specification

• Model: ATO-SFBP3000
• Flow Rate: 3000 GPH
• Voltage and Current: 12V 14.0A, 24V 7.0A
• Outlet Diameter: 1-1/2 inch (40 mm)
• Wire Lead: 1m
• Head of Pump: 8m
• Max Fluid Temperature: 43 ℃ (110 ℉)

Dimension (Unit: mm)

Tips: How to Use Bilge Pump?

• Check the bilge pump. Check the water pump for any damage or wear and tear. Make sure that the hoses and connections are secure.
• Turn off the electrical system. If you are using an electric bilge pump, turn off the electrical system before you begin.
• Connect the hoses. Connect the hoses to the bilge pump. One hose should be connected to the intake port on the pump, and the other hose should be connected to the discharge port.
• Place the intake hose in the water. Place the intake hose in the water at the lowest point in the bilge.
• Turn on the pump. If you are using an electric bilge pump, turn on the electrical system and switch on the pump.
• Turn off the pump. Once all the water has been pumped out of the bilge, turn off the pump and disconnect the hoses.
