3.5μF 450V Ceiling Fan Capacitor

2 wire ceiling fan capacitor rated voltage AC 450V, 3.5mfd capacity, capacitance tolerance 5%, good frequency characteristics, high reliability, for the AC power supply of various appliances to start and run.

Specification

• Model: ATO-FC-CBB61-035
• Capacity: 3.5μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 38(W) x 18.5(L) x 29(H)mm
• Certificate: CE, CQC

3.5μF Ceiling Fan Capacitor Wiring Diagram

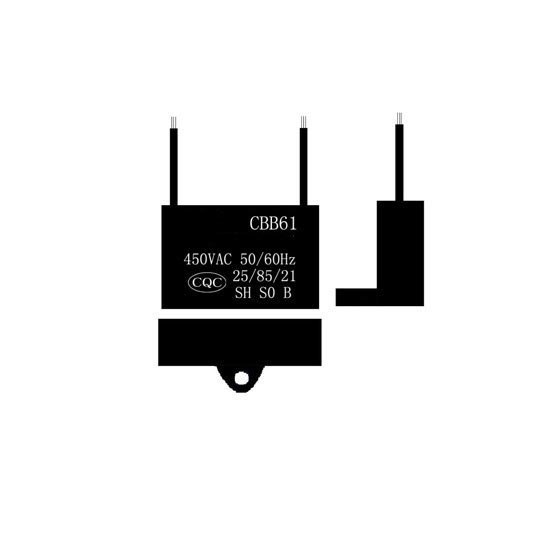

Ceiling fan capacitor details

Tips: What is capacitance?

Capacitance (or capacitance) is a physical quantity that expresses the capacitor's ability to hold an electric charge. Physically speaking, capacitance is a static charge storage medium, and it is possible that the charge will exist permanently, which is its characteristic. It has a wide range of uses, and it is an indispensable electronic component in the field of electronics and electric power. It is mainly used in power supply filtering, signal filtering, signal coupling, resonance, filtering, compensation, charging and discharging, energy storage, DC isolation and other circuits.
