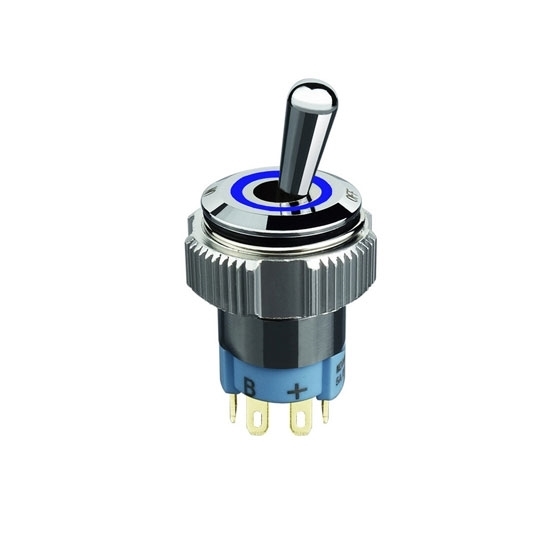

    24V Lighted Toggle Switch, 6 Pin

    5 out of 5 based on 1 reviews | Write a review
    $26.89
    Sell 4/5/6 pin toggle switch at low price, 24 volt, on off 2 position, 5A rated current, waterproof appearance design, with led light display, electrical life more than 10, 000 cycles, 12 months warranty.
    *
    SKU: ATO-TS-AD16102E2
    This product has a minimum quantity of 5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    24V toggle switch with blue led light, can choose other colors of lights, red, yellow, blue, green and white, 4/5/6 pin, 2 position on off, contact resistance 25mΩ.

    Specification

    Model ATO-TS-AD16102E2
    Rated Current 5A
    Rated Voltage 3~250V AC/DC
    Position 2 Position, on/off
    Pin 4, 5, 6 Pin
    LED Life Time ≤50,000 Times
    Insulation Resistance ≥100 MΩ
    Action Force 2.0±0.2N
    Action Method Automatic Lock
    Protection Level IP67
    Operating Temperature -25℃~55℃
    Contact Resistance 25mΩ
    Nut Tightening Force 16N
    Electrical Life Time ≥50,000 Times
    Switch Stroke 1.2mm
    Warranty 12 Months
    Weight 17.8g

    6 Pin Toggle Switch Dimension (unit: mm)
    Lighted toggle switch dimension

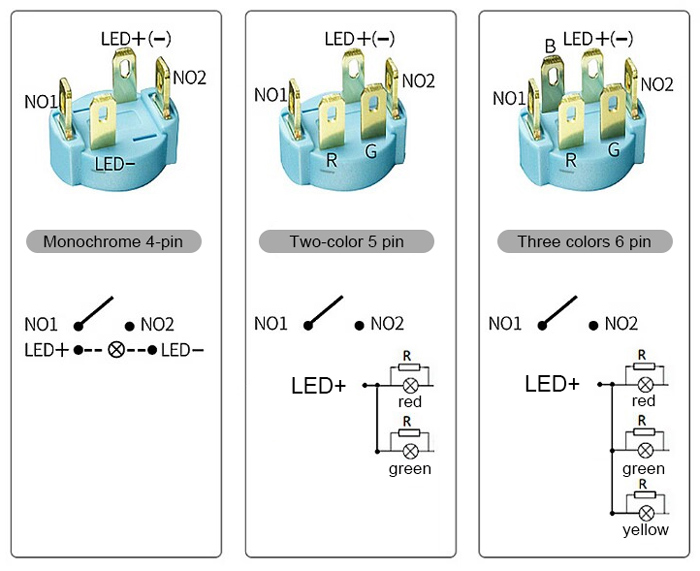

    Pin Definition

    Toggle switch pin definition

    Tips: Application of toggle switch

    • Audio and video products: MP3, MP4 audio.
    • Digital products: digital cameras, digital video cameras, etc.
    • Communication products: mobile phones, car phones, telephones, building equipment, PDAs, etc.
    • Security products: video intercoms, monitors, etc.
    • Toys: electronic toys, etc.
    • Computer products: cameras, etc.
    • Fitness equipment: electronic body fat scales, treadmills, etc.
    • Medical equipment: sphygmomanometer, clinical thermometer, hospital call system, etc.
