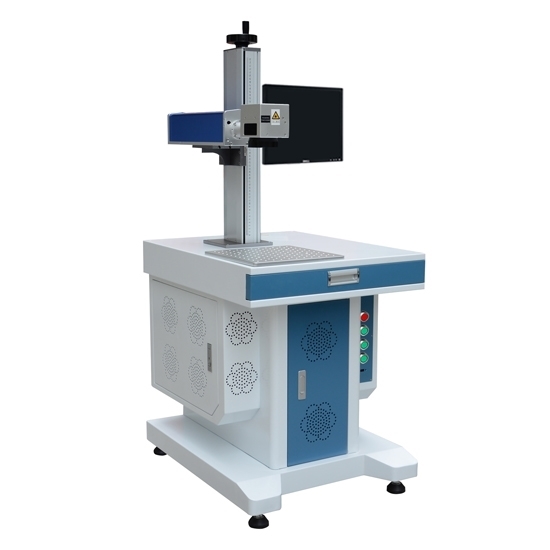

    20w Economic Cabinet Type Fiber Laser Marking Machine

    5 out of 5 based on 1 reviews | Write a review
    $14,538.00
    Small fiber laser marking machine for sale, faster marking speed, more sophisticated engraving effect, 20w output power, integrated module design, maintenance-free.
    SKU: ATOF20ED3
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Fiber laser marking system features:

    • Desktop type is good for industrial factory.
    • Marks widest variety of materials, including steel, titanium, aluminum, copper, ceramics and some plastics.
    • 100,000+ hours of laser life, reducing costs and production downtime.
    • 110mm2 mark field (other sizes available).
    • No consumables and minimal maintenance help reduce operating costs.
    • Air-cooled 10W-20W models.
    • Higher beam quality than flash lamp, diode pumped and vanadate, resulting in a high quality mark.
    Basic Information
    Model ATOF20ED3
    Weight 154.32 lbs. (70 kg)
    Dimension 600mm x 750mm x 1430mm (23.62" x29.53"x56.30")
    Warranty 2 Years
    Distance (scanner to working plateform) 97~387mm (3.82" x 15.24")
    Platform size 300mm x 300mm (11.81" x 11.81")
    System Technical Specifications
    Laser type Fiber; Ytterbium doped
    Output power 10W, 20W
    Power requirements 10W 20W: 220 V AC, 16 A, 50/60 Hz
    Wavelength 1070 nm
    M2 <1.4
    Operation mode Pulsed
    Pulse rep rate 20-80 kHz
    Cooling 10-20W: Fan assisted air cooling
    Scanning method XY galvanometer
    Max line speed 7,000 mm/sec
    Controls LEC 1 industrial computer based controller
    Communications USB ports, Ethernet, EtherNet/IP™, RS232
    Documentation USB flashdrive with operator's manual and integration guide; Online video troubleshooting
    Lens Configurations
    Lens Marking field Focal length
    100mm 65mm x 65mm (2.5" x 2.5") 97mm (3.82")
    160mm 110mm x 110mm (4.3" x 4.3")  175mm (6.89")
    254mm 175mm x 175mm (6.9" x 6.9") 296mm (11.65")
    330mm 228.6mm x 228.6mm (9" x 9") 387mm (15.23")

    Material: Plastic, steel, stainless steel, magal, zinc alloy, copper, nickeling, zincing, alox.

    Tips: Fiber laser marking machine marking size problems and solusions
    Sometimes, in using the fiber laser marking machine, people may find that the practical size of the marked graph is different from the set size.
    The main problems include:

    1. The proportion parameter is not regulated well. The verification document of controlling the marking size for the laser marking machine is not correct.
    2. The focal distance has changed. The focal distance of the laser marking machine is not correct.
    3. The surface of the marked material is not flat or it is not placed evenly.
    4. The screen of the workbench for the laser marking machine is not flat.

    Solutions:

    1. Verify the document of the marking size for the laser marking machine again.
    2. Measure if the focal distance of the laser marking machine is correct or not with a steel ruler, regulate the focal distance.
    3. Place the marked material to be flat or even.
    4. Regulate the screen the workbench for the laser marking machine.
    Existing reviews of 20w Economic Cabinet Type Fiber Laser Marking Machine
    This 20w fiber laser making machine can increase the speed of work
    We bought this 20w fiber making machine to engrave parts instead of tying up a 4-axis CNC machine to do the same thing. It has a wide range of uses and is sturdy and durable. Don't worry, it will be damaged. Very happy with this purchase!
    From: Stevenc | Date: 02/09/2021
