Applications
6000VA/4800 Watts high-performance UPS with battery backup provides an uninterruptible power source for the loaded equipment or devices with optional input and output voltages of 220V/120V AC, and the UPS power supply is widely used for personal computers, office equipment, test equipment, light system, safe alarm system, ray equipment, medical equipment, copy machine, numerical control machine tools, industrial automation equipment, color and drying equipment, Hi-Fi equipment, etc.

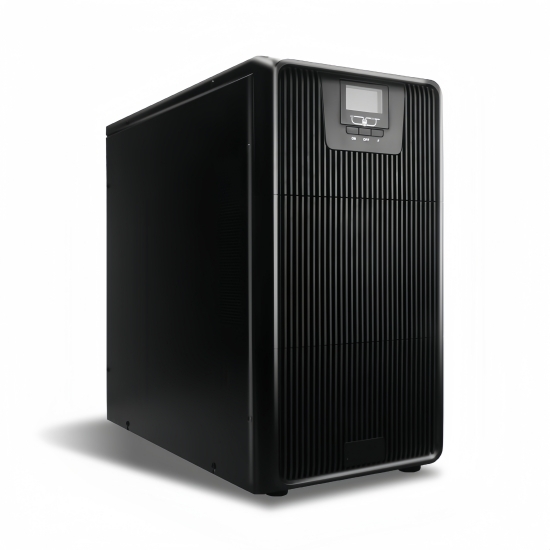

6kVA UPS Specification
Basics |
Model |
ATO-BE-6K |
Rated Capacity |
6000VA/4800W |
Phase |
Single Phase (L, N, G) * NOT support the split phase (L1, L2 + G) like USA standard. |
Weight (kgs) |
12 |
Dimensions (mm) |
369×190×318 |
Input |
Nominal Voltage |
208/220/230/240VAC |
Input Voltage Range |
110-300 VAC (Based on load at 50%), 176-300 VAC (Based on load at 100%) |
Frequency Range |
46-54 Hz or 56-64 Hz |
Power Factor |
≥0.99 @ Nominal Voltage (100% load) |
Output |
Output Voltage |
208/220/230/240VAC |
Voltage Regulation |
±1% |
Frequency Range (Synchronized Range) |
46-54 Hz or 56-64 Hz |
Current Crest Ratio |
50 Hz or 60 Hz ±0.1Hz |
Harmonic Distortion |
≤3% THD (Linear Load), ≤5% THD (Non-linear Load) |
Transfer Time |
Zero |
Waveform (Batt. Mode) |
Pure Sinewave |
Efficiency |
AC Mode |
92% |
Battery Mode |
90% |
Battery |
Battery Type |
Depending on the capacity of external batteries |
Numbers |
16 - 20 (Adjustable) |
Charging Current (Max.) |
1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries) |
Charging Voltage |
273 VDC 土1% (Based on 20pcs batteries) |
Indicators |
LCD |
Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators |
Alarm |
Battery Mode |
Sounding every 4 seconds |
Low Battery |
Sounding every second |
Overload |
Sounding twice every second |
Fault |
Continuously sounding |
Environment |
Humidity |
0-95% RH @ 0-50°C (non-condensing) |
Noise Level |
Less than 55dB @ 1 Meter |
Management |
Smart RS-232/USB |
Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8/10, Linux and MAC |
Optional SNMP |
Power management from SNMP manager and web browser |
Note:
1. The UPS input/output configuration is 1-phase (L, N, G) like Europe standard, NOT support the split phase (L1, L2 + G) like USA standard.
2. Batteries that work with this UPS are not included, customers need to match lead-acid battery packs on their own, consult us for battery specifications.
3. If you need other output voltage range, please contact us.

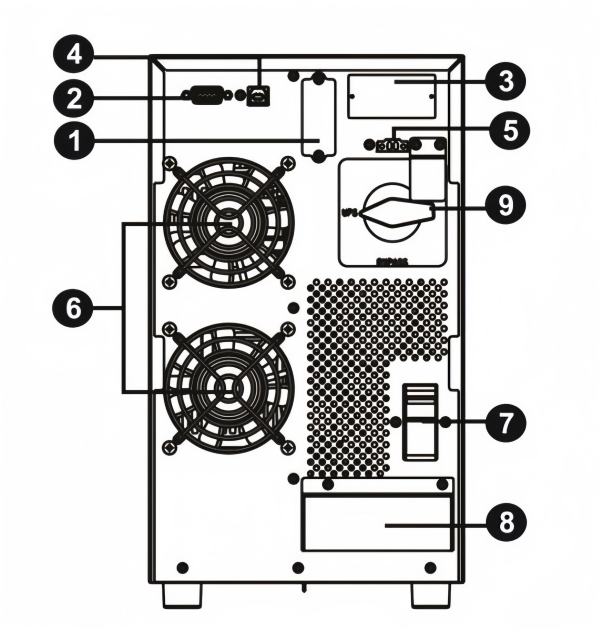

Rear Panel Diagram
- External battery connector
- RS-232 communication port
- Intelligent slot
- USB communication
- Emergency power off function connector (EPO connector)
- Cooling fan
- Input circuit breaker
- Input/ Output terminal (Refer to Diagrams 3 and 6 for the details)
Tips: UPS troubleshooting - there is no display on the panel and the UPS does not work after the starting up.
Judging from the phenomenon, it is the fault of the electric power supply input, battery, and electric supply detection and battery voltage detection circuit.
1. Check whether the electric power supply input fuse is burned out.
2. Check whether the UPS battery fuse is burned out and whether the electric supply input fuse is OK. Because the UPS output and display will be shut down when some UPS cannot detect battery voltage.
3. Check whether the electric supply detecting circuit is working normally and if the UPS battery fuse is OK. If it doesn’t work normally and UPS doesn’t have a starting-up function without an electric supply, UPS output and display will be shut down. If the electric supply detecting circuit is working normally, please check whether the UPS battery voltage-detecting circuit is normal.
