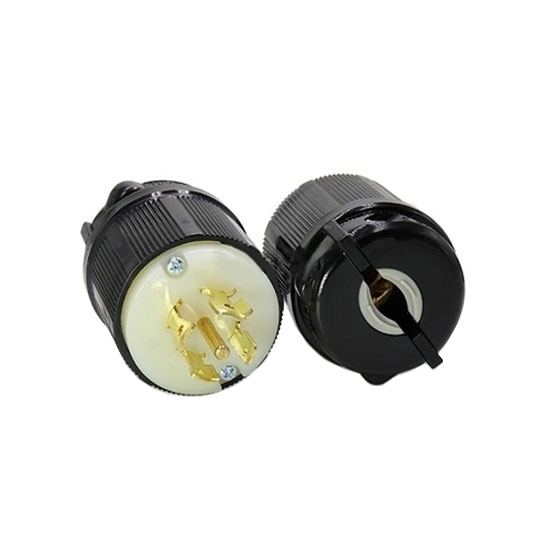

    20A 347V/ 600V Locking Plug, 4 Pole 5 Wire

    5 out of 5 based on 1 reviews | Write a review
    $53.99
    Low price electrical locking plug for sale online, 20 amp rated current, 347V/ 600V rated voltage, optional male and female plug. Its wiring and connecting is 4 pole and 5 wire grounding.
    *
    SKU: ATO-L23-20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Twist locking plug is good to use and install. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

    Specification

    Model ATO-L23-20
    Plug Type NEMA L23-20 Plug
    Materials Nylon and full copper
    Certifications UL/ CSA/ CUL
    Rated Voltage 347V/ 600V
    Rated Current 20 Amp
    Wiring & Connecting 4 Pole 5 Wire
    Terminal Clamp Material 0.08" (2) steel-nickel plated
    Terminal Screw Material 10-32 Brass white finish on neutral screw when use
    Ground Screw Material 10-32 Brass (green finish), multi-device
    Dielectric Voltage Withstand 18000V minimum
    Current Interrupting Certified for current interrupt at full rate current
    Temperature Resistant Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
    Operating Temperatures Maximum continuous 75℃ minimum -40℃ (w/o impact)
    Terminal Identification 14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

    Tips: Locking plugs wiring

    When installing a locking plug, it needs a positive pole, a neutral wire and a ground terminal. How to connect the locking plugs?

    • Wrap the positive pole clockwise on the screw on the terminal and tighten it.
    • Take the neutral wire, wind it clockwise on the terminal of the twist locking plug, and tighten the screw.
    • Find the ground wire and twist it into a strand. Take the wire and wind it around the screw at the end of the plug and tighten the screw.

    Purchase Guide

    In this video, we have developed a comprehensive guide that details the key factors to consider before making a purchase decision for outlets.

    Existing reviews of 20A 347V/ 600V Locking Plug, 4 Pole 5 Wire
    Easy to use and affordable.
    This locking plug was exactly what I needed to connect the wires from the car lift to my generator. Nice product, easy to use and affordable. I would recommend it for any application that requires this type of plug.
    From: Freddy | Date: 29/04/2022
    Was this review helpful? Yes No (0/0)
    Load more reviews...
