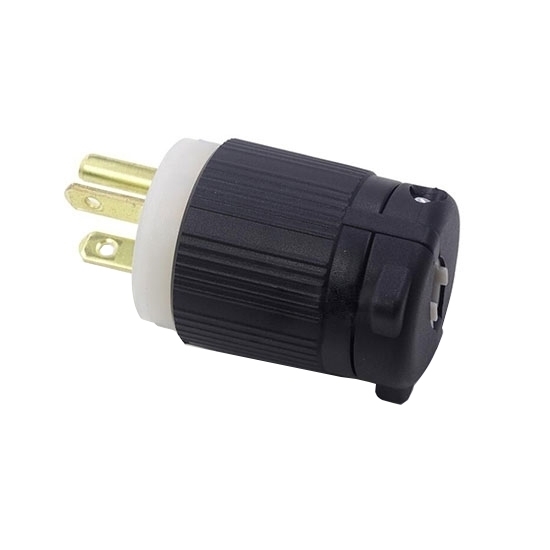

20A 250V Locking Plug, 2 Pole 3 Wire

5 out of 5 based on 3 reviews | Write a review

$34.59

ATO electrical locking plug for sale at economical price, 20A rated current 250V rated current, 2 pole and 3 wire grounding, male plug and female plug available. It is widely used for medical devices, electronics, generators and lifts.

Plug *

SKU: ATO-LP6-20

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Twist locking plug is suitable for medical devices, electronics, lighting, machinery, grills, generators and lifts, etc. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

Specification

Model	ATO-LP6-20
Plug Type	NEMA 6-20 Plug
Materials	Nylon and full copper
Certifications	UL/ CSA/ CUL
Rated Voltage	250V
Rated Current	20 Amp
Wiring & Connecting	2 Pole 3 Wire
Terminal Clamp Material	0.08" (2) steel-nickel plated
Terminal Screw Material	10-32 Brass white finish on neutral screw when use
Ground Screw Material	10-32 Brass (green finish), multi-device
Dielectric Voltage Withstand	18000V minimum
Current Interrupting	Certified for current interrupt at full rate current
Temperature Resistant	Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
Operating Temperatures	Maximum continuous 75℃ minimum -40℃ (w/o impact)
Terminal Identification	14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

Tips: Difference between male plug and female plug

In the electrical and mechanical industries, locking plugs, connectors or other fasteners are usually designed to have male and female ends. The male plug is the pin in the plug and the female plug is the hole in the plug.

Purchase Guide

In this video, we have developed a comprehensive guide that details the key factors to consider before making a purchase decision for outlets.

NEMA Outlets Explained

NEMA outlets are electrical connectors that are manufactured according to standards established by the National Electrical Manufacturers Association and they are everywhere across the United States and other countries that use the standards. Among others, NEMA 5 are the most common of the non-locking connectors.

Existing reviews of 20A 250V Locking Plug, 2 Pole 3 Wire

Functioned perfectly.

Excellent locking plug, easy to install, functioned perfectly. I am very happy with the product and company. I will definitely buy again as I need them. Highly recommended.

From: Michael | Date: 30/10/2022

Was this review helpful? Yes No (0/0)

Good quality at a good price.

This locking plug is sturdy and well designed. I like how each of the terminals is clear and separate, and when you push the wire in you can see there very little risk of arking. Good value arrived quickly works as it should. Good quality at a good price.

From: Vernon | Date: 28/10/2022

Was this review helpful? Yes No (0/0)

Easy to install.

It is well made locking plug for my generator, arrived on time, low cost and easy to install. For the price, I will just buy another.

From: Stephanie | Date: 29/04/2022

Was this review helpful? Yes No (0/0)
