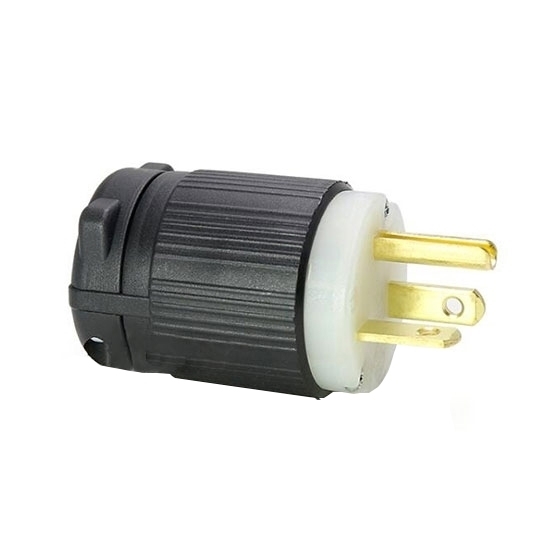

    20A 125V Locking Plug, 2 Pole 3 Wire

    5 out of 5 based on 3 reviews | Write a review
    $29.99
    Twist locking plug with 20A rated current, 125V rated voltage, 2 pole 2 wire grounding, optional male plug and female plug. It is high quality and lightweight at low price.
    *
    SKU: ATO-LP5-20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Twist locking plug is suitable for medical devices, electronics, lighting, machinery, grills, generators and lifts, etc. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

    Specifications:

    Model ATO-LP5-20
    Plug Type NEMA 5-20 Plug
    Materials Nylon and full copper
    Certifications UL/ CSA/ CUL
    Rated Voltage 125V
    Rated Current 20 Amp
    Wiring & Connecting 2 Pole 3 Wire
    Terminal Clamp Material 0.08" (2) steel-nickel plated
    Terminal Screw Material 10-32 Brass white finish on neutral screw when use
    Ground Screw Material 10-32 Brass (green finish), multi-device
    Dielectric Voltage Withstand 18000V minimum
    Current Interrupting Certified for current interrupt at full rate current
    Temperature Resistant Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
    Operating Temperatures Maximum continuous 75℃ minimum -40℃ (w/o impact)
    Terminal Identification 14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

    Tips: What are the environmental requirements for locking plug?

    • The flammability of environmental specification products is rated V-2 according to UL94.
    • The working temperature is between -40℃ and 60℃.

    Purchase Guide

    In this video, we have developed a comprehensive guide that details the key factors to consider before making a purchase decision for outlets.

    Existing reviews of 20A 125V Locking Plug, 2 Pole 3 Wire
    Like this 20A locking plug
    I like this 20A locking plug better than what I've used before because of the clamp action at the base where the wire enters. I will recommend this one to my friends.
    From: Monzer | Date: 02/03/2023
    Was this review helpful? Yes No (0/0)
    Good quality locking plug.
    I’m pleased with this locking plug and would buy it again. Easy to use and perfect for my application. The price was better than equivalent items at other retailers.
    From: Fredrik | Date: 30/10/2022
    Was this review helpful? Yes No (0/0)
    Great value for the price.
    This locking plug was exactly what I needed and cost less than other supplies. Going to use it as a plug in for my cottage generator. Good quality and easy assembly.
    From: Anthony | Date: 29/04/2022
    Was this review helpful? Yes No (0/0)
