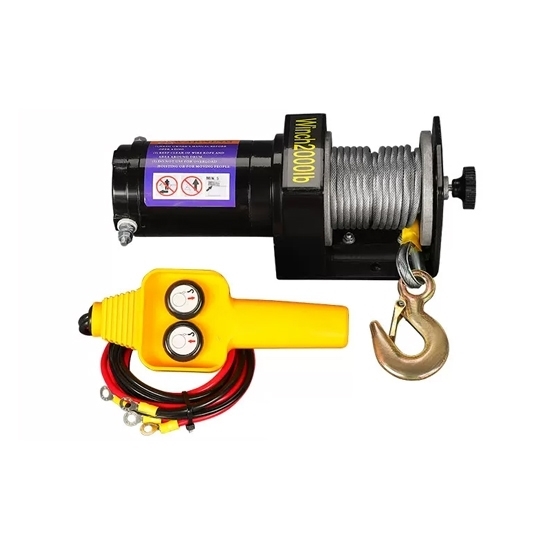

2000 lbs 12V/24V ATV Electric Winch

5 out of 5 based on 3 reviews | Write a review

$315.48

Portable mini electric winch for ATV/ UTV application, features with 2000 lbs (907kgs) single line rated pull, 12V or 24V DC operating voltage, 0.7kW/1hp permanent magnet motor, 150:1 gear ratio, efficient differential planetary gear train helps to offer powerful horsepower, wired remote control and wireless remote control are included.

Voltage *

SKU: ATO-WINCH-2000

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

2000 lbs 12V/24V ATV Electric Winch comes with the upgraded accessory kit, which includes a set of wired and wireless remote controller tools, control box, cable steel, universal mounting plate, hook, and roller fairlead to offer you an excellent working performance. Completely waterproof, single line pull for smooth and efficient operation.

Features

High efficiency permanent magnet 0.7kW/1hp motor for power and fast line speed, DC 12V or DC 24V Power drive optional.
2000 lbs small pull capacity winch for ATV/UTV with compact structure and affordable price.
Equipped with a gear reduction ratio of 150:1 and a differential planetary gear train to born with stronger pulling capacity.
Dual remote control mode, wired remote control and wireless remote control.
Free spooling with sliding ring gear, easy to operate.
Designed to keep dust and water out with an IP67 waterproof rating.
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
100% testing on winch pulling capacity and function before shipping.

Specifications

Model		ATO-2000LB
Single Line Rated Pull		2000 lbs (907kgs)
Voltage		12V/24V DC (Optional)
Motor		Permanent magnet, 0.7kW/1hp
Gear Ratio		150:1
Gear Train		Differential planetary
Control		Remote switch (Support wired remote control and wireless remote control)
Clutch		Sliding ring gear
Cable (Dia x L)		Ø4mm x 9.2m
Drum Size (Dia x L)		Ø1.24” (31.5mm) x 2.8” (72mm)
Fairlead		4-way roller fairlead
Braking Action		Automatic In-The-Drum
Overall Dimensions (L x W x H)		11.3'' x 4'' x 4.1'' (286mm x 100mm x 105mm)
Mounting Bolt Pattern		76mm, Ø8.5
Protection Grade		IP67
Weight		8kg
Packing Size		355 x 265 x 170mm

Package Included

1		1 x 2000 lbs ATV winch
2		1 x Clevis hook
3		1 x Control box
4		1 x Wired remote controller
5		1 x Wireless remote controller
6		1 x 4-way roller fairlead
7		1 x Universal mounting plate
8		1 x Winch cable
9		1 x Set of bolts
10		1 x User manual

Parameters of Line Pull, Speed and Current at 12 Volt

Line Pull (lbs) / (kgs)	Line Speed (ft/min) / (m/min)	Current (A)
0	10.5 / (3.2)	8
500 / (227)	9.2 / (2.8)	30
1000 / (454)	7.2 / (2.2)	60
1500 / (680)	5.2 / (1.6)	90
2000 / (907)	2.9 / (0.9)	120

Line Pull and Rope Capacity in Layer

Layer	Rated Line Pull (lbs) / (kgs)	Total Rope on Drum (ft) / (m)
1	2000 / (907)	5.9 / (1.8)
2	1630 / (740)	8.2 / (2.5)
3	1380 / (627)	13.1 / (4.0)
4	1190 / (540)	21.3 / (6.5)
5	1050 / (477)	30.0 / (9.2)

Tips: What is an electric winch?

Electric winch is a traction device driven by the car's power system. It is the most common type of winch currently used. The commonly used voltage is 12V/24V DC. It is simple to install and can achieve multi-position installation and rapid displacement. When the vehicle is in trouble in the harsh environment such as snow, quagmire, desert, swamp in the wild, it is an effective tool for the vehicle to carry out self-rescue or field rescue. It can also be used for road work such as obstacle clearance and towing. It can be installed on different equipment such as ATV, UTV, car, boat, trucks, etc. It is an essential safety device in petroleum, hydrology, forestry, transportation, border control and outdoor sports.
