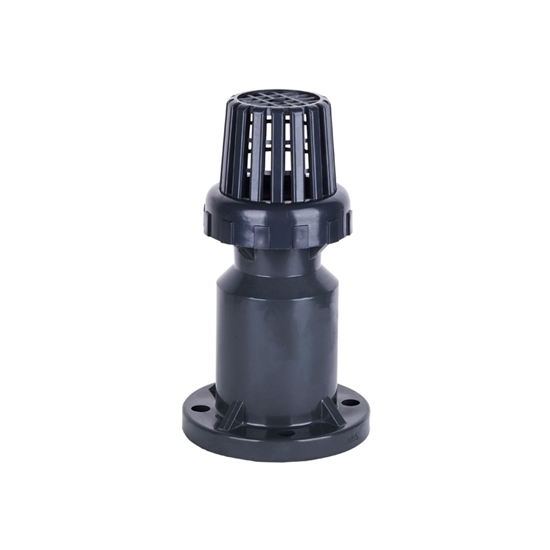

    2" Plastic Foot Valve, UPVC Non Return Valve

    $90.38
    2 inch (DN50) foot valve is available with all-plastic material, 16kg nominal pressure and a flange connection, which can be used to control the flow of fluid in the pipeline. Equipped with a filter to prevent impurities from entering. Quality UPVC foot valve is suitable for handling chemicals and corrosive liquids.
    SKU: ATO-PFV-50
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cheap 2 inch (DN50) foot valve for sale online. It is a non-return valve made of UPVC all-plastic material. Flange plastic check valve is an ideal water pump supporting facility in petrochemical, textile, printing and dyeing, metallurgy, chemical industry, irrigation and drainage and other industries.

    Specifications

    • Model: ATO-H42F-10S
    • Port Size: 2 inch, DN50
    • Nominal Pressure: 16kg
    • Type: Foot Valve
    • Body Material: UPVC
    • Connection Form: Flange
    • Weight: 1.2kg
    • Suitable Medium: Water

    Features

    • The foot valve is mainly used in pumps and other mechanical equipment for slurry treatment. It is usually installed at the bottom of the pump's underwater suction pipe to limit the return of the liquid in the pump pipe to the water source.
    • There are many water inlets and ribs on the foot valve cover, equipped with a screen to prevent impurities from flowing in and reduce clogging.
      With good sealing performance, small pressure loss and strong hydraulic performance, the
    • UPVC foot valve is an ideal water pump supporting facility for petrochemical, chemical, textile, printing and dyeing, metallurgy, mining, drainage, irrigation industries, etc.

     Dimension (Unit: mm)

    UPVC foot valve dimension Nominal Diameter DN50
    D1 160
    D2 125
    L 215
    h 17
    N-Φ
    4-Φ17x20


    Applications

    Foot valve is a type of valve that is used in pumping systems to prevent the backflow of fluids. UPVC foot valve is used in various applications such as irrigation, water supply, and other fluid handling systems where backflow prevention is necessary.

    UPVC foot valve applications

    Tips: Why choose UPVC materials foot valve?

    • Chemical resistance: UPVC is highly resistant to a wide range of chemicals, making it an excellent choice for applications where chemical exposure is likely. It can withstand exposure to acids, alkalis, and other corrosive substances without degradation or damage.
    • Corrosion resistance: UPVC is a non-corrosive material that does not rust or degrade when exposed to moisture or corrosive substances. This makes it ideal for use in harsh environments where metal valves may corrode or degrade over time.
    • Lightweight: UPVC is a lightweight material that is easy to handle and install. This can be an advantage in applications where weight is a concern, as it can help reduce the overall weight of the system and make installation easier.
    • Durability: UPVC is a durable material that can withstand years of use without degradation or damage. This can help reduce the need for frequent replacements and save costs over time.
    • Low maintenance: UPVC foot valves require minimal maintenance compared to metal valves, which may require more frequent maintenance to prevent corrosion or other issues. This can help reduce downtime and maintenance costs.
