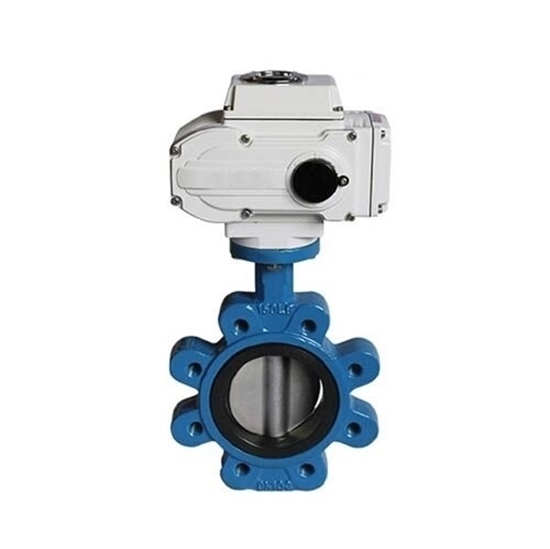

    2" Electric Lug Type Butterfly Valve

    5 out of 5 based on 1 reviews | Write a review
    $417.85
    Wafer type butterfly valve, lug type combination with 05 electric actuator, control of water, air, gas, oil, liquid, steam. Lug type butterfly valve voltage optional AC 220 V, 110V, 24 V. Special voltage can be customized with protection class IP65. Work at temp -30℃~ 60℃ with G1/2 water-proof cable connectors and single electric power wire. Possess 2 inch (DN50) port size.
    *
    SKU: ATO-HK60-DMS50-05
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Lug type butterfly valve 2 inch (DN50) with electric actuator with 2 type: on/off and regulation types. Work at temp -30℃~ 60℃ and possess protection class IP65. Voltage optional lug type butterfly valve with special voltage can be customized. Light weight and compact construction.


    Electuator Specification

    Model ATO-HK60-DMS50-05
    Protection Class IP65
    Ambient Temp. -30°C~60°C
    Installation Angle Any
    Electrical Connection G1/2 Water-proof Cable Connectors, Electric Power Wire, Signal Wire
    Voltage Optional AC 110V, AC 220V, AC 380V, DC 24V, AC 24V
    Corresponding Valve Port Size 2" (DN50, 50mm)
    05 Actuator Control Circuit A Type (Normalized Form): ON/OFF Type with Light Indicator Signal Feedback (Default 90° opening and closing)
    Voltage AC 220V DC 24V AC 380V
    Torque Output 50Nm 60Nm 70Nm
    90° Cycle Time 10S/20S/60S 8S 20S
    Working Current 0.23A 0.38A 0.16A
    Drive Motor 50W 9. 5W 51W



    Body and Valve Specification

    Body Valve components
    Corresponding Valve Port Size 2" (DN50, 50mm) Seating Material NBR, EPDM, VITON (Default PTFE)
    Body Material Stainless Steel Disc Material Stainless Steel
    End Connection Wafer Flange Stem Material Stainless Steel
    Operating Pressure < 1.6MPa Applicable Media Control of Water, Air, Gas,Oil, Liquid, Steam
    Structure Midline Structure/ A-type



    Butterfly Construction

     Butterfly valve construction

    Dimension Inch D D1 D2 L H n-φd
    DN50 2" 52.7 mm 89 mm 125 mm 41.4 mm 217 mm 4-M16 mm


    Actuator Dimension (mm)

    Outline size 05

    Details

    2" Electric Lug Type Butterfly Valve Details

    Features

    1. Remote controlled lug type bf valve switch regulation and MODBUS, PROFIBUS Field Bus.
    2. Body made of hard aluminum alloy, which is treated by hard anodic oxidization and coated by Polyester powder with great corrosion resistance.
    3. Motor fully enclosed cage type motor is small in size and inertia, large in torque. Insulation class is F grade which can prevent motor over-heating.
    4. Manual Override energy-saving of wafer type butterfly valve with lug type, used for manual operation when electricity is off. In automatic operation, it can be fixed inside the clip for easy operation.
    5. Wafer butterfly valve with lug type indicator assembled on center axis, valve position can be observed. Outside mirror design facilitates position observation and prevents water drops accumulation.
    6. Lug type butterfly valve high sealing performance, standard protection class is IP67.
    7. Mechanical and electronic position limit switches, controlled by cam. Position set easily and accurately without any influence by handle.
    8. Electric actuator valve with lug type, compact structure, miniature size, long service life, good sealing performance, easy maintenance, quick detachable and installation.
    9. Explosion proof construction EXd II BT4.

    Note

    If you need a wafer type butterfly valve with lug type unlisted in above table, please contact us to inform your operating environment, so as to help you choose an appropriate one for your application.

    We also provide other bf wafer butterfly valve for home. If you have any questions, please feel free to contact us.

    Tips: What about bf valve with lug type installation instruction?

    1. When removing the valve from storage, a careful check should be made to ensure that the valve has not been damaged during the storage period.
    2. Valve open or close position is indicated on the notch plate for lever operated valves or on the top of the gear operator for gear operator operated valves.
    3. Center valve, span body with bolts, but do not tighten. Slowly open disc to ensure that it clears pipe ID and leave at full open position.
