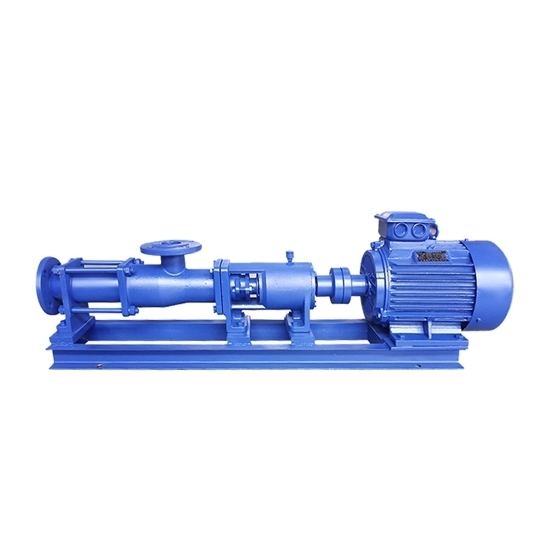

2 hp (1.5 kW) Screw Pump, 380V

The flow rate of this screw water pumpt is 0.8 m³/h. Screw pump suitable for conveying high viscosity medium work. The suction flange diameter of 2 hp (1.5 kW) single crew pump is 25 mm.

Features:

• Small mechanical vibration, no pulsation, stable operation.
• Besides can transport all kinds of fluid medium, can also transport high viscous medium.
• Flow is proportional to speed, with the help of the governor can realize the amount of automatic regulation.

Specification:

• Model: ATO-G20-2
• Voltage: 380V
• Power: 2 hp (1.5 kW)
• Flow Rate: 0.8 m³/h
• Pressure: 1.2 MPa
• Max Speed: 960 r/min
• NPSH: 4m
• Suction Flange Diameter: 25 mm
• Discharge Flange Diameter: 25 mm
• Max Granule Size: 1.5 mm
• Max Fibre Size: 25 mm

Structure:

Tips: How to Maintain Screw Pump?

• Regularly inspect the pump. Check the pump for any signs of wear and tear, including leaks, cracks, or damage to the rotor or stator. Make sure all fasteners are tightened properly.
• Clean the pump. Clean the pump regularly to remove any buildup of debris or contaminants that can affect its performance. Use a cleaning solution that is compatible with the material being pumped.
• Check the lubrication. The pump must be adequately lubricated to prevent damage to the rotor and stator. Check the lubrication regularly, and replace it as needed.
• Monitor the temperature. Check the temperature of the pump regularly, as overheating can damage the seals and reduce the lifespan of the pump.
