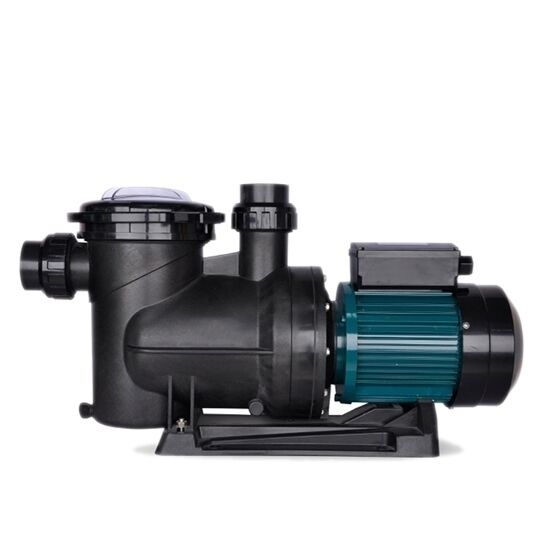

2 HP Pool Pump, 220V / 380V

Economical price 2 hp pool pump with 16 meters head for sale. Swimming pool pump often used in large size swimming plll, water park and water project. Silicone sealing ring, cover all watering section, enhance swimming pool pump sealing system.

Feature:

• Magnificent flow rate and lift, the core energy of water circulating, 2-3m suction lift.
• Free-tool filter cover design, easy to maintenance.
• IP55 protection level, with none-leaky design.
• 100% copper wire motor, 24 hours running.
• Silicone sealing ring, cover all watering section, enhance pump sealing system.
• Engineering plastic body, pump can be effectively protected under bad weather, long service life.
• Anti rust cast-aluminum motor cover,fast heat dissipation; PPO plastic steel material impeller, resist high temperature and corrosion.

Specification:

• Model: ATO-FQS-1500
• Voltage: 220V (1 or 3 phase) / 380V (3 phase)
• Frequency: 50 Hz / 60 Hz
• Power: 2 HP (1.5 kW)
• Hmax: 16m
• Qmax: 25 m³/h
• Port Size: 50 mm
• Motor: copper motor
• Medium Temperature: 5 ℃ - 50 ℃
• Protection Level: IP44
• Weight: 17 kg

Dimension (Unit: mm)

Structure:

Details

Flow Diagram:

Tips: How to Program Pool Pump?

With modern technology miracles, you can now get pool pumps with built-in programming that support energy-efficient usage.

The benefit of having automation on your pool pump is that you don't have to think about switching speeds all the time for specific tasks. The pump will automatically change speeds once its completed a task. Say, for example, you want the pump to run on high to give the pool a proper cleaning. After it runs the program to high powered clean, it will go back to a low power setting or turn off for a period.

And the best part is if you can set a timer on a standard pool pump, then using the built-in programming features shouldn't be any cause for concern. The controls are typically straightforward to comprehend.
