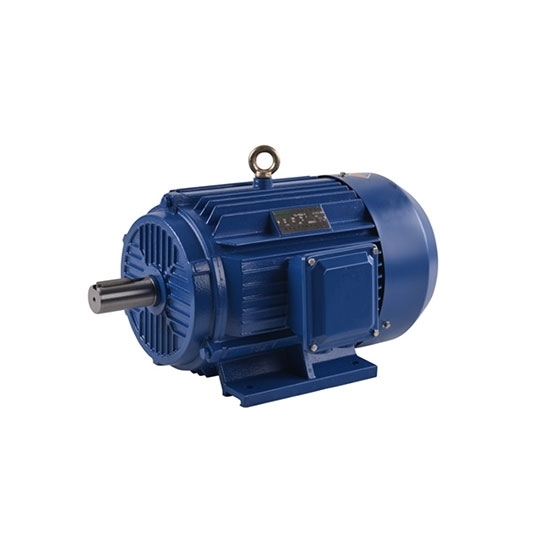

    2 hp (1.5kW) 3 phase 4 pole AC Induction Motor

    5 out of 5 based on 1 reviews | Write a review
    $485.88
    Induction motor or asynchronous motor for sale, 2 hp or 1.5kW, 4-pole, 1400rpm, 3-phase, 380 Volts @ 50Hz, TEFC enclouse, solid structure, attractive appearance, low noise, high protection class and durability. Low price and directly selling by manufacturer.
    SKU: ATO-IM-15004P
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    2 hp (1.5kW) 3-phase 4-pole AC induction motor or asynchronous motor is characterized by rated speed 1400rpm, foot mounting, 90L frame size and it can widely used in various kinds of general purpose machineries like fans, pumps, compressors, machine tools, transportation and so on.

    2hp Induction Motor Specification

    Basics Model ATO-Y2-90L-4
    Design Standard IEC
    Weight 23kg
    Frame Type 90L
    Mounting Horizontal Foot Mounting (B3)
    Wiring Method Output≤4hp (3kW), Y connection
    Output≥5.5hp (4kW), Delta connection
    Degree of protection IP54/IP55
    Insulation Class Class F
    Cooling TEFC (compliance to IC 411 code of IEC 60034-6)
    Technical Parameters Nominal Output 2.0hp or 1.5kW
    Pole Number 4-pole
    Nominal Speed 1400rpm
    Frequency 50Hz
    Nominal Voltage 380V (Y connection by default) / 220V (Change Y to Δ connection on your own)
    Nominal Current (full load) 3.68A/6.37A
    Efficiency 78.5%
    Power Factor( cosφ) 0.79
    Nominal Torque (Tn) 10.2Nm
    Locked Rotor Torque/Nominal Torque (TST/Tn) 2.3
    Maximum Torque/Nominal Torque (Tmax/Tn) 2.3
    Locked Rotor Current/Nominal Current (IST/In) 6.0
    Noise Level 61dB/(A)
    Environment Ambient Temperature -15℃+40℃
    Altitude Less than 1000m above sea level

    3-phase Induction Motor Dimensions
    3-phase AC induction motor dimensions

    Frame Type Mounting Dimensions (mm) Overall Dimensions
    A A/2 B C D E F G H K AB AC AD HD L
    90L 140 70 125 56 24 50 8 20 90 10 180 195 155 250 345

    Wiring Diagrams (Three-phase squirrel-cage induction motor)
    3 phase induction motor wiring connection diagram

    Details

    1500W AC Induction Motor Details

    Tips: Basic Structure of Induction motor

    The main structure of induction motor is composed of two parts stator and rotor where there is an air gap between them. In addition, there are end bells, bearings, motor frame and other components.

    1. stator
      Stator is a fixed part of asynchronous motor, consisting of motor frame, iron core and windings. Motor frame is the shell of motor, playing the role of supporting the motor, which is made of iron. Stator iron core is a hollow cylinder, stacked up with 0.5 mm thick silicon steel sheets. Stator windings are wound with insulated copper wires and embedded in the stator slot, which are separated by insulating material between the windings and the slot.
    2. Air gap
      The air gap of asynchronous motor is much smaller than the direct current motor with the same capacity, 0.2 ~ 1.0mm on average for medium and small asynchronous motor.
    3. Rotor
      Motor rotor is composed of iron core, windings and revolving shaft. Rotor core is also a part of the magnetic circuit, generally stacked by silicon steels and fixed on the revolving shaft. Wound-type rotor winding can be connected into star or delta. In general, the small capacity rotor is connected into triangle; the large and medium capacity one is connected into star. The winding structure of squirrel-cage rotor is quite different from the one of stator. There are slots on the rotor iron core with a bar on each slot. Two ends of iron core that connect all the bars to the external of slots respectively form a short circuit. If the iron core is removed from the stator, the windings shape is like a squirrel cage. Some bars are made of copper, and some are aluminum.

    • 3 Phase Induction Motor Wiring

    In this video, ATO takes a 1hp (0.75kW) 220V/380V induction motor as example to explain the motor wiring. ATO first changes the wiring of induction motor from star connection to delta connection. When the induction motor is connected in delta connection, the rated voltage of motor is 220V, and when connected in star connection, the rated voltage is 380V. To demonstrate this change clearly, the induction motor is also connected to ATO 1-phase in 3-phase out VFD and it runs normally under the control of VFD.
