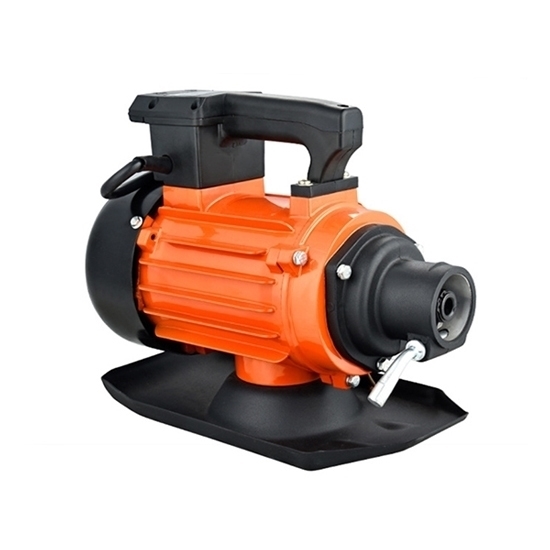

    1kW Concrete Vibrator Motor, Three Phase, 220V/380V, 2840rpm

    5 out of 5 based on 4 reviews | Write a review
    $489.74
    Internal concrete vibrator with reasonable price is widely used for different constructions. 220V or 380V can be chosen, 2840rpm rated speed, offers strong vibration and long service life advantages.
    *
    SKU: ATO-CVM-1kW
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High speed internal concrete vibrator, rated power of 1000W, two phase or three phase can be chosen. It is widely use in pre-fabrication railway, highway, bridges and other fields.

    1.1kW Internal Concrete Vibrator Motor

    Model ATO-ZN-50M ATO-ZN-50
    Phase 2 Phase 3 Phase
    Voltage 220V 380V
    Power 1kW
    Speed 2840rpm
    Number of pole 6 Pole
    Size 320 * 180 * 280mm
    Weight 11 kg
    Type Internal
    Warranty One year for machinery
    Application Construction industry
    Drive Mode Electric vibrator
    Certification CCC
    Installation Method Make sure the voltage and frequency supply match the ones indicated on the rating plate of the electric vibrator. Insert the power cable through the cable gland.

    Detail of Internal Concrete Vibratior Motor

     Internal concrete vibrator

    Tips:What is a Internal Concrete Vibrator Motor?
    The concrete vibrator is a mechanized machine for compacting concrete and it is used in conjunction with an insert vibrator. When the concrete mixing machine mixes the concrete pouring components, the air bubbles must be removed and tamped. The concrete vibrating motor can make the concrete densely combined, eliminate the honeycomb pockmark of the concrete, improve its strength, and ensure the quality of the concrete components.
    There are many varieties of concrete vibrators. According to the method of transmitting vibration, there are three kinds of internal vibrators, external vibrators and external vibrators. Internal vibrator is also called piercing vibrator. During the task, the vibrating head penetrates into the concrete and transmits its vibration wave directly to the concrete. This kind of vibrator is mostly used for vibrating thick concrete layers, such as bridge piers, abutment bases and foundation piles. Its advantages are its light weight, convenient mobility and universal using.

    Existing reviews of 1kW Concrete Vibrator Motor, Three Phase, 220V/380V, 2840rpm
    High performance 3-phase concrete vibrator motor
    This is a very high-quality motor. This 1kW vibrator is used to shake liquid wax and sawdust into h.d. molds I can tune it to the right frequency. Thank you for this great vibration motor.
    From: Mangler | Date: 17/10/2022
    Was this review helpful? Yes No (0/0)
    Small vibrating motor for a small job
    I mounted this 1kW concrete vibrator motor on a expanded metal diamond shape horizontal shaker screen. Works well for low moisture soil (not wet sticky soil). It is just powerful enough to get the job done relatively quickly with not-too moist soil, and not having to wear earplugs. Over all, a decent motor for the money!
    From: Sapello | Date: 30/05/2022
    Was this review helpful? Yes No (0/0)
    Good choice
    I bought a 1000W concrete vibration motor a month ago. Well packaged when I received the courier, it's not like others I bought. So I'll praise ATO! For now, the motor is still works perfectly!
    From: Clairer | Date: 11/04/2022
    Was this review helpful? Yes No (0/0)
    Based on the situation I described, which vibration motor would you recommend to me?
    The vibration platform area is 1.5m x 1.5m
    I don't know the needed force.
    I just know the weight of the platform and the load.
    Both are about 150 to 200 kgm.
    So I need to know the suitable motor for vibrating this total load. Advice, please.
    From: Jerry | Date: 11/11/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    It is recommended to use a 160W vibration motor with a vibration force of nearly 300Kg, its single-phase 220V.
