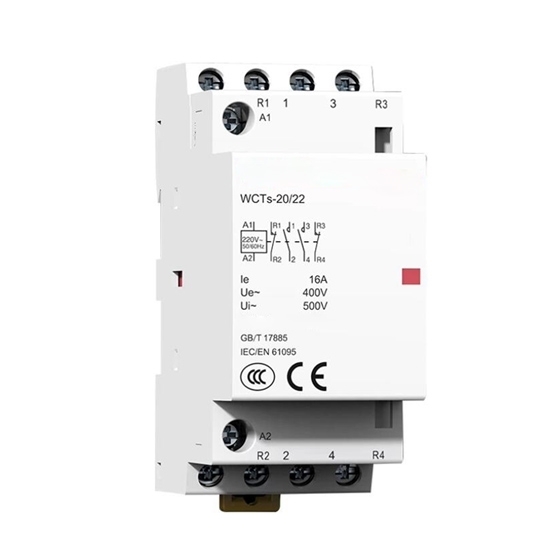

16 amp 2/4 pole Lighting Contactor, 24V/110V/220V Coil

5 out of 5 based on 8 reviews | Write a review

$58.03

Low price 16 amp 2 pole lighting contactor with 100,000 cycles, coil voltage 12V/24V DC and 110/220V AC. 2 pole & 4 pole contactors are relay switches, have extra long life and low noise, work at a safer load. Contactor auxiliary contacts for selection. AC contactor is used to control lighting systems, supplies for large-scale industrial and commercial.

Pole *
Operating Mode *
Coil Voltage(V) for 2 Pole *
Coil Voltage(V) for 4 Pole *
Contact Type for 2 Pole
Contact Type for 4 Pole

SKU: ATO-LCON-16

Qty:

30-day Returns

Free Shipping

Delivery date: 10-20 days

Overview

High performance 16 amp double pole and 4 pole lighting contactor are relay switches to control lighting systems, modular contactor for ac unit with optional auxiliary contacts has 100,000 cycles, and coil voltage 12V/24V/110/220V, less vibration and long life, used for large-scale industrial and commercial.

Specifications

Model	ATO-WCT-16
Power Circuit
Voltage rating (Ue)	2P	250V AC
	4P	400V AC
Frequency	50Hz or 60Hz
Endurance (O-C)
Electrical	100,000 cycles
Maximum number of switching operation a day	100
Additional Characteristics
Insulation voltage (Ui)	500V AC
Pollution degree	2
Rated impulse withstand voltage (Uimp)	2.5kv (4 kV for 12/24/48V AC)
Degree of protection (IEC 60529)	Device only	IP20
	Device in modular enclosure	IP40
Operating temperature	-5℃ to 60+℃
Storage temperature	-40℃ to 70+℃
Tropicalization ( IEC 60068-1)	Treatment 2 ( relative humidity 95% at 55℃ )
ELSV compliance (Extra Low Safety Voltage) for 12/24/48 V AC versions
The product control conforms to the SELV (Safety Extra Low Voltage) requirements

Lighting Contactor Wiring Test: Demonstrating Operation

A lighting contactor is an electrical device used to control the operation of lighting systems, typically in commercial or industrial settings. It is designed to handle the high current demands of lighting circuits and provide a convenient way to switch multiple lighting loads on and off. The video will conduct a wiring test of the lighting contactor to demonstrate its operational principles.

Note: In the case of contactor mounting in an enclosure for which the interior temperature is in range between 50℃ and 60°℃, it is necessary to use a spacer, between each contactor.

Consumption

Type	Raring (In)		Control Voltage (V AC) (50Hz)	Consumption		Max Power
Type	AC7a	AC7b	Control Voltage (V AC) (50Hz)	Holding	Inrush	Max Power
2P	16A	5A	12	3.8VA	15VA	1.3W
			24	3.8VA	15VA	1.3W
			48	3.8VA	15VA	1.3W
			220	3.8VA	15VA	1.3W
			230-240	2.7VA	9.2VA	1.3W
			12	3.8VA	15VA	1.3W
			24	3.8VA	15VA	1.3W
			220	3.8VA	15VA	1.3W
			230-240	2.7VA	9.2VA	1.2W
4P			24	4.6VA	34VA	1.6W
			220-240	4.6VA	34VA	1.6W
			220-240	4.6VA	34VA	1.6W

Contact Type Diagram

2NO 1NO+2NC 2NO contact type diagram 4NC 2N0+2NC 4NO 3NO+1NC contact type diagram

Dimension (Unit: mm)

Lighting Contactor Dimension

Details

Tips: Advantages of Lighting Contactor

The lighting contactor has low noise and low power consumption.
It dissipates less heat and is easy to install.
2 pole contactor and 4 pole contactor are available.
Optional modular contactor auxiliary contacts
It is compact and does not take up much space.
Lighting contactor offers100,000 cycles.
Some models can be controlled manually.
It is equipped with contact indications.
