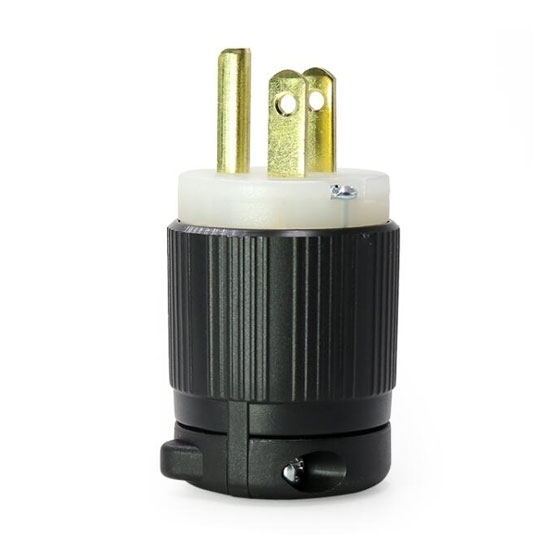

    15A 125V Locking Plug, 2 Pole, 3 Wire

    5 out of 5 based on 4 reviews | Write a review
    $29.99
    Electrical locking plug with 125V rated voltage has 2 pole and 3 wire grounding, 15Apm rated current, NEMA 15 plug type. Assembly screws with steel zinc and plated, terminal screws is brass.
    *
    SKU: ATO-LP5-15
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Twist locking plug is suitable for medical devices, electronics, lighting, machinery, grills, generators and lifts, etc. It comes with nylon material, high quality and durable, fall resistant and explosion-proof. Plug matching socket has the function of clamping the power cord to prevent the phenomenon of slack power failure in the work.

    Specification

    Model ATO-LP5-15
    Plug Type NEMA 5-15 Plug
    Materials Nylon and full copper
    Certifications UL/ CSA/ CUL
    Rated Voltage 125V
    Rated Current 15 Amp
    Wiring & Connecting 2 Pole 3 Wire
    Terminal Clamp Material 0.08" (2) steel-nickel plated
    Terminal Screw Material 10-32 Brass white finish on neutral screw when use
    Ground Screw Material 10-32 Brass (green finish), multi-device
    Dielectric Voltage Withstand 18000V minimum
    Current Interrupting Certified for current interrupt at full rate current
    Temperature Resistant Max 30℃ temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75℃
    Operating Temperatures Maximum continuous 75℃ minimum-40℃ (w/o impact)
    Terminal Identification 14/3, 12/3, 10/3 AWG size conductors; terminals identified in accordance with UL498 (X, Y, Z, white, green)

    Tips: How to use the electrical locking plug correctly?

    Improper use of the electrical locking plug is easy to cause electricity safety risks, grasp the correct use method to ensure that the locking plug can be better used by us. So, how to use the locking plug correctly?

    • Prevent the occurrence of excess locking plug load. Each type of locking plug standard has a rated voltage and current, when use, you should ensure that the voltage and current of the inserted appliance is less than the rated voltage and current of it, otherwise it is easy to overload and heat, and even shorten its life span.
    • If the locking plug is loose, bad contact and other phenomena, it should be repaired in time. If the repair is not good, it should be abandoned.
    • Clean the locking plug regularly. The panel and jack are easy to accumulate dust. If the dust is not cleaned up for a long time, it will not only affect the appearance of the locking plug, but also make the copper rust easily, resulting in problems in the use of it. Accordingly, when using it, you should wipe the shell regularly with the alcohol of low concentration, and shake it to remove the dust in the jack.

    Purchase Guide

    In this video, we have developed a comprehensive guide that details the key factors to consider before making a purchase decision for outlets.

    Existing reviews of 15A 125V Locking Plug, 2 Pole, 3 Wire
    Supprized about the qualitity of the connectors
    I have bought a lot locking plugs from other websites before, either the quality is not good enough or the after-sales service is not good enough!! But at this time, this little thing is what i want! EXCELLENT!
    From: carey | Date: 01/11/2023
    Was this review helpful? Yes No (0/0)
    Happy with this purchase
    The locking plug is cheap, well made, and fits perfectly into the socket, providing a solid connection. And the locking mechanism is easy to use and gives me peace of mind knowing my device won't be accidentally unplugged.
    From: Enoch | Date: 17/03/2023
    Was this review helpful? Yes No (0/0)
    Heavy duty locking plug
    This isn't a solid plug, and the connection can be easily stripped. This was exactly what I needed to connect the wires from the car lift to my generator until I finished wiring my outdoor garage to 240 volts. I would recommend this plug for any application that requires this type of plug.
    From: Adrian | Date: 20/05/2022
    Was this review helpful? Yes No (0/0)
    High quality
    This was exactly what I needed to connect the wires on my automotive lift to my Generator until I finish getting my outside garage wired for 240 volts.
    It was not a cheap flimsy Plug with connections that easily stripped. I would recommend this plug for any applications where this type of plug is needed.
    From: wjl | Date: 21/04/2022
    Was this review helpful? Yes No (0/0)
