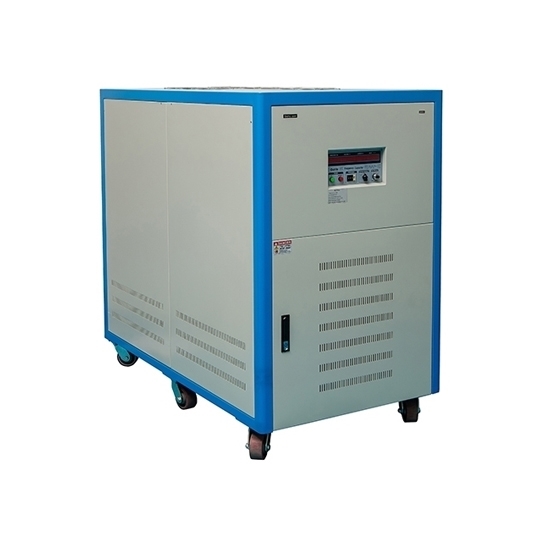

150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

Picture of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

5 out of 5 based on 9 reviews | Write a review

$34,716.39

150 kVA static frequency converter, step up & step down 3-phase 208v/220v/380v/415v/480v power source, easy converting 50Hz to 60Hz (vice versa), make international 50/60 Hz power system compatible easily.

Input Voltage (Three Phase) *

Wiring Type *

Wye (L1, L2, L3 + N, G)
Delta (L1, L2, L3 +G)

Output Frequency *

50Hz/60Hz
400Hz [+$599.00]

SKU: HZ-50-33150

Qty:

30-day Returns

Delivery date: 6-12 days

Overview

150 kVA 3 phase 220V 60 Hz to 400V, 380V 50 Hz static frequency converter, adjustable output Hertz (40.0 Hz - 400 Hz) and Volt (0 - 520V), convert fixed power supply to variable-frequency and variable-voltage.

Specification:

Model	HZ-50-33150
Capacity	150 kVA
Dimension	15008601430 mm
Weight	800 kg
Input	Voltage	3 Phase 4 Wire: Wye Type 190/110, 200/115, 208/120, 220/128, 230/132, 240/139V ±10% (option *)
		3 Phase 4 Wire: Wye Type 380/220, 400/230, 415/240, 440/254, 460/265, 480/277V ± 10% (option *)
		3 Phase 4 Wire: Della Type 220, 230, 240, 380, 400, 415, 440V ± 10% (option *)
	Frequency	50 Hz, 60 Hz or 400 Hz ± 5%
Output	Voltage, current	110V Setting (Low grade): 0-150V (phase voltage), 0-260V (line voltage) 418A
	Voltage, current	220V Setting (High grade): 0-300V (phase voltage), 0-520V (line voltage) 209A
	Load stabilization Rate	≤±1%
	Frequency	50Hz, 60Hz up to 400Hz adjustable Note: -When the output is 400Hz, the load capacity can only reach 50% of the rated capacity. -When the output is ≤120Hz, the load capacity can reach 100% of the rated value. -You can just adjust converter output frequency in the range (40-400Hz) for 400Hz option.
	Frequency Stability	≤±0.01%
	Harmonic Distortion	Pure Sine Wave ≤2%
	Frequency meter	4 digit, digital frequency meter, resolution 0.1Hz/Step
	Voltmeter	4 digit, digital voltage meter, resolution 0.1V
	Ammeter	4 digit, digital ammeter, resolution 0.1A
	Watt meter	4 digit, digital Watt meter, resolution 0.1W
Protection	With overload, short circuit, over temperature
Protection	Instantaneous power failure protection and alarm device
Working Environment	Temperature	0 - 40 deg.℃
Working Environment	Humidity	0 - 90% (Non condensation)
Warranty	18 months

Existing reviews of 150kVA 3-Phase 400v 50Hz/208v 60Hz Frequency Converter

High efficiency converter

The company recently purchased a number of converters, management took this purchase quite seriously and asked a couple questions. The first was whether there were any lower voltage range converters available? For example: One rated 0-150V per phase instead of 0-300V. Also, would this converter be able to help couple the converter with a power conditioner, or use a harmonic filter after the converter?

From: Phillip | Date: 07/05/2024

Was this review helpful? Yes No (0/0)

ATO Responded

1.Is the rated 0-150V per phase you mentioned phase voltage or line voltage? Our converter's low-end voltage 0-150V is the phase voltage, and the corresponding line voltage range is 0-260VAC. It can be understood as you want the line voltage 0-260V?
2.Regarding the problem of harmonic interference, the vibration problem of the motor can Not be solved by adding a filter to the output end of the converter. Because we have tested similar loads, this is related to the motor speed and can Not be solved by simply adding a filter. We are still looking for ways to solve the vibration problem of this motor at low voltage and high speed.
Thanks for the question.

Can you reproduce the documentation for this frequency converter?

I hope you have been well. I am reaching out because we are starting to use the equipment from this order in short order after some unforeseen delays.
Unfortunately, during the delay the manuals/documents and CE declaration of conformity seem to have been misplaced.
Is there any way you could reproduce the documentation for this unit for us? I would really appreciate it.
Thank you very much.

From: berg | Date: 13/06/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Please check the attached user manual and factory test report.
You can refer to our demo video, please see on: https://www.youtube.com/watch?v=xRDzC1vHtIw

We need the following frequency converter specs

We need the following converter specs: frequency converter, 400V/3phase/50Hz to 230v/3phase/60Hz and the capacity must be 40 kW and 100 Amps. What do you recommend?

From: Lhaas | Date: 11/01/2022

Was this review helpful? Yes No (0/0)

ATO Responded

Based on your specs, recommended frequency converter model: HZ-50-3360, 60kVA power capacity, input: 3ph, Wye (L1, L2, L3 + N, G), 400V (+/- 10%), 50/60Hz and output: 3ph, Wye/Delta (L1, L2, L3 + N, G), adjustable (0-260V), adjustable (40-120Hz), 166.4A.

I need a frequency converter. Do you have any recommendations?

I need a frequency converter with:
Input: 400V, 50hz, three phase.
Output: 220V/110V 60Hz. What do you recommend?

From: Denali | Date: 20/10/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Ok, recommended frequency converter model: HZ-50-3320, 20kVA power capacity, input: 3ph, Wye (L1, L2, L3 + N, G), 400V (+/- 10%), 50/60Hz and output: 3ph, Wye/Delta (L1, L2, L3 + N, G), adjustable (0-260V), adjustable (40-120Hz), 55.6A.

Which frequency converter would you recommend to us?

We build boats and ship them to Europe regularly and they need to test the systems on the boats. We need to go from 120V 60Hz to 240V 50Hz. Currently they are using a generator to obtain the 50Hz, but it has been unreliable at best. They estimate the range to be between 30-50 Amps, possibly less. What do you recommend?

From: Fredrik | Date: 11/10/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Based on your specs, recommended frequency converter model: HZ-50-1120, 20kVA power capacity, input: 1ph, 120V (+/- 10%), 50/60Hz and output: 1ph (L, N, G), adjustable ( 0-300V), adjustable (40-120Hz), 83.2A.

Frequency converter performance and use

Hi, I have a site in Australia. We build air conditioning units for other countries and want to test the units. Looking for a converter that can convert 240v 50Hz to 120v 60Hz but also gave a variant on the 120v side, so the voltage can be varied. Is this something you could assist with?

From: Gotta | Date: 26/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we can.
Our converter output voltage and frequency can be adjusted in the range (0-150V) & (40-120Hz).
What is the tested air conditioning unit rated current (Amps), and power capacity? Also, what is its expected increase in current at the starting period?
Clarification: When the motor starts to spin up, it pulls high inrush current that may reach 6 times its rated value and lasts from few milliseconds to 1-3 seconds unless the motor is attached to starting controller like soft starter or VFD.

I am interested in your frequency converter

20kVA 3-Phase 380v 50Hz/220v 60Hz Frequency Converter
1) From your description I found that it has 3-phase 400V (3x230V)/50Hz input and 3-phase 220V(3x120V)/60Hz output. So on the output there are L1, L2, L3 (3x120V) and N available? Please confirm..
2) Do you have any office sales in Europe? What is the cost of delivery to Poland?

From: Smiel | Date: 23/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

1. Yes, as listed on the aforementioned specs.
2. Do not have office sales in Europe, but we are used to shipping to Poland Airport >>> Shipping cost (by Air): 681.01USD.

I want a frequency converter that meets our requirements

We need your brief specs for GoHz model HZ-50-1310 frequency converter with 1ph, 230V input, and 3-phase, 115V, 400Hz output?

From: Nycgal | Date: 31/08/2021

Was this review helpful? Yes No (1/0)

ATO Responded

Ok, frequency converter model: HZ-50-1310, 10kVA power capacity, input: 1ph, 230V (+/- 10%), 50/60Hz and output: 3ph, Wye/Delta (L1,L2,L3 + N,G ), adjustable (0-260V), adjusted (40-499.9Hz), 27.6A.

Failure analysis of 150kVA frequency converter

What will happen to the 150kVA frequency converter if it got sudden high inrush/surge current?

From: Thien | Date: 12/04/2021

Was this review helpful? Yes No (1/0)

ATO Responded

If the frequency converter got a sudden high inrush current, its internal protection trips, so you just need to reset and run again, not an issue.
