13 amp 3 pole Miniature Circuit Breaker

5 out of 5 based on 1 reviews | Write a review

$38.00

3 pole MCB circuit breaker with 6kA short circuit breaking capacity and 13A current rating at 230/400V AC, possibility for locking the toggle in ON or OFF position. High density mini circuit breaker is thermal-magnetic type supplementary overcurrent protective device.

Rated Voltage (Ue) *
Trip Curve *

SKU: ATO-MCB-3P13

Availability: Out of stock

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

3 Pole MCB Breaker Information

Model: ATOCLXB3-13
Rated Current: 13 amp
Rated Voltage: 230/400V AC, 50Hz/ 60Hz
Number of poles: Three pole
6 kA short circuit breaking capacity
Accordance with IEC standard
Standard 35 mm DIN rail mounting
Suitable for supplementary protection
Three levels of short-circuit protection choose from B, C or D curves

Technical Data

Standard Certifications		IEC	UL1077
Electrical Parameters	Height	86 mm
	Width	18 mm per pole
	Mounting	DIN Rail
	Rated Current (In)	1A, 2A, 3A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A (Available)
	Number of poles	1P, 2P, 3P, 4P (Available)
	Rated Voltage (Ue) (Optional)	240/415V or 230/400V	277/480V
	Rated Insulation Voltage (Ui)	500V
	Rated Frequency	50Hz/60Hz
	Short Circuit Interrupting Capacity (Optional)	6/10KA	5KA
	Trip Characteristic (Optional)	B Curve (3-5In)	B Curve (4In)
		C Curve (5-10In)	C Curve (7In)
		D Curve (10-20In)	D Curve (14In)
Mechanical Parameters	Electrical Life	8000 times
	Mechnical Life	10000 times
	Protection Degree	IP20
	Calibration Temperature	30℃
	Operating Temperature	-5℃~+40℃
	Storage Temperature	-25℃~+70℃
	Tightening Torque	22 Ib-in (2 Nm)
	Terminal Size Acceptability–Min/Max	2.5 mm²(12 AWG) / 25mm²(3 AWG)

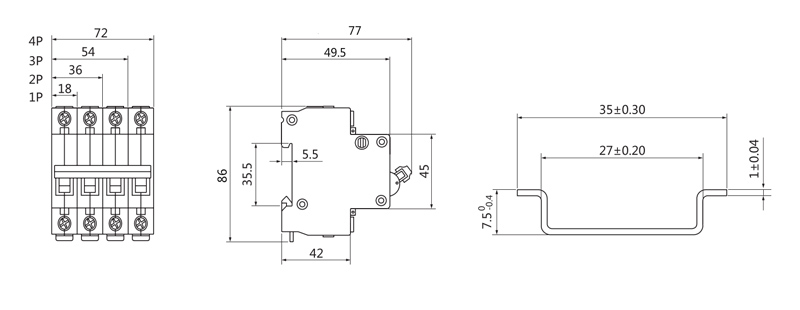

3 Pole MCB Breaker Dimensions (Unit: mm)

Details

Tips: Features of miniature circuit breaker

High breaking capacity in rated short-circuit with partial rated current level above 10KA.
Double wiring function is easy to connect standard bus-bar and flexible circuit conductor.
Amphenol connector with finger touch protection with higher security.
Energy storage mechanism operation that makes touch spot open and close quickly overcomes the adverse effect caused by the speed of manual operation of the handle and improves the service life of product.
A variety of accessories are available for modular and flexible combination, which is convenient for users to install.
Shell and partial functional components are made with imported plastics that are high fire retardant, high temperature resistant and high shock resistant.
High current limiting coefficient and high cost performance.

Types of Circuit Breakers

In this video, we'll take a closer look at the meaning behind these abbreviations and explain the types of circuit breakers they represent. By understanding the different types of circuit breakers on the market, you can make an informed decision and choose the right type for your specific requirements, thereby enhancing the protection of your electrical infrastructure.

Isolator vs Circuit Breaker

Although isolators and circuit breakers have similar functions in a circuit, they are two separate entities. This video explains you the difference between the two devices in terms of working, features, operation, affordability, etc. You can choose between them based on your specific requirements.

Essential Electronic Components in Electrical Systems

Welcome back to the ATO Channel, you go-to source for electrical and industrial automation insights.

Relays vs Circuit Breakers: What’s the Difference

In this video, we've described the difference between a relay and a circuit breaker as well as explaining their basic working and operation by means of animation. If you find this video helpful, please LIKE it and SHARE with your friends. Don't forget to check out the purchase links above if any featured items're of your interest.

Existing reviews of 13 amp 3 pole Miniature Circuit Breaker

Can these breakers be mounted horizontally?

For 63a 2p, can I put positive on the negative side and vice versa? Positive wires on the left and negative wires on the right? Can these breakers be mounted horizontally (Sideways)?

From: Hardy | Date: 26/04/2022

Was this review helpful? Yes No (0/0)

ATO Responded

No, a plus sign on the product is positive and minus sign is negative. The breaker will definitely work sideways. Code-wise, there may be restrictions but yes, it will work horizontally.

Write your review for 13 amp 3 pole Miniature Circuit Breaker
