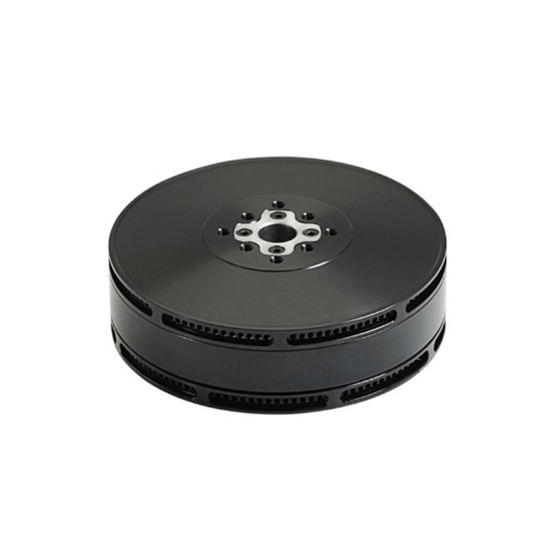

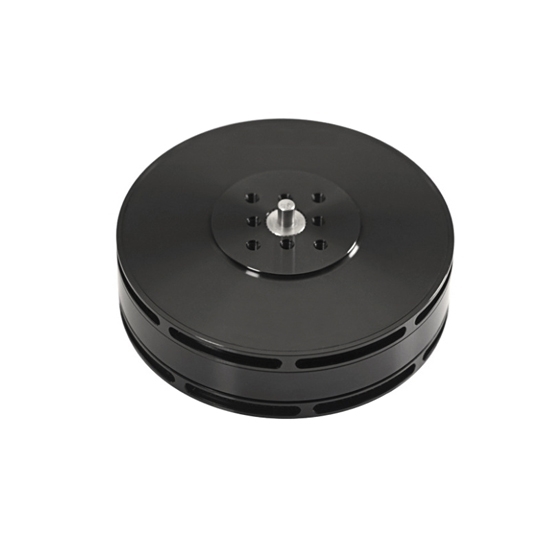

    130KV Brushless Motor for Drone, 6S/12S

    5 out of 5 based on 2 reviews | Write a review
    $291.94
    Low cost brushless drone motor for sale online. 100KV/130KV/260KV brushless motor should be attached to the 22~24 inch propeller, spin it and generate the thrust that your drone can fly. The 6s/12S heavy lift drone motor is widely used due to its lightweight, high efficiency, wide speed range and strong torque capability.
    *
    SKU: ATO-BDM-130
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Get a 130KV brushless motor for the multirotor drone. 100KV/260KV heavy lift drone motors are also available. 12S/6S brushless motor works with a 22~24 inch propeller that can make your drone fly. Brushless drone motors are suitable for various working environments.

    Specifications

    Model ATO-EOLO-7206
    Motor KV 100 130 260
    Number of Stator Slots 36 36 36
    Number of Rotor Poles 42 42 42
    Motor Size φ79.0*33.2mm φ79.0*33.2mm φ79.0*33.2mm
    Shaft Diameter 4.0mm 4.0mm 4.0mm
    Motor Silicone Wire 20AWG 100mm 20AWG 100mm 20AWG 100mm
    Phase-to-Phase Internal Resistance 297mΩ 297mΩ 45mΩ
    Motor Weight (Including Wires) 209g 200g 200g
    Rated Voltage (Lipo) 12S 12S 6S
    No-Load Current 0.3A/10V 0.5A/10V 1.1A/10V
    Maximum Continuous Power 900W 1600W 968W
    Maximum Continuous Current 18A/30s 32A/30s 32A/30s
    Recommended ESC 40A 40A 50A
    Recommended Propeller C24*7.5 C24*7.5 C24*7.5


    Features

    • High-efficiency 100KV/130KV/260KV brushless motor is designed for multi-rotor drones.
    • The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
    • It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

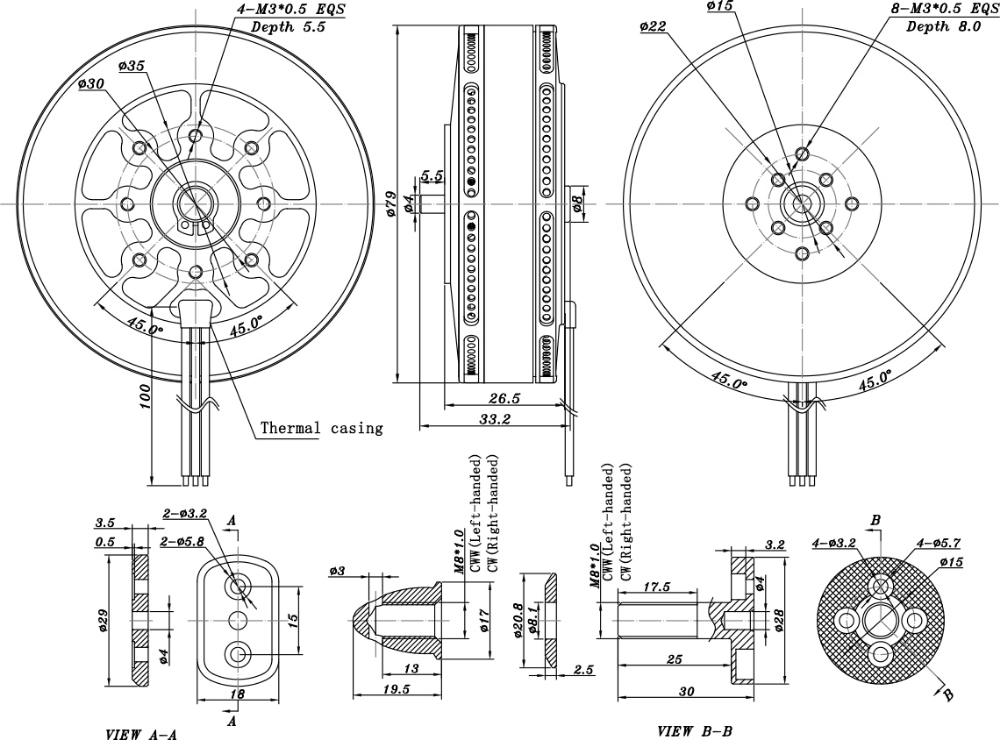

    Dimensions (Unit: mm)

    130KV brushless motor dimension

    Tips:  Multi-rotor Drone vs. Fixed-wing Drone

    Multi-rotor: Multi-rotor refers to a rotorcraft with more than 3 axes, which adjusts the pulling force and torque through the relative rotation speed between the paddles, and controls the hovering, rotation, or flight of the aircraft. The multi-rotor UAV is the most widely used UAV style. It is easy to use, easy to maintain and has a free view of the brushless 360° panoramic gimbal. It is the main force in aerial photography. The large six-axis UAV has a load of 30 kg at the helicopter s level. The 130KV brushless motor is designed for multi-rotor drones.

    Fixed wing: Fixed-wing refers to an aircraft that is heavier than air flying in the atmosphere by the forward thrust or pulling force generated by the power device, and the lift generated by the fixed wing of the fuselage. Fixed-wing UAVs are fast, have a long-range, and have a high ceiling. They are difficult to carry and are suitable for surveying, mapping and large-scale shooting. Not suitable for aerial photography in film and television.

    Existing reviews of 130KV Brushless Motor for Drone, 6S/12S
    About CAN
    Is it possible to control 8 motors through CAN or is the limit 4 with the two dual ESCs?
    From: Rache | Date: 11/10/2024
    Was this review helpful? Yes No (0/0)
    ATO Responded
    CAN can drive 4 motors or 8 motors. Both are possible.
    Performance for Aerial Photography
    The 130KV rating provides an exceptional balance of speed and stability, allowing me to capture smooth and professional-grade shots. One of the key advantages is its compatibility with both 6S and 12S batteries, offering versatility and extended flight options.
    From: Eeman | Date: 06/09/2023
    Was this review helpful? Yes No (0/0)
    Load more reviews...
