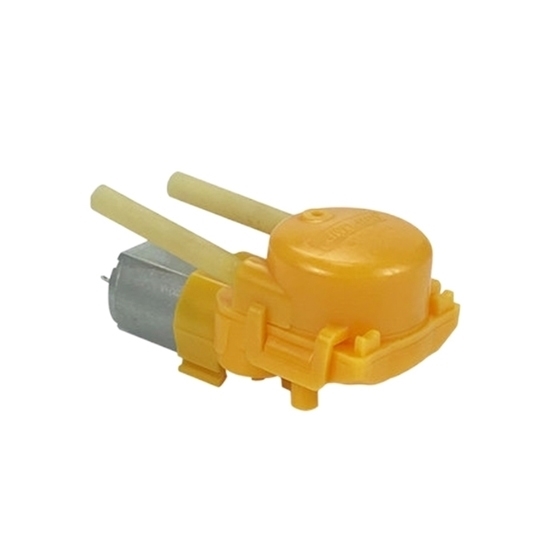

12V High Precision Peristaltic Pump, 11 mL/min Flow Rate

12V high precision peristaltic pump price is reasonable. Tube inlet and outlet directions can be adjusted according to user's applications (can be rotated 180°). 12V peristaltic pump applys in kitchen appliances, such as smart toilet lid.

Features:

• Tube inlet and outlet directions can be adjusted according to your applications (can be rotated 180 °).
• Fine workmanship, compact and compact structure of high precision peristaltic pump.
• Light weight, only 41g.
• Low noise, suitable for supporting small household appliances.
• 3-roller low pulse design, suitable for micro dosing.
• 12V peristaltic pump with high-speed micromotors suitable for interval operation.
• The back of the pump body is designed with mounting holes, which can be directly fixed on your equipment.

Specification:

• Model: ATO-PP-WX1ZL
• Rated Power: DC 6V, 12V
• Power: ≤4W
• Voltage RPM: 116 rpm
• Tube Type: Silicone, BPT
• Flow Rate: 13-26 mL/min, 12-23 mL/min, 11-28 mL/min, 10.5-28 mL/min
• Net Weight: 41g
• Noise: ≤55 dB
• Outlet Pressure: ≤0.1 MPa
• Operating Environment: Temperature 0-60 ℃, relative humidity less than 85%

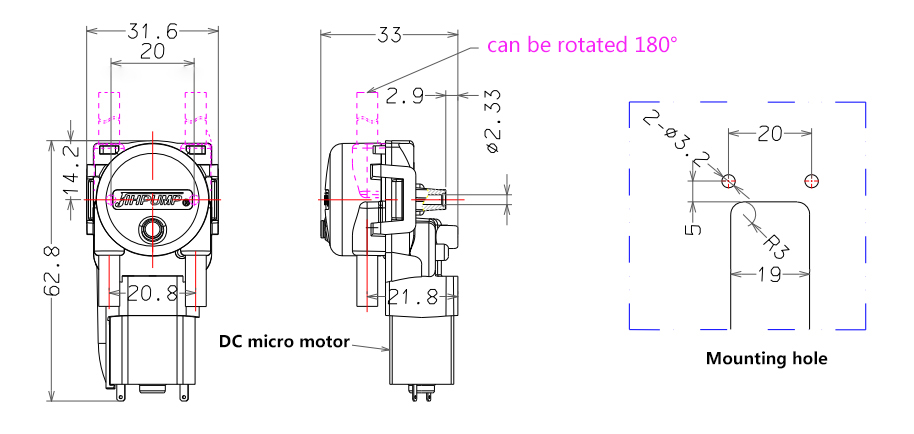

Dimension (Unit: mm)

Application:

Tips: Types of Peristaltic pump

Peristaltic pump is used to obtain the required flow, so according to the operation and use of peristaltic pump, it is divided into:

• Speed-regulating peristaltic pump. With basic control functions of peristaltic pump, display speed, start and stop, direction, speed adjustment, filling and empting, power off memory, external control input and other functions.
• Flow type peristaltic pump. In addition to the basic function, increase the flow display, flow correction, communication and other functions.
• Distribution peristaltic pump. In addition to the basic control function, increase the flow display, flow correction, communication, liquid distribution, suction, output control and other functions.
• Customized (OEM) peristaltic pump. With a series of different flow range of peristaltic pump head, customers can according to their own equipment needs, design different peristaltic pump drive circuit supporting use.
