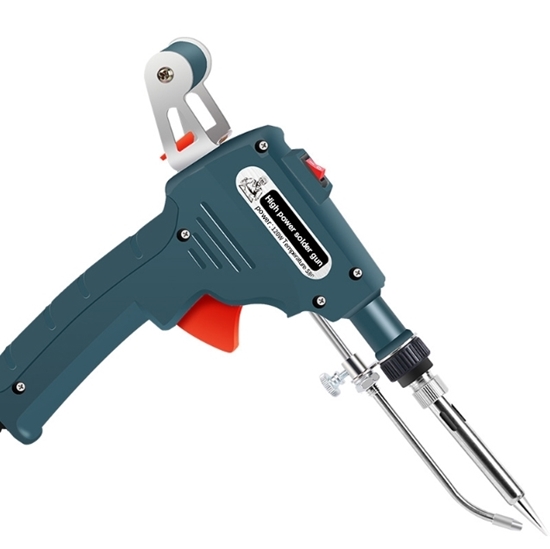

120W Handheld Automatic Soldering Gun

The 120W handheld soldering iron gun at a low price, it features an ergonomic spanner design that fits comfortably into the curves of your hand, making it easy to use over time. Whether you are a DIY enthusiast, a professional electrician or a hobbyist, the portable welding machine is an indispensable tool for all your soldering needs.

Specification

• Model: ATO-SD-120W
• Power: 120W
• Working Temperature: 580 °C
• Voltage: 110/220V
• Power plug: Euro/US/UK/AU
• Dimension: 205* 150* 42mm
• Applicable Wire Diameter: 0.5mm~1.2mm
• Weight: 0.28kg

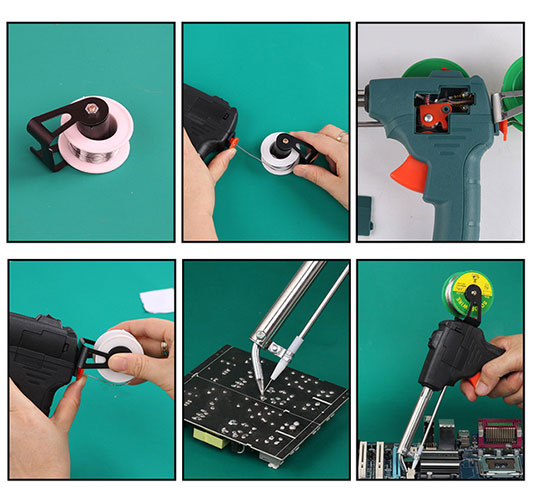

 Usage Introduction

1. Attaching the solder wire to the holder.
2. Press down on the tin inlet to straighten the wire.
3. Detachable side door to thread directly out to the tin nozzle.
4. Attaching the wire holder.
5. Observe that the wire reaches the soldering iron tip.
6. Complete the steps and start soldering.

Sockets

Applications

Soldering guns are widely used in the manufacture and repair of electronic devices, such as computers, radios, and televisions. They are also used in automotive and industrial settings, where they are used to repair electrical wiring, circuit boards, and other components. Additionally, soldering guns are used in jewelry making and metalworking, where they are used to join metal components together for decorative and functional purposes.

Tips: What is a solder gun?

A solder gun, also known as a soldering gun, is a tool used in electronics and electrical work to heat up and melt metal solder, which is then used to join two metal surfaces together. It consists of a heating element, a trigger, and a tip that heats up quickly and can be used to apply heat directly to the solder joint. Solder guns are commonly used for larger jobs, such as wiring and electrical repairs, and are typically powered by electricity or batteries.
