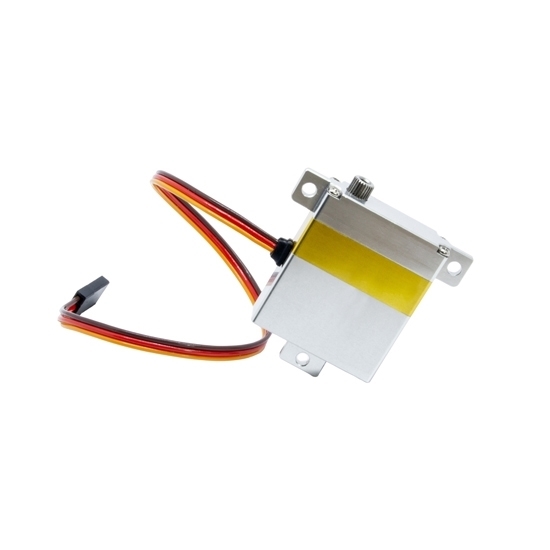

10 kg·cm (1 Nm) RC Servo Motor, 6V/ 7.4V/ 8.4V

5 out of 5 based on 1 reviews | Write a review

$123.19

10 kg·cm (1 Nm) digital RC servo motor for sale, selectable voltage of 6V/ 7.4V/ 8.4V, stall torque 7.5kg·cm, 10kg·cm or 11.5kg·cm. This radio control servo motor is widely used in robotics, RC cars, airplanes, drones, and other mechanical systems requiring precise control of position, speed, and torque.

Operating Voltage *

SKU: ATO-SERVO-RC10

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

10 kg·cm torque remote control servo with 7.4V operating voltage is ideal for medium-duty applications like controlling robotic arms, steering mechanisms, and controlling movement in small to medium-sized mechanical systems.

Specification

Model	ATO-FT3329M
Electrical Specification	Operating Voltage		6V	7.4V	8.4V
	No Load Speed		0.105sec/60° (95 rpm)	0.083sec/60° (120 rpm)	0.071sec/60° (140 rpm)
	Running Current (No Load)		100mA	120mA	135mA
	Stall Torque (at Locked)		7.5kg·cm	10kg·cm	11.5kg·cm
			104.33oz. in	139.11oz. in	159.98oz. in
	Stall Current (at Locked)		2500mA	3000mA	3300mA
	Idle Current (at Stopped)		6mA	6mA	6mA
	Input Voltage		4V-9V
	Rated Torque		2.4kg·cm	3.3kg·cm	3.8kg·cm
	Rated Current		800mA	1000mA	1100mA
Mechanical Specification	Size		301035.7mm
	Limit Angle		No Limit
	Case Material		Aluminum
	Gear Material		Metal Gear
	Bearing Type		Ball Bearings
	Angle Sensor	Type	Carbon-Film Potentiometer
	Connector & Cable	Type	JR
		Material	PVC
		Length	25cm
		Pin Definition	1: Signal; 2: Vcc; 3: GND
	Weight		28.3g ±1g
	Horn Type		25T/ 4.95mm
	Gear Ratio		1/252
	Back Lash		≤1.0°
	Rocker Phantom		0°
	Rocker Screw		M2.3*5
	Motor		Coreless Motor
	Storage Temperature Range		-30℃ ~ 80℃
	Operating Temperature Range		-20℃ ~ 60℃
	Temperature Range		25℃ ± 5 ℃
	Humidity Range		65% ± 10%
	Certificate		EMC, ROHS
Control Specification	Command Signal		Pulse Width Modification (PWM)
	Control System Type		Digital Comparator
	Operating Travel		250° (at 500 to 2500 μsec)
	Left & Right Travelling Angle deviation		≤5°
	Centering Deviation		≤2°
	Neutral Position		1500 μsec
	Dead Band Width		≤8 μsec
	Rotating Direction		Counterclockwise (at 1500 to 2000 μsec)
	Pulse Width Range		500 to 2500 μsec
Reliability Testing	Life Test		＞100000 Times
	Motor Noises		50 ± 5dB
	Servo Noises		70 ± 5dB

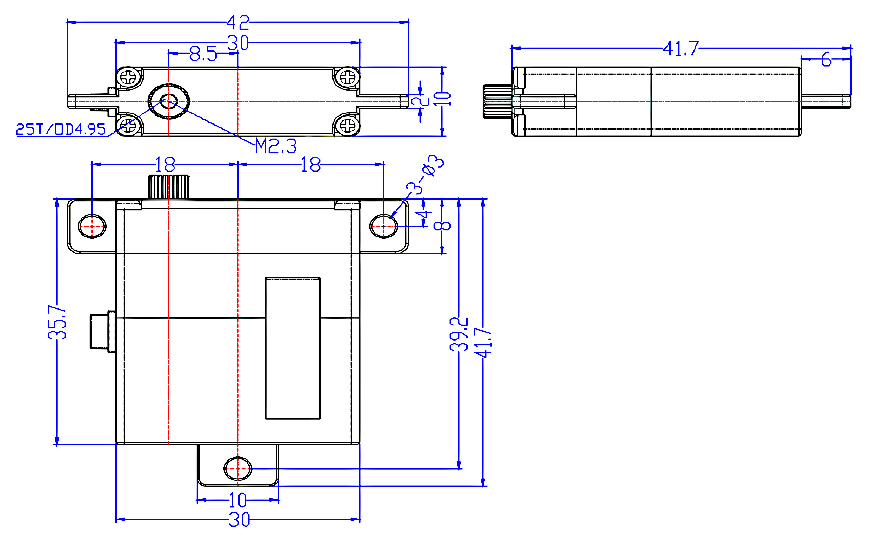

Dimensions (Unit: mm)

Tips: How to choose an RC servo motor?

Choosing the right radio control servo motor depends on several factors, including the application, required torque, and speed. Here are some tips:

Torque: Determine the amount of torque needed for your project. Higher torque servos are required for heavy-duty applications like robotics or large RC vehicles. Check the servo's torque rating (usually in kg-cm or oz-in).
Speed: Consider how fast the servo needs to move. Speed is often given in seconds per 60 degrees of movement. Faster servos are better for high-speed applications.
Voltage and Compatibility: Ensure the servo's voltage is compatible with your power supply. Most remote control servos work with 4.8V to 6V, but some high-performance models may require higher voltages.
Size and Weight: Make sure the servo fits within the space constraints of your project and doesn’t add unnecessary weight.
Durability: Choose a digital RC servo with good build quality and materials (e.g., metal gears) if the application demands high durability.
