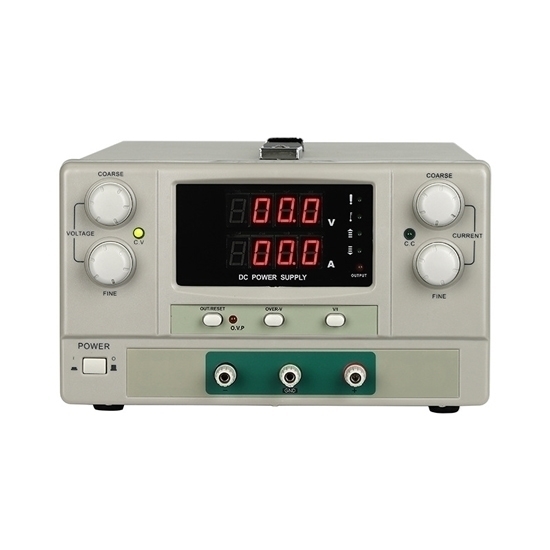

30 volt 10 amp variable linear DC power supply caters to a diverse array of applications in electronics, prototyping, and testing. Its linear configuration plays a pivotal role in minimizing output noise, thereby augmenting the stability of interconnected circuits. This adjustable linear DC power supply offers precise adjustments for voltage and amperage settings, ensuring optimal performance and safety for connected devices.
Specification
Model |
ATO-JK3010S |
Input Voltage |
110V or 220V AC (+/- 10%) |
Output Voltage Range |
DC 0-30V |
Output Current Range |
0-10A |
Output Power |
300W |
Frequency |
50Hz/60Hz |
Output Type |
Dual |
Display |
3 digit |
Display Accuracy |
≤ ±0.1%+2d |
Voltage Display Resolution |
10mV |
Current Display Resolution |
10mA |
Efficiency |
>65% |
Voltage Regulation |
Load Regulation (CV) |
1×10-4+8mV |
Line Regulation (CV) |
1×10-4+3mV |
Ripple & Noise (P-P) |
0.5mV |
Temperature Coefficient |
300PPm/℃ |
Current Regulation |
Load Regulation (CC) |
≤5mA |
Line Regulation (CC) |
2×10-4+3mA |
Temperature Coefficient |
500PPm/℃ |
Others |
Protection |
Over Load and Over Voltage Protection |
Recovery Time |
≤100µs |
Operating Ambient |
0℃ to + 40℃/ 85%RH |
Storage Ambient |
-10℃ to + 80℃/ 80%RH |
Warranty |
12 Months |
Size |
303 (L) x 255 (W) x 155 (H) mm |
Weight |
15kg |
Detail
Tips: Are there portable options for variable linear DC power supplies?
Yes, portable variable linear DC power supplies are available, offering flexibility for various applications. These compact devices allow users to adjust output voltage and current levels, making them suitable for testing, electronics prototyping, and fieldwork. Portable models often feature lightweight designs, built-in displays, and user-friendly controls for easy operation. Additionally, some units offer multiple output channels and protection features to ensure the safety of connected devices. These power supplies typically come with rechargeable batteries or support external power sources, enhancing their portability. Engineers, hobbyists, and technicians find these portable options invaluable for on-the-go power supply needs, enabling them to work efficiently in diverse settings without compromising on precision and control.
