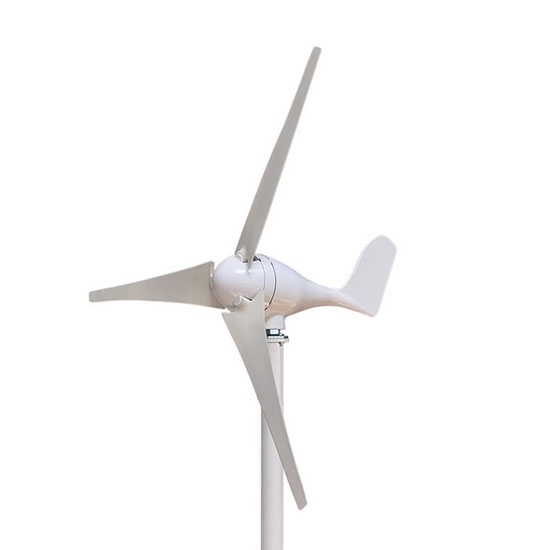

100W Horizontal Axis Wind Turbine, 12V/24V

The 100W horizontal axis turbine is designed for easy installation and maintenance. The compact size of the horizontal axis turbine makes it ideal for urban areas or locations where space is limited.

Specification:

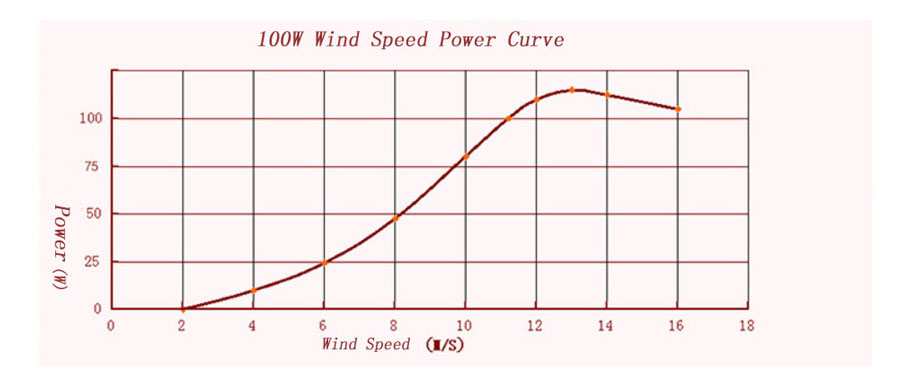

100W Wind Turbine Power Curve

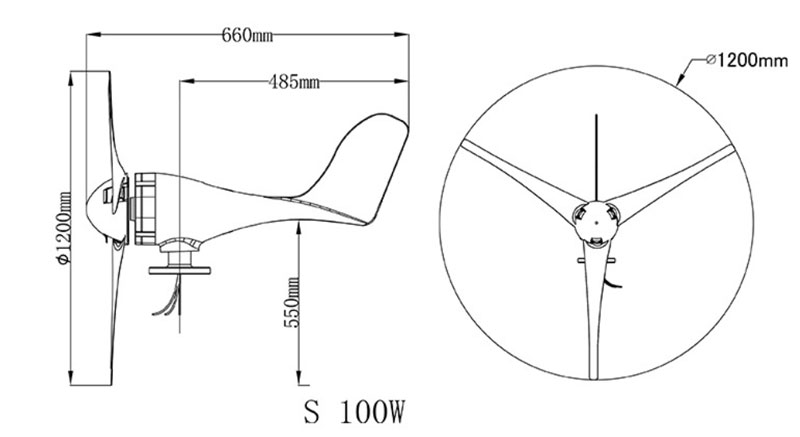

Dimensions (Unit=mm)

Features

1. The starting speed is slow, and 3 or 5 blades can be selected in different wind speed regions, and the wind energy utilization rate is high.
2. Easy to install, tube or flange connection is optional.
3. The blade adopts the new technology of precision injection molding, with optimized aerodynamic shape and structure, which improves the wind energy utilization rate and annual output.
4. Cast aluminum alloy body, can rotate 2 bearings, can resist strong wind, safer operation.
5. Patented permanent magnet alternator with special stator, which effectively reduces the torque and matches the wind turbine with the generator to ensure the performance of the whole system.

100W Wind Turbine (Flange Seat) Exploded View

1. Wind turbine body, 2. Wind turbine flange seat, 3. Tower, 4. Wind turbine shaft, 5. Wind hub, 6. Wind wheel, 7. Lock nut, 8. Fairing, 9. Bolt, 10. Flat washer, 11. Elastic washer, 12. Nuts, 13. Stainless steel nut, 14. Anti-loose nut, 15. Rubber pad.

Power Curve

Tips: What is wind turbine and how does it work?

Wind power is the conversion of the kinetic energy of the wind into mechanical kinetic energy and the conversion of mechanical energy into electrical kinetic energy. The principle of wind power generation is to use the wind to drive the rotation of windmill blades, and then increase the speed of rotation through the speed increasing machine to promote the generator to generate electricity. With current windmill technology, a breeze of about three meters per second (the size of the breeze) can start generating electricity. Wind power is becoming a craze in the world because it does not use fuel and produces no radiation or air pollution.
