100μF 35V Aluminum Electrolytic Capacitor

5 out of 5 based on 1 reviews | Write a review
$1.14
Aluminum electrolytic capacitor with cost-effective price for sale. High voltage electrolytic capacitor provides 100μF capacity, 35V rated voltage, high voltage electrolytic capacitor with cap. tolerance ±20%, 10% dissipation factor. The electrolytic capacitor can be applied for air conditioners, tape recorders, washing machines, communication machines and other household appliances.
SKU: ATO-EC-KF101M035F
This product has a minimum quantity of 100
30-day Returns
Free Shipping
Delivery date: 6-12 days

High voltage capacitor with direct plug installation type, the size is 6.3*11 mm, 3000 hours endurance, operating tempertaure -40~105℃. Power capacitor providing good electrical performance, wide application range and high reliability.

Features

  • Endurance: 105℃- 2000 hours up to 5000 hours
  • Low impedance and high ripple current
  • High reliability
  • Wide voltage range

Specification

Model ATO-EC-KF101M035F
Series Low impedance 105°C type
Capacity 100
Rated voltage 35V
Installation Type Direct plug
Size 6.3*11 mm
lead spacing 2.5 mm
Operating temperature -40~105℃
Cap. tolerance (C) ±20% (120Hz 20℃)
Dissipation factor (tanδ) 10%
Low temperature characteristic at 120Hz (Z ratio max.) 3 (Z-25℃/ Z+20℃)
Leakage current (Lleak) 0.01*CR*Vor 3  * after 2 minutes
Enduarance (105℃) Test 3000h
∆C 20% of initial measured value
tanδ ≤200% of specified measured value
Lleak ≤ the specified measured value
Shelf life (105℃) Test 1000h
∆C 20% of initial measured value
tanδ ≤200% of specified measured value
Lleak ≤ the specified measured value

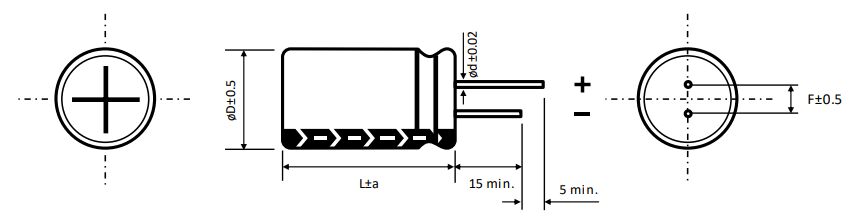

Dimension (mm)

Electrolytic capacitor dimension

Model Dimension (mm)
 KF101M035F D 8
F 3.5
∅d 0.5
a 1.5

Tips: How to Choose Aluminum Electrolytic Capacitor?

The voltage that the capacitor actually has to withstand in the circuit cannot exceed its withstand voltage value. In the filter circuit, the withstand voltage value of the capacitor should not be less than 1.42 times the RMS value of the AC. When using electrolytic capacitors, be careful not to reverse the positive and negative poles.

Different circuits should use different types of capacitors. Mica, high-frequency ceramic capacitors can be used for the vibration circuit, paper, polyester, mica, electrolytic, ceramic capacitors can be used for DC blocking, electrolytic capacitors can be used for filtering, and polyester, paper, ceramic, electrolytic capacitors can be used for bypass.

Before installing the capacitor into the circuit, check whether it has short circuit, open circuit and leakage, and check its capacitance value. When installing, make it easy to see symbols such as the type, capacity, and withstand voltage of the capacitor for verification.

Existing reviews of 100μF 35V Aluminum Electrolytic Capacitor
Great Deal !
I needed aluminum electrolytic capacitors for my electronic hobby, they are a good source and I like the packaging. So far working as expected!
From: Mar | Date: 29/06/2022
Was this review helpful? Yes No (0/0)
