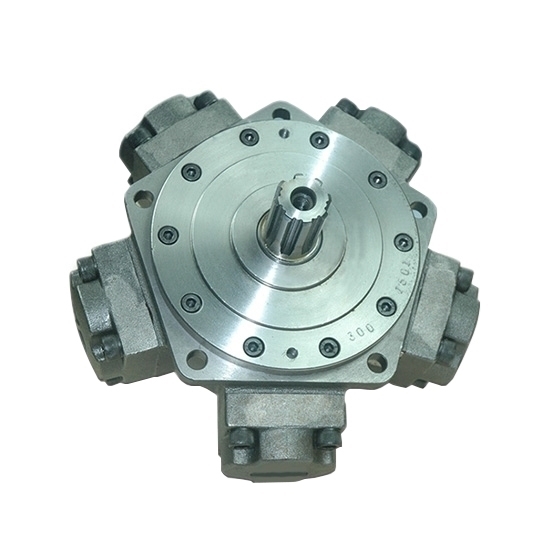

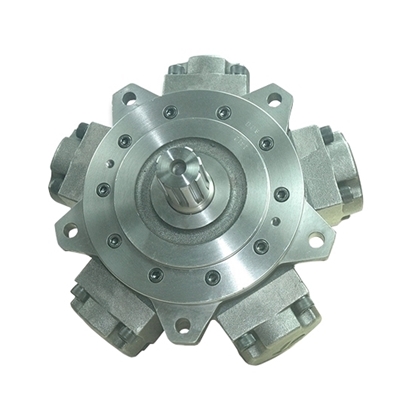

10 hp 1000~1500 rpm Radial Piston Hydraulic Motor, 20MPa

60-160cc displacement radial piston hydraulic motor has optional working power of 8/9/10 hp (6000/7000/8000W), rated pressure 2030~2320 psi, rated torque 150~326N.m, speed range 15~1000/1250/1500 rpm. High torque, high speed and high efficiency hydraulic radial piston engine.

Specification

Features

• The radial piston hydraulic motor is a large torque motor with crankshaft and rod.
• The shell of radial piston hydraulic motor is extruded and nitrided, which is resistant to wear, fatigue and high temperature.
• The plunger body is nitrided, added with specially developed piston rings, and good wear resistance.
• Oil seal of the radial piston hydraulic motor uses skeleton oil seals, high temperature resistance, high pressure, and it is not easy to leakage.
• Applications of the radial piston hydraulic motor include injection molding machines, ship deck machinery, construction machinery, lifting vehicles, heavy metallurgical machinery, petroleum mine machinery, light equipment, board, drilling machines and other hydraulic transmission systems and equipment, etc.

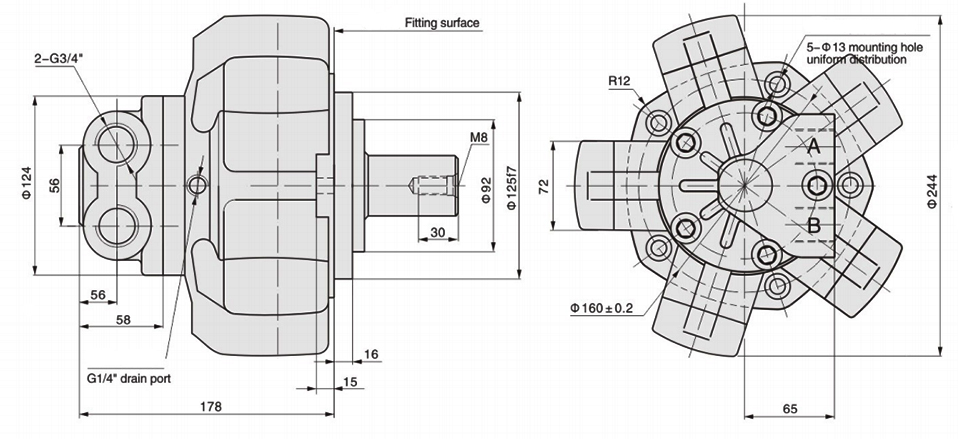

10 hp Radial Piston Hydraulic Motor Dimensions Diagram (Unit: mm)

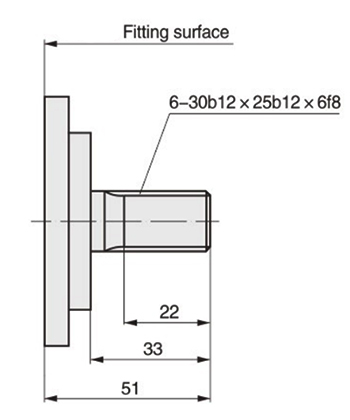

Standard Involute Spline

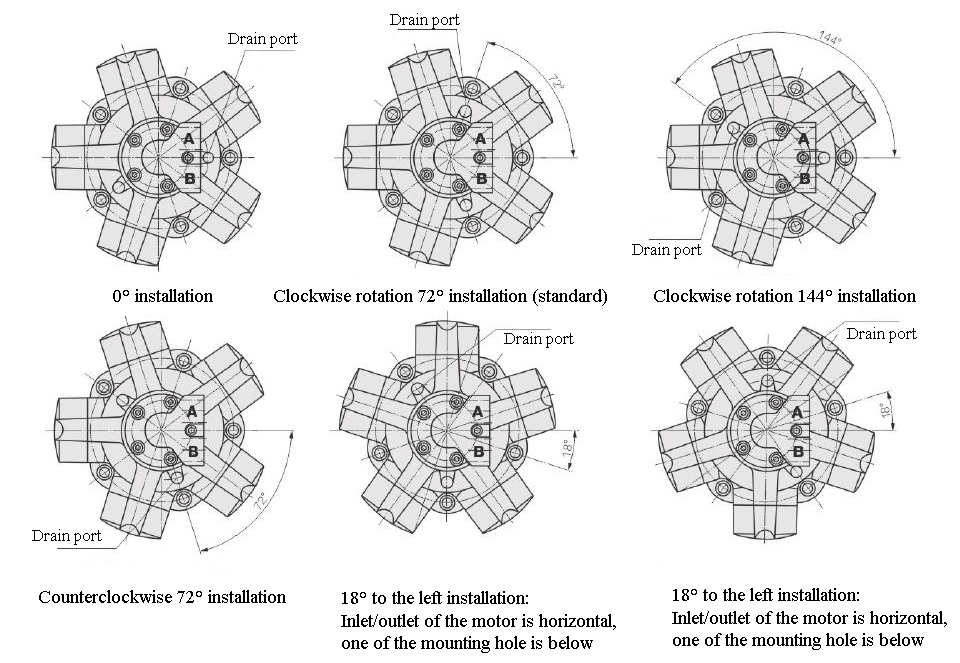

10 hp Radial Piston Hydraulic Motor Mounting Diagram

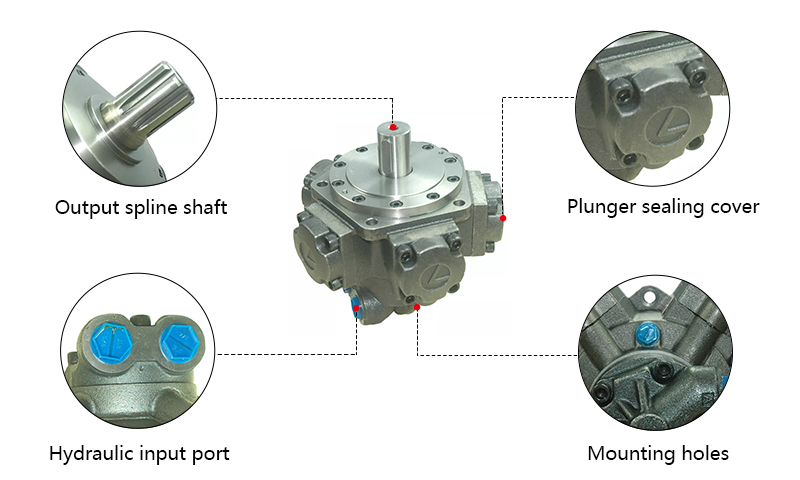

Details

Tips: 3 calculation formulas when using radial piston hydraulic motor

1. Actual output torque: M = 0.159 (P1 - P2) * V *ηm (N.m)
   P₁, P₂: Inlet and outlet pressure ( MPa )
   V: Displacement (cc/r)
   ηm: Mechanical efficiency (%)
2. Output power
   N = M.n/9550 (kW)
   N = q (P₁-P₂)/60000 * ηm*ηv (kW)
   n: Speed (rpm)
   q: Input flow (mL/min)
   ηv: Volumetrical efficiency (%)
3. Speed
   n = q/V * ηv (rpm)
