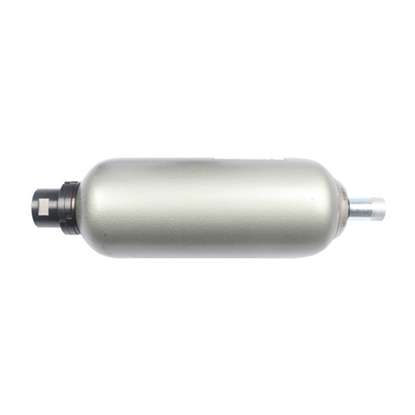

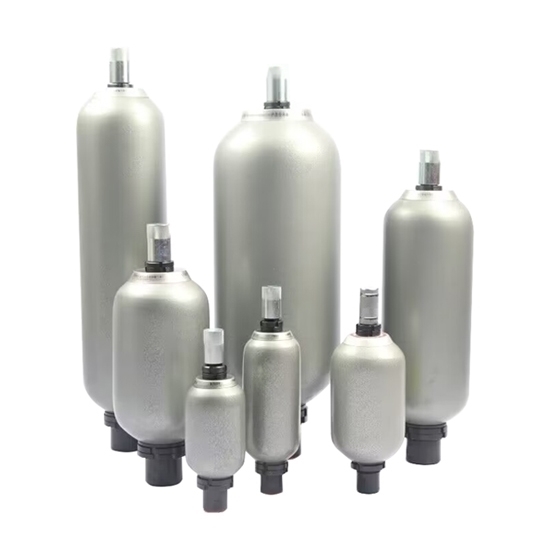

    10 Gallon Hydraulic Bladder Accumulator

    $1,850.88
    Low cost 10 gallon (40L) hydraulic accumulator uses a flexible bladder to separate hydraulic oil and gas. Bladder type accumulator is widely used in aerospace applications such as landing gear systems and hydraulic flight control systems to provide energy storage and pressure regulation.
    *
    SKU: ATO-HBA-40L
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Hot selling 10 gallon hydraulic bladder accumulator can store pressurized hydraulic oil and nitrogen to provide energy or power to the hydraulic system, widely used in construction, mining, manufacturing and transportation industries. 40L large capacity, good price, easy to install and use.

    Specifications

    • Model: ATO-NXQ-A-40/31.5-L-Y
    • Nominal Capacity: 40L (About 10 gallon)
    • Nominal Pressure: 31.5Mpa
    • Connection Method: Thread
    • Material: 35CrMo Steel
    • Bladder Material: Nitrile Rubber
    • Working Medium: Hydraulic Oil, Nitrogen

    Precautions

    • Welding and machining are not allowed on the hydraulic accumulator shell.
    • The hydraulic accumulator capsule is only allowed to be filled with nitrogen, and oxygen and other flammable and corrosive gases are not allowed.
    • Hydraulic accumulators should be installed in hydraulic systems with overflow valves or other safety valves.
    • It is strictly forbidden to use overpressure.

    Dimension

    Hydraulic bladder accumulator dimension

    Volume DM (Connection Size H φ Weight
    40L M60*2 1690mm 219mm 104kg


    Working Principle

    Hydraulic bladder accumulator working principle

    Note: The hydraulic accumulator is equipped with a one-way gas valve and can be recharged with gas. The silver one is the protective cover of the gas valve.

    Matching One-Way Valve Specifications

    • Inflatable Tool Interface Size: M14*1.5
    • Bladder Accumulator Interface Size: M16*1.5

    Applications

    Hydraulic bladder accumulator is a type of hydraulic accumulator that use a flexible bladder to separate gas and hydraulic fluid, widely used in hydraulic systems in aerospace, automotive, marine industries and industrial applications.

    hydraulic accumulator applicationsTips: What can a  hydraulic bladder accumulator store?

    A hydraulic bladder accumulator can store pressurized fluid, usually hydraulic fluid, in the flexible bladder. The bladder separates the pressurized fluid from the gas side of the accumulator. The amount of fluid that can be stored in a hydraulic bladder accumulator depends on the size and capacity of the accumulator. Hydraulic bladder accumulators can be used to store energy, absorb shocks and pressure spikes, and provide a ready supply of pressurized fluid when it is needed in hydraulic systems. It should be noted that the working medium of the ATO hydraulic bladder accumulator can only be hydraulic oil and nitrogen.
