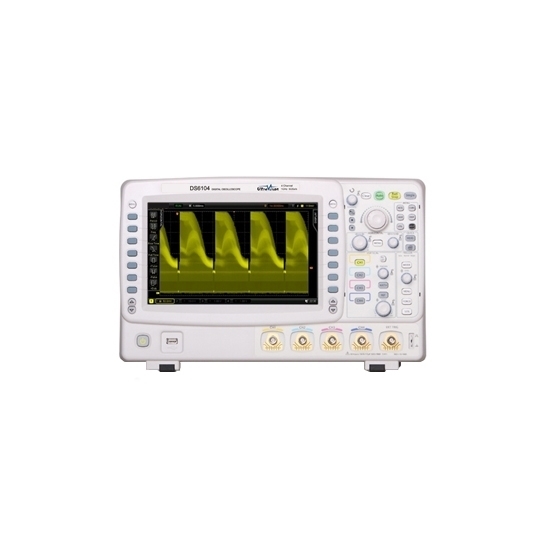

    1 GHz Digital Oscilloscope, 2/4 Channels, 5 GSa/s

    5 out of 5 based on 1 reviews | Write a review
    $9,374.06
    ATO provides Rigol Technologies' 2 or 4 channels cheap price digital oscilloscope with 1 GHz bandwidth, max. real-time sample rate up to 5 GSa/s. The best oscilloscope also offers a 180,000 wfms/sec waveform capture rate with a memory depth of 140 Mpts.
    *
    SKU: ATO-SCOPE-1G
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1 GHz Digital Oscilloscope Features

    • 1 GHz bandwidth, 2 or 4 channel model selectable
    • Up to 5GSa/s sample rate and 180,000 wfms/s per sencond waveform capture rate
    • Standard 140 Mpts deep memory
    • Up to 200,000 frames for waveform record and replay
    • 10.1 inch WVGA (800X480) display
    • Various trigger functions, including multiple protocol triggers
    • Also capable of identifying the probe type automatically
    • Standard parallel decoding, multiple serial decoding options available

    Models and Key Specifications

    Brand Name RIGOL
    Model DS6102 DS6104
    Number of Analog Channels 2 4
    Bandwidth 1 GHz
    Max. Real-time Sample Rate Up to 5 GSa/s
    Max. Memory Depth Up to 140 Mpts
    Max. Waveform Capture Rate Up to 180,000 wfms/s per sencond
    Real-time, Hardware Waveform Recording, Playback, and Analysis Functions Analog channel up to 200,000 frames
    Standard probes 600 MHz BW Passive Probes, 2 sets for 2 channel model, 4 sets for 4 channel model
    1.5 GHz BW Passive Probe, 1 set for DS6102, 2 sets for DS6104
    Dimension Width x Height x Depth = 399 mm x 255.3 mm x 123.8 mm
    Weight 7 Kg (Package Included)
    Packing Included Digital Oscilloscope; Passive Probes; USB Cable; Power Cord;  Quick Guide

    RIGOl DS6000 Series Digital Oscilloscope Specs PDF

    Digital Oscilloscope Detail

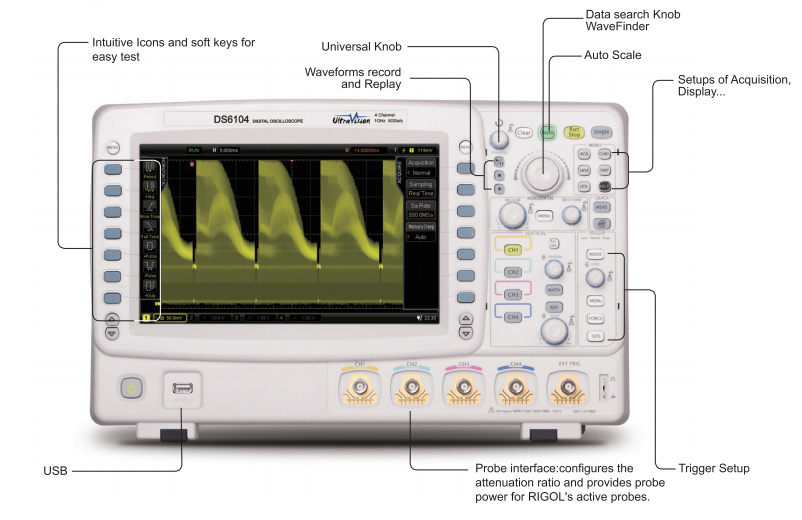

    DS6000 Digital Oscilloscope Details

    Tips: What is an Oscilloscope?
    An oscilloscope is a widely used electronic measuring instrument. It can transform invisible electrical signals into visible images, enabling people to study the changing processes of electrical phenomena. The oscilloscope uses a narrow electron beam consisting of high-speed electrons to create a tiny spot on a screen coated with a fluorescent material. Under the action of the measured signal, the electron beam is like the tip of a pen, which can draw the curve of the instantaneous value of the measured signal on the screen. Use the oscilloscope to observe waveforms of various signal amplitudes over time. You can also use it to test various power levels, such as voltage, current, frequency, phase difference, amplitude, and so on.

    Functions and Benefits

    DS6000 digital oscilloscope functions

    DS6000 digital oscilloscope functions 1

    Existing reviews of 1 GHz Digital Oscilloscope, 2/4 Channels, 5 GSa/s
    Great Oscilloscope
    I bought this 1 GHz digital oscilloscope for firmware development from ATO. This oscilloscope clearly has a lot of features for the price. I use 4 channels when I want to look at signal relationships and logic. With the good control arrangement, the user interface is friendly after you setting all things up. It is a wonderful product.
    From: P. Smith | Date: 27/02/2019
