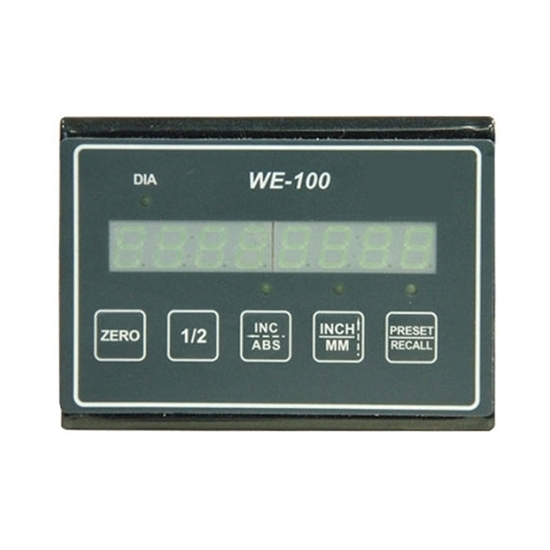

    1 Axis Digital Readout, DRO for Mills, Lathes

    1 Axis Digital Readout, DRO for Mills, Lathes

    4.8 out of 5 based on 5 reviews | Write a review
    $358.46
    Single DRO axis digital readout, resolution 0.05um, 0.1um, 0.2um, 0.5um, 1um, 2um, 5um, 10um, 20um or 50um. Input voltage DC 9V, 50Hz-60Hz, for milling machine and metal lathes, low cost and free shipping.
    SKU: ATO-DR-WE100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    1 axis digtal readout is suitable for the single shaft displacement measurement system, grating measurement system to analyze the displacement measurement data and processing, to compensate the linear scale.
    After purchasing a ATO DRO digital readout, you can buy a linear scale for milling machine, lathes or table saw fence.

    Specifications

    Model ATO-DR-WE100
    Axis number 1 Axis
    Resolution 0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm
    Input Signal TTL, Frequency < 2MHZ, Current > 1mA
    Input Voltage Range DC 9V
    Power Less than 10W
    Max Measuring Length 900mm
    Frequency 50 Hz - 60 Hz
    Anti Interference Capability Over 2200V
    Dimension 104mm x 77mm x 31.5mm

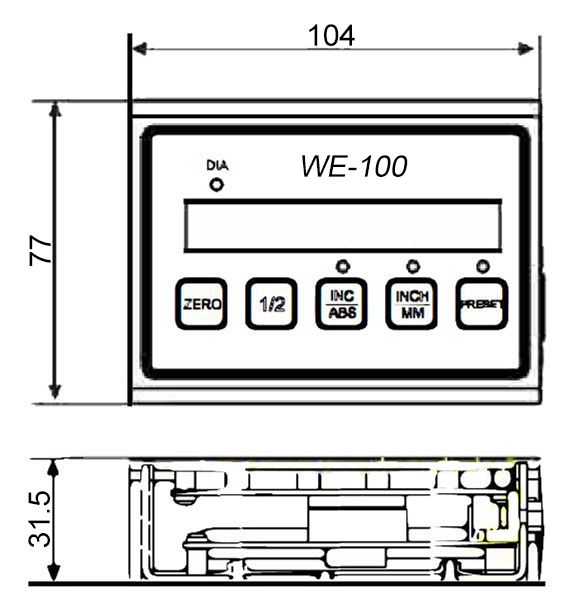

    Dimension (unit: mm)
    1 axis gidital readout

    Existing reviews of 1 Axis Digital Readout, DRO for Mills, Lathes
    High accuracy and clear display
    I use this digital readout on my lathes and milling machines. It provides very accurate readings for my milling machines and lathes, especially when machining precision parts, and the accuracy of the digital display allows me to accurately control the depth and position of each cut.
    From: Sevine | Date: 10/11/2024
    Was this review helpful? Yes No (0/0)
    Easy to use with a user-friendly interface
    The 1-axis digital readout is also very versatile, with the ability to be used on both milling machines and lathes. Easy to install and provides real-time measurements of the position of the milling machine's axes. Worth purchasing!
    From: Sharon | Date: 16/02/2023
    Was this review helpful? Yes No (0/0)
    Works good and is very reliable
    This 1-axis digital readout is probably much better than other readouts as far as readability than others. I was impressed. The accuracy is also without question. It is also very intuitive and easy to use.
    From: Mar | Date: 30/06/2022
    Was this review helpful? Yes No (0/0)
    Mounted on my machining lathe for use
    I installed digital readout on my gunsmithing lathe and it worked well and improved the accuracy of the parts I made. I checked the operation with a dial indicator and it is very accurate and the price is good.
    From: Faustino | Date: 29/04/2022
    Was this review helpful? Yes No (0/0)
    Receiving soon, good service
    I'm very satisfied with this 1 Axis digital readout. I completed the installation with the help of ATO. Thank you for your service. I am very happy. DRO is really accurate. I believe it can beat many similar products on the market.
    From: Renan | Date: 11/07/2019
    Was this review helpful? Yes No (0/0)
    Load more reviews...
