1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm

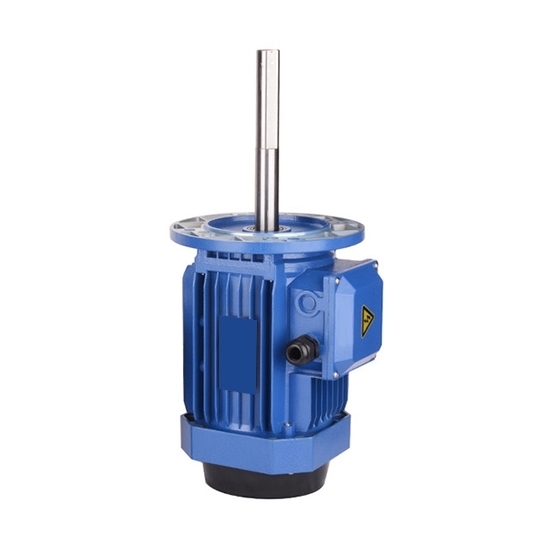

Picture of 1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm
Picture of 1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm

1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm

5 out of 5 based on 2 reviews | Write a review
$416.46
AC induction motor with economical price. 180mm long shaft, optional output power 1/1.5/2 hp, speed 2/4/6 poles, maximum 2800 rpm, max torque 2.3 N.m, working voltage single phase/3-phase 100-380V. Long shaft induction electric motor especially for high temperature (≤ 200℃).
*
*
*
*
SKU: ATO-LSIM-15180
30-day Returns
Free Shipping
Delivery date: 6-12 days

Long shaft induction motor for sale, shaft length 180mm, working power 1/1.5/2 hp for selection, power supply single phase/3-phase 100~380V, speed 2/4/6 poles, 910~2800 rpm. High temperature AC induction electric motor with long shaft, applications include oven, low temperature quick freezing, constant temperature box, glass machinery, tunnel furnace, etc.

Specification

Model ATO-B5F-ABB
Rated Voltage Single Phase 100-120V, 50/60Hz
Single Phase 220-230V, 50/60Hz
3-Phase 220V, 50/60Hz
3-Phase 380V, 50/60Hz
Working Temperature ≤ 200℃
Output Power Speed (rpm) Current (A) Power Factor (cos Φ) Efficiency (%) Rated Torque (N.m) Start Current (A) Locked-Rotor Torque (N.m) Max Torque (N.m)
2 Poles
1 hp (750W) 2800 1.8 0.84 75 2.53 6.5 2.2 2.3
1.5 hp (1100W) 2800 2.5 0.86 77 3.71 7 2.2 2.3
2 hp (1500W) 2800 3.4 0.85 78 5.04 7 2.2 2.3
4 Poles
1 hp (750W) 1390 2 0.76 74.5 5.15 6 2.3 2.3
1.5 hp (1100W) 1400 2.8 0.78 78 7.50 6.5 2.3 2.3
2 hp (1500W) 1400 3.7 0.79 79 10.25 6.5 2.3 2.3
6 Poles
1 hp (750W) 910 2.3 0.7 72.5 7.87 5.5 2 2.2
1.5 hp (1100W) 910 3.2 0.72 73.5 11.54 5.5 2 2.2
2 hp (1500W) 940 4 0.74 77.5 15.24 6 2 2.2

Features

  1. Long shaft induction motor adopts IEC international standard size, which is internationally interchangeable and universal.
  2. The rotating part of long shaft AC induction motor has small inertia, large acceleration torque and short start-stop time. Frequent starting and stopping the machine can improve work efficiency.
  3. Long shaft induction motor has low vibration and low noise. The mechanical structure is perfectly designed, and the processing and assembly techniques are excellent. 100% dynamic balance correction, uses high-quality bearings to reduce noise and vibration.
  4. Long shaft induction motor is easy to maintain. High-grade oil-sealed bearings do not need to add or replace lubricating grease.
  5. Long shaft induction motor is small in size and light in weight. The shell is made of ABB and CPG materials, and the shell is stretched, which saves space, is convenient to install, design and construction.
  6. Long shaft AC induction motor uses class F insulation material. The stator coil and insulation materials adopt F grade which is heat-resistant, temperature-resistant and chemical-resistant. Safe and durable, long lifespan. The maximum working temperature can reach 200℃. Vacuum dipping paint treatment prevents the stator coil from regaining moisture.
  7. Protection grade is IP55, dustproof and waterproof, in line with international standards.

Details

180mm Long Shaft Induction Motor Details

1.5 hp 180mm Long Shaft Induction Motor Dimensions (Unit: mm)

  • Ordinary Flange

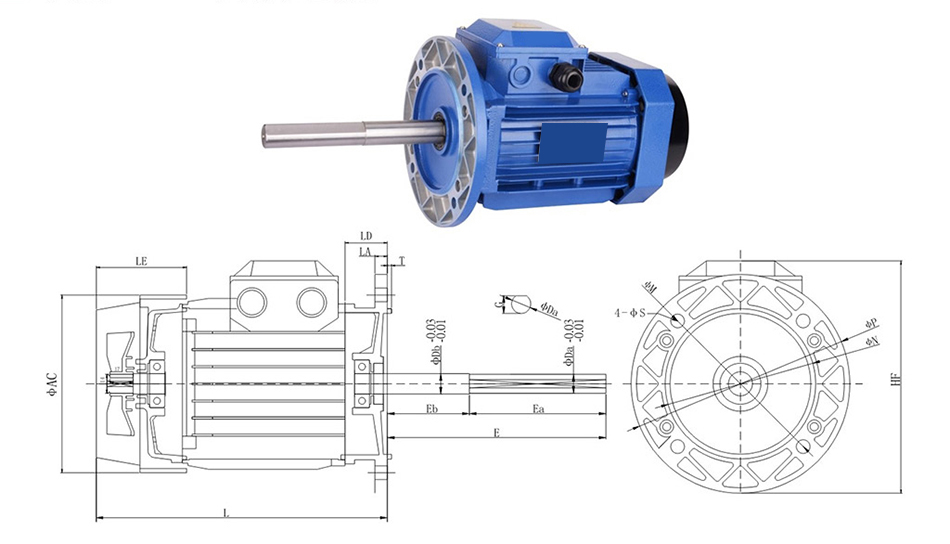

Dimensions of 1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm, Ordinary Flange

Motor Base Center Height Insulation Class Flange Mounting Dimension LA LD LE L Φ AC HF Shaft Dimension Bearing
Φ M Φ N Φ P Φ S T Φ Da Φ Db Ea Eb E G L.S. O.S.
90 F 165 130 200 12 3 12 31 75 258 154 226 24 25 100 80 180 23 6205 6205
  • Heightening Flange

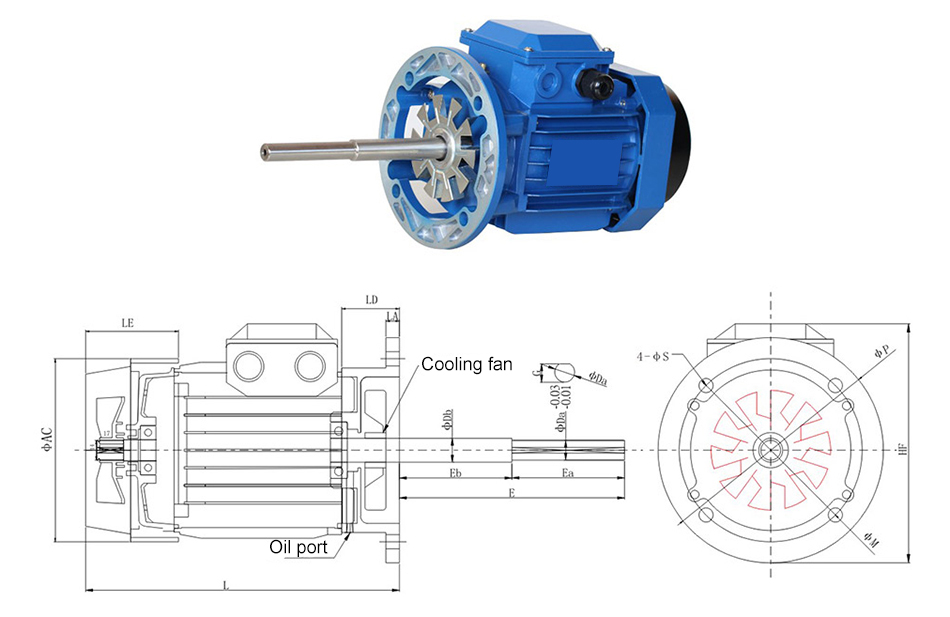

Dimensions of 1.5 hp 180mm Long Shaft Induction Motor, 2800 rpm, Heightening Flange

Motor Base Center Height Insulation Class Flange Mounting Dimension LA LD LE L Φ AC HF Shaft Dimension Bearing
Φ M Φ P Φ S T Φ Da Φ Db Ea Eb E G L.S. O.S.
90 F 165 200 12 - 12 44 75 270 154 226 24 25 100 80 180 22.5 6205 6205
