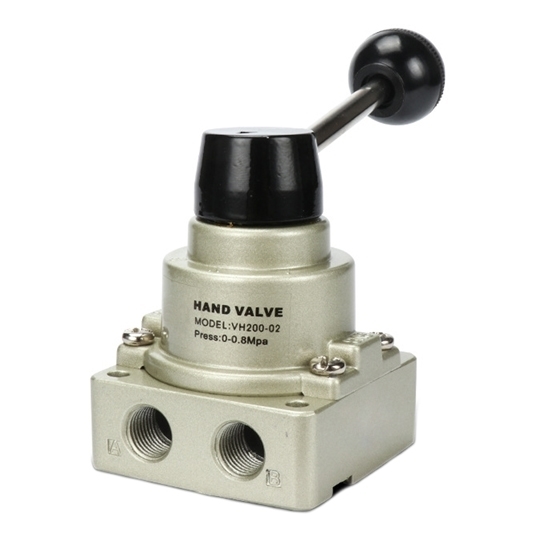

G1/4" Hand Lever Valve, 4 Way, 2 Position

5 out of 5 based on 3 reviews | Write a review

$48.79

Factory price hand lever direct acting valve is 4 way 2 position with manual return operation, G1/4 inch port, which can be used to operate pneumatic cylinders. The manual lever can control the movement of the spool, which allowing the air to pass.

SKU: ATO-VALVE-14

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

1/4 inch hand operated lever valve is used in air chucks, pneumatic actuators, venturi vacuum generators and other pneumatic equipment which need manual operation.

Specification

Model		ATO-VH200-02
Working Media		Compressed Air
Action Mode		Direct-acting Type
Position		4/2 Port (4 Way, 2 Position)
Port		G1/4
Lubrication		No Need
Working Pressure		0.8MPa
Proof Pressure		1.0MPa
Working Temperature		5 ~ 60℃
Material	Body	Aluminum Alloy
	Seal	NBR

Wiring Diagram

Wiring Diagram of 4 Way 2 Position Pneumatic Hand Lever Valve

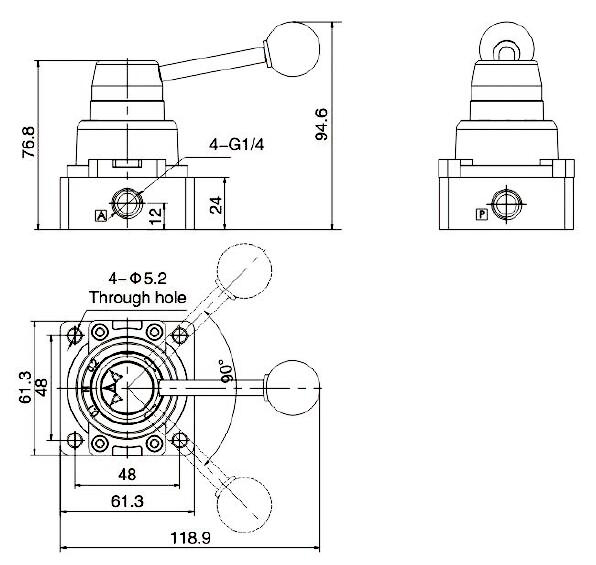

Dimensions (Unit: mm)

Dimensions of 4 Way 2 Position Pneumatic Hand Lever Valve

Tips:

The hand lever air valve is a control part in the pipeline fluid conveying system. It is used to change the passage section and the flow direction of the medium. It has the functions of diversion, cut-off, adjustment, throttling, check, shunt or overflow and pressure relief. It is used for fluid control, and the nominal diameter is up to 10m. The manual valve can act according to predetermined requirements under the action of pressure, temperature or other forms of sensing signals, or simply open or close without relying on the sensing signal. It relies on the drive or automatic mechanism to make the opening and closing parts lift and slide. , pendulum or rotary motion, so as to change the size of its flow channel area to achieve its control function.

Existing reviews of G1/4" Hand Lever Valve, 4 Way, 2 Position

Excellent quality, worked perfect!

Great pneumatic hand lever valve, works perfectly every time. If you want precise and effective control of your pneumatics this is an excellent value for the price. Happy with this product and I would buy it again.

From: Leland | Date: 23/05/2022

Was this review helpful? Yes No (0/0)

Sturdy hand valve

The overall quality of the hand valve seems to be pretty good, and the positioning is accurate. I used it in a higher than rated pressure application and it was leaking from the valve until I adjusted the pressure to within their advertised specs.

From: Yusuf | Date: 05/05/2022

Was this review helpful? Yes No (0/0)

Excellent value

This seems like a well_built valve. I use it to control pnematic yard equipment that I have fabricated. Works perfectly, especially once a regular was installed to keep the pressure where it needed to be.

From: Owen | Date: 15/04/2022

Was this review helpful? Yes No (0/0)

Load more reviews...
