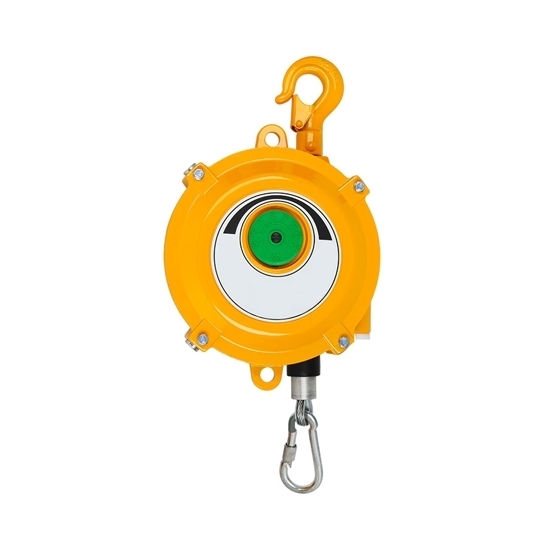

Factory price retractable spring balancer allows the user to easily adjust the length of the hanging cable, enabling the object to be positioned at the desired height and preventing it from falling or causing strain on the operator.
Specification
Model |
ATO-EW-3.0 |
Load Capacity |
Min. |
1kg |
Max. |
3kg |
Wire Rope |
Length |
1.5m |
Diameter |
3mm |
Weight |
1.43kg |
Details
Tips: What is a retractable spring balancer?
A retractable spring balancer is a mechanical device designed to support and balance the weight of suspended tools or equipment. It consists of a metal housing containing a coiled spring, a cable or wire rope, and a hook or attachment point. The spring inside the housing is tensioned to counterbalance the weight of the object being suspended.
When the tool or equipment is attached to the hook, the spring balancer adjusts the tension in the spring, allowing the object to be easily moved up or down with minimal effort. The tension is adjusted by either changing the position of the attachment point on the spring balancer or by adding or removing tension springs.
Spring balancers are commonly used in industrial settings, workshops, and assembly lines where heavy tools or equipment need to be handled and positioned precisely. They help reduce operator fatigue and improve safety by providing a constant force to support the weight, allowing for smooth and controlled movement.
