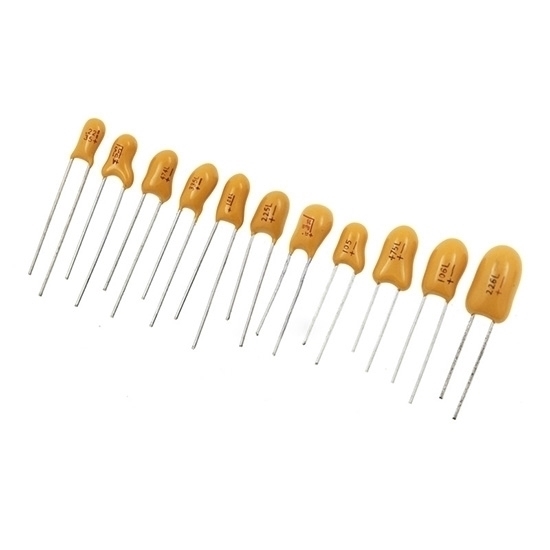

1μF 35V DIP Tantalum Capacitor

1μF 35V tantalum capacitor is small in size, easy to carry and operate. The capacity error of 1uf tantalum capacitor is small, so it can be more accurate in operation.

Features:

• Small volume and small capacity error
• Wide temperature range, high temperature resistance
• Long life, high insulation resistance, small leakage current
• Equivalent series resistance (ESR) has good high frequency performance

Specification:

• Model: ATO-TC-1UF35DIP
• Capacitance: 1μF
• Rated Voltage: 35V
• Type: DIP
• Equivalent Series Resistance (ESR): 1
• Tolerance: 10%
• Working Temperature: -40 ℃— +125 ℃
• Lead Spacing: 1 mm
• Net Size: 1 mm
• Height Mounting (Maximum): 1 mm

DIP Tantalum Capacitor Dimension: (Unit: mm)

SMD Tantalum Capacitor Dimension: (Unit: mm)

L= 3.2, S= 0.8, W₁= 1.6, W₂= 1.2, H= 1.6

Tips: What is Tantalum Capacitor?

Tantalum capacitors are a subtype of electrolytic capacitors. They are made of tantalum metal which acts as an anode, covered by a layer of oxide which acts as the dielectric, surrounded by a conductive cathode. The use of tantalum allows for a very thin dielectric layer. This results in a higher capacitance value per volume, superior frequency characteristics compared to many other types of capacitors and excellent stability over time. Tantalum capacitors are generally polarized, which means that they may only be connected to a DC supply observing the correct terminal polarity. Most often in the form of surface mounted devices (SMD).
