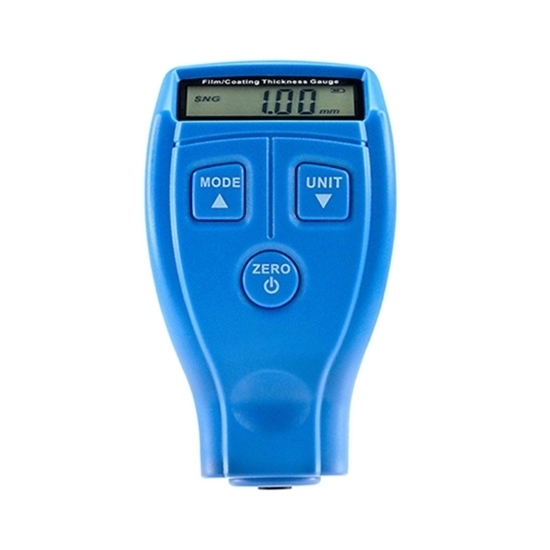

0-1800 μm Digital Coating Thickness Gauge

Wholesale price paint thickness tester for sale online. It is a measuring tool with the range of 0-1800μm & ±0.1mm measurement error and can be applied to non-destructive, rapid and high-precision coating thickness measurement areas. Coating thickness gauge can make three measurements in three ways: single measurement, continuous measurement, and different value measurement.

Specifications

• Model:  ATO-GM200A
• Measuring Range: 0-1800μm
• Car Mode Resolution: 0.05mm/2mil
• User Mode Resolution: 0.01mm/1mil
• Measurement Error: ±(3%H+1μm)
• Minimum Diameter Of Substrate: 50mm
• Minimum Thickness Of Substrate: 0.5mm
• Temperature Range: 18-30℃
• Working Humidity Range: 10-80%RH
• Power Supply: 2*1.5V AAA Batteries
• Dimension: 105mm*31mm*62mm
• Package Weight: 0.2kg

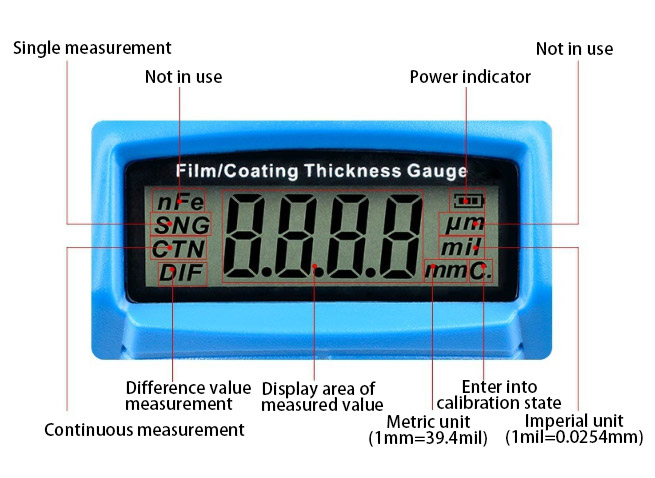

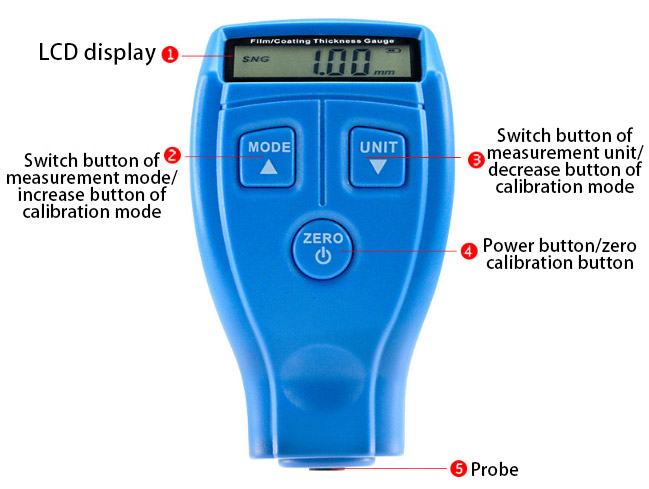

0-1800μm Coating Thickness Gauge Details

Tips: Coating thickness gauge troubleshooting

The display value of the dry film thickness gauge is unstable. The display value of the paint thickness gauge is unstable, mainly due to the particularity of the material and structure of the workpiece itself. For example, whether the workpiece itself is a magnetic material, if it is a magnetic material, we must choose a magnetic coating thickness gauge. If the workpiece is a conductor, we have to choose an eddy current coating thickness gauge. In addition, the surface roughness and attachments of the workpiece are also one of the reasons for the instability of the display value of the car paint thickness gauge, such as excessive surface roughness of the workpiece and too many surface attachments. The method of troubleshooting is to smooth the workpiece with relatively large roughness and remove the attachment.
The measurement result error is too large. The main reasons for the large measurement error of the coating thickness meter are Base metal magnetization, too small base metal thickness, edge effects, too small curvature of the workpiece, excessive surface roughness, magnetic field interference, and incorrect placement of the probe, etc.
The paint thickness gauge does not display numbers. Check whether the battery is fully charged. If the measurement still does not display the value after determining that the battery is fully charged, consider replacing the paint thickness meter with a new one.
